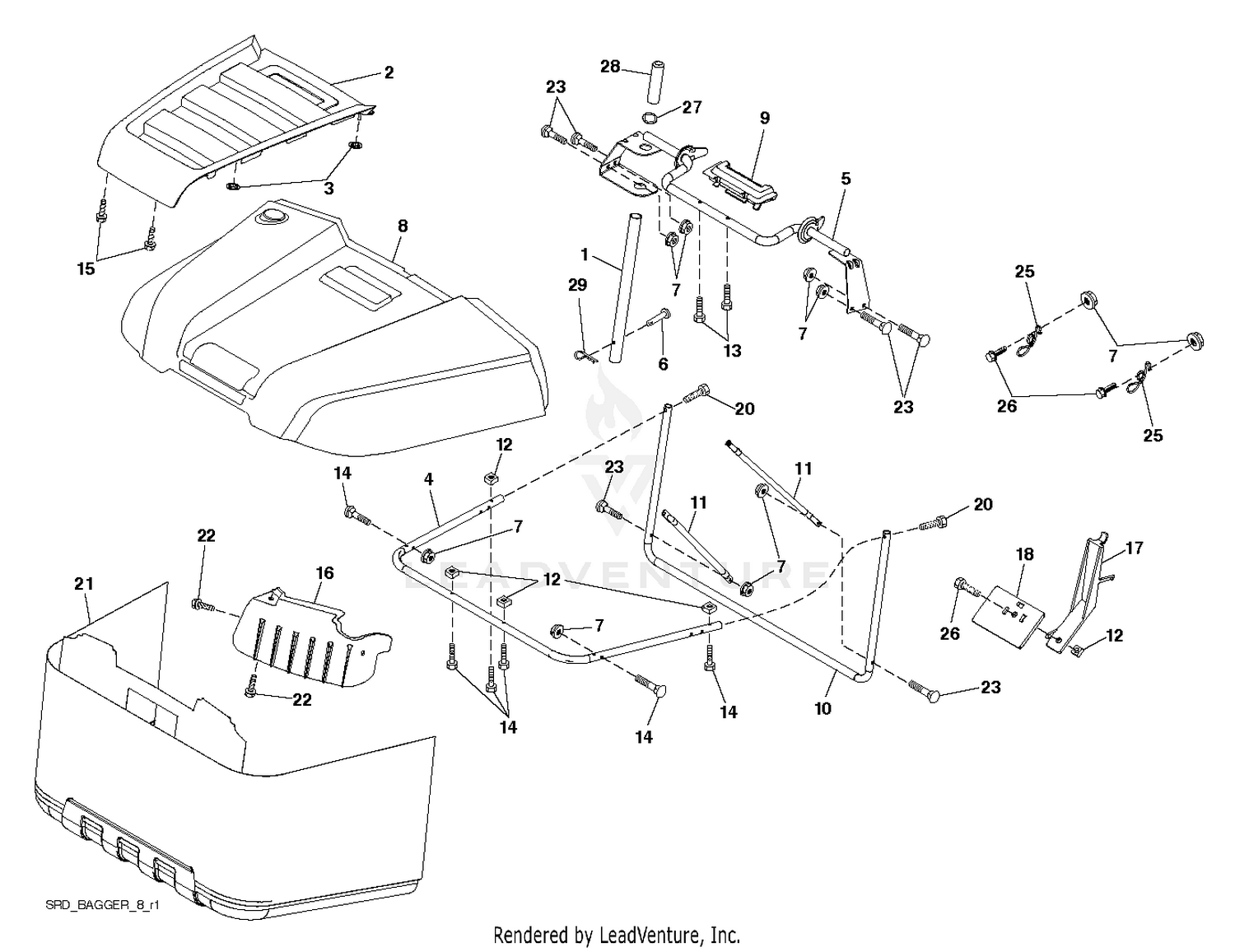

| Ref | Part Number | Description |
|---|
| 1 |
531151701 |
SERVICE KIT TUBE TUBE.HANDLE.B This part replaces 532428610. Price: $14.99 |
| 1 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 2 |
2412-133 |
CLAMP-R Price: $3.19 |
| 2 |
532441358 |
APPLIQUE.TOP.BAG.SRD.ORANGE Price: $34.99 |
| 3 |
108-6703 |
ADJUSTER-SEAT This part replaces 66-8530. Price: $183.47 |
| 3 |
583343001 |
NUT.PUSH.156 This part replaces 532413808. Price: $2.99 |
| 4 |
579785402 |
BAGGER SWAGE TUBE HANDLE ASSY This part replaces 532439612. Price: $44.99 |
| 4 |
82-9060 |
DISCONTINUED Price: Call Us |
| 5 |
583365901 |
FRAME.ASM.TOP.BAGGER.SRD This part replaces 532417632. Price: $89.99 |
| 5 |
71-2410 |
PLATE-SUSPENSION, UPPER Price: $198.33 |
| 6 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 6 |
71-2400 |
DISCONTINUED Price: Call Us |
| 7 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 7 |
71-2380 |
WASHER Price: $1.22 |
| 8 |
583503801 |
SRD.BAGGER.TOP.SUB.ASM This part replaces 532441261. Price: $119.99 |
| 8 |
71-2390 |
RIVET-POP Price: $2.47 |
| 9 |
323-6 |
SCREW-HH Price: $0.66 |
| 9 |
583365801 |
INSERT.HANDLE.BAGGER.SRD This part replaces 532417629. Price: $22.99 |
| 10 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 10 |
532417190 |
FRAME.FRONT.SRD.BAGGER Price: $54.99 |
| 11 |
532417188 |
TUBING.BRACE.BAGGER.SRD.BLACK Price: $19.99 |
| 11 |
83-6660-03 |
SEAT BRACKET SUPPORT ASM This part replaces 83-6660. Price: $234.45 |
| 12 |
107-1188 |
SEAT SUSPENSION This part replaces 71-2420. Price: $951.87 |
| 12 |
583391701 |
NUT.SQUARE.1/4 This part replaces 532421793. Price: $3.99 |
| 13 |
39-5710 |
PLUG-PLASTIC Price: $8.50 |
| 13 |
583391201 |
SCREW.1/4X1.150.HXWSH This part replaces 532421780. Price: $2.99 |
| 14 |
40-3890 |
TRIM Price: $89.47 |
| 14 |
583392001 |
BOLT.SHOULDER.HX.WSH.1/4X1.150 This part replaces 532421800. Price: $6.99 |
| 15 |
33115-025 |
SCREW-HH This part replaces 48-7780. Price: $0.61 |
| 15 |
583392101 |
SCREW,#8.FLAT.HEAD.DRILL.TIP This part replaces 532421801. Price: $3.99 |
| 16 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 16 |
532421566 |
DEFLECTOR.BAGGER.SRD Price: $12.99 |
| 17 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 17 |
532421749 |
LEVER.BAGGER.FULL.SRD.BLACK Price: $9.99 |
| 18 |
32121-4 |
PIN-ROLL, SLOTTED Price: $3.49 |
| 18 |
583391001 |
PADDLE.BAGGER.FULL.SRD.BLACK This part replaces 532421750. Price: $9.99 |
| 19 |
27-4720 |
SHAFT-PIVOT, SEAT Price: $32.27 |
| 20 |
585368801 |
SCREW.HEXCAP.1/4-20X1.375(2 2) Price: $2.99 |
| 21 |
583825601 |
BAG.ASM.BAGGER.SRD.HUSQVA.GREY This part replaces 532429981. Price: $129.99 |
| 22 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 23 |
872040410 |
BOLT Price: $3.99 |
| 25 |
583389801 |
SPRING.LATCH.BAGGER.SRD (3 2) This part replaces 532421614. Price: $3.99 |
| 27 |
583387201 |
GROMMET.RUBBER.SRD This part replaces 532421262. Price: $3.99 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 29 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $2.99 |
