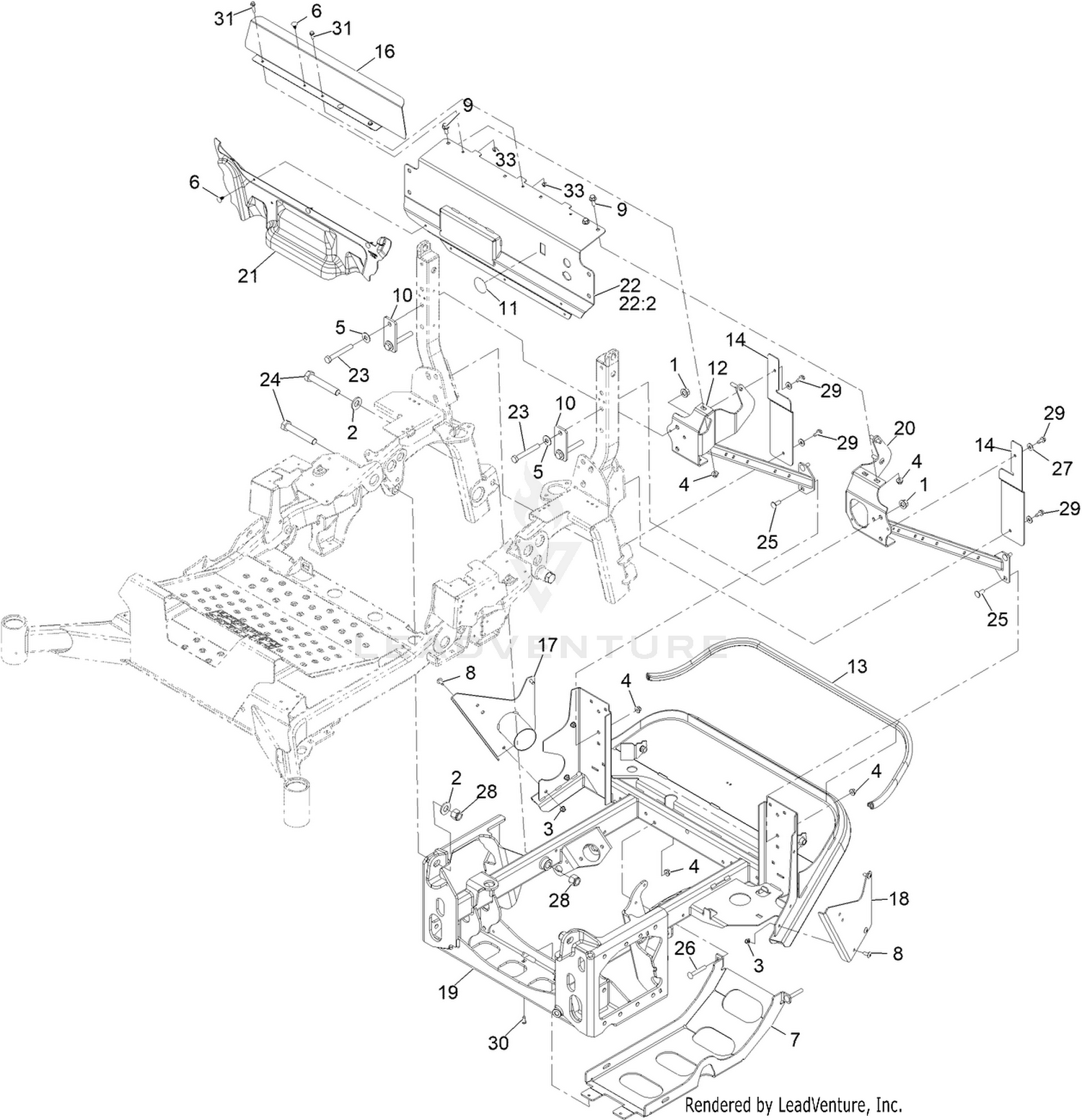

Power Frame Assembly
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 99-5107 | Nut-Lock 1/2-13 Price: $1.69 |
| 2 | 103-2802 | WASHER Price: $4.79 |
| 3 | 104-8300 | NUT-HF, NI Price: $0.89 |
| 4 | 104-8301 | NUT-HF, NI Price: $1.19 |
| 5 | 109-9505 | WASHER-SPRING Price: $4.79 |
| 6 | 117-2382 | PLUG-PLASTIC Price: $0.59 |
| 7 | 126-5922-03 | PLATE-SKID Price: $184.99 |
| 8 | 126-6268 | SCREW-TORX Price: $1.39 |
| 9 | 131-2220 | SCREW-HHF Price: $1.29 |
| 10 | 135-0412-03 | PLATE-SPACER Price: $6.49 |
| 11 | 135-3728 | DECAL-COVER Price: $2.89 |
| 12 | 142-2353-03 | WLDMT-ROPS RH BRACE Price: $297.99 |
| 13 | 142-3172 | SEAL-BULB Price: $61.99 |
| 14 | 142-3197 | SHEET-ROPS AIRDAM Price: Call Us |
| 16 | 142-7218-03 | SHIELD-AIR Price: $35.99 |
| 17 | 142-5785 | PLATE-EXHAUST Price: Call Us |
| 18 | 142-5788-03 | PLATE-BATTERY COVER Price: Call Us |
| 19 | 142-5154-03 | FRAME, POWER [BLACK] Price: Call Us |
| 20 | 142-5163-03 | WLDMT-ROPS LH BRACE Price: $297.99 |
| 21 | 142-5165 | PANEL-HEAT DEFLECTOR Price: Call Us |
| 22 | 142-8745 | CHANNEL-CROSS, ASM Price: Call Us |
| 23 | 325-35 | SCREW-HH Price: $10.99 |
| 24 | 328-8 | SCREW-HH Price: $13.99 |
| 25 | 3231-22 | SCREW-CARR Price: $3.09 |
| 26 | 3231-44 | SCREW-CARR Price: $2.39 |
| 27 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 28 | 3296-51 | NUT-LOCK, NI Price: $5.99 |
| 29 | 32144-70 | Screw-HWH 5/16-18 X 3/4 Tf Price: $2.29 |
| 30 | 138-9753 | SCREW Price: $1.19 |
| 31 | 115-5103 | SCREW-HHF Price: $0.59 |
