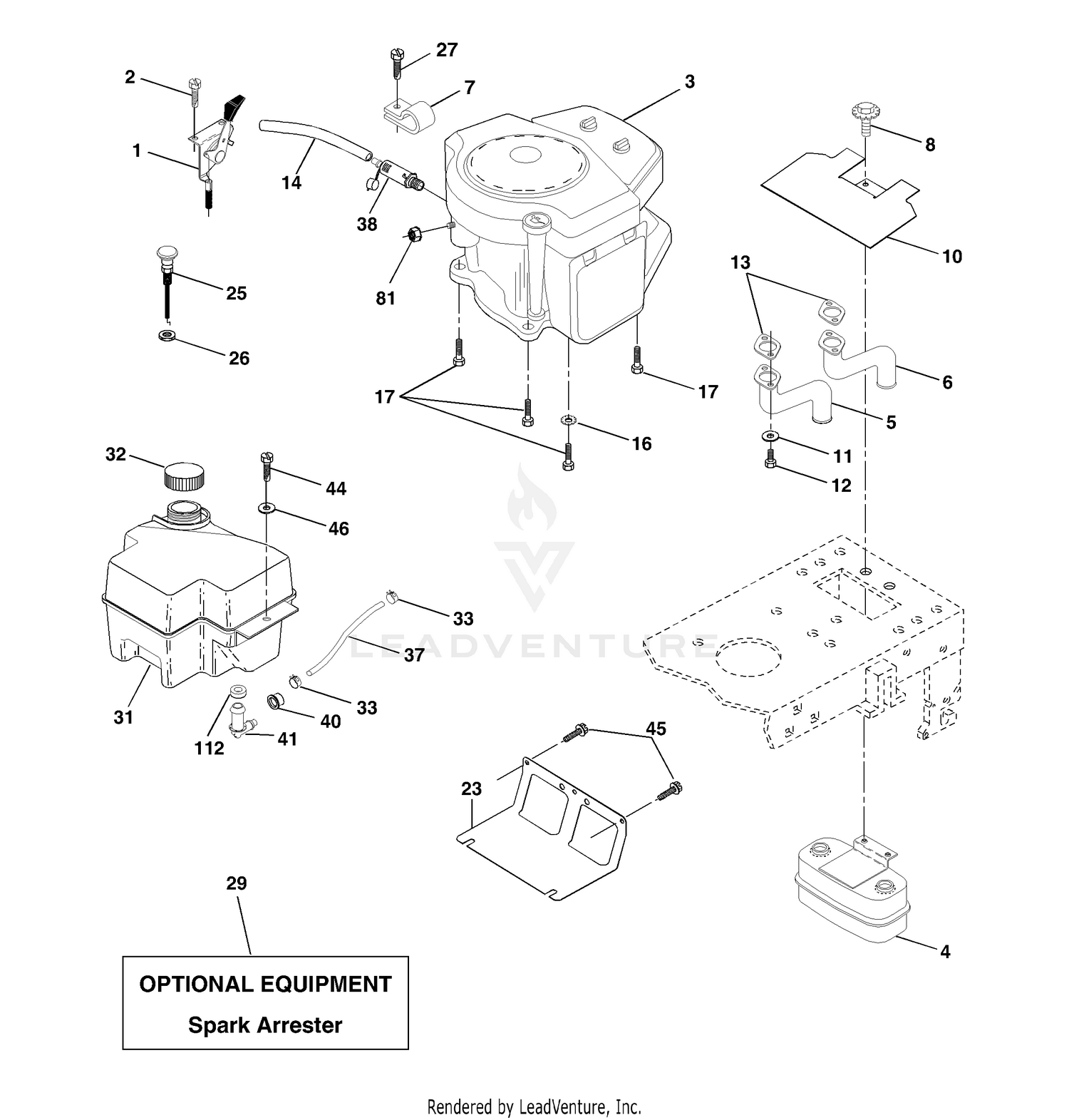

| Ref | Part Number | Description |
|---|
| 1 |
170771 |
Control Throt Price: Call Us |
| 1 |
21-0230 |
PULLEY-PTO Price: $409.71 |
| 2 |
17720408 |
Screw Hex Thd Cut 1/4-20x5/8 T Price: Call Us |
| 2 |
43-5630 |
YOKE-PTO Price: $80.75 |
| 3 |
3219-3 |
NUT-HEX Price: $0.34 |
| 4 |
149723 |
Muffler Exhaust Price: Call Us |
| 4 |
27-7900 |
SCREW-ADJUSTING Price: $21.70 |
| 5 |
159955 |
Exhaust Asm. Lh Price: Call Us |
| 5 |
3256-41 |
WASHER Price: $1.18 |
| 6 |
160589 |
Exhaust Asm. Rh Price: Call Us |
| 6 |
43-5540 |
SHAFT-PTO Price: $846.33 |
| 7 |
138129 |
Clamp Tube Double Engine Price: Call Us |
| 8 |
171877 |
Bolt 5/16-18unc x 3/4 w/sems Price: Call Us |
| 9 |
3296-6 |
NUT-LOCK Price: $1.49 |
| 10 |
162797 |
Heat Shield Lt Price: Call Us |
| 11 |
100-6599 |
PTO PIVOT ASM Price: $780.32 |
| 11 |
10040500 |
Washer Lock Hvy. Helical 1/4 Price: Call Us |
| 12 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 12 |
71070512 |
Screw Hex Hd Cap 5/16-18 x 3/4 Price: Call Us |
| 13 |
165391 |
Gasket Muffler Price: Call Us |
| 13 |
3254-7 |
WASHER-LOCK, INT Price: $4.82 |
| 14 |
148456 |
Tube Drain Oil Easy Price: Call Us |
| 14 |
3219-7 |
NUT-HEX Price: $1.53 |
| 15 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 16 |
11050600 |
Washer Lock Ext Tooth 3/8 Price: Call Us |
| 16 |
92-4058-01 |
ARM PTO This part replaces 92-4058. Price: $136.94 |
| 17 |
17060624 |
Screw 3/8-16x1-1/2 Price: Call Us |
| 17 |
3246-3 |
SCREW-HSH Price: $12.70 |
| 18 |
43-5550 |
SHAFT-ACTUATOR, PTO Price: $143.65 |
| 19 |
43-5570-01 |
ARM-ACTUATOR This part replaces 43-5570. Price: $164.96 |
| 20 |
251-252 |
BEARING Price: $98.35 |
| 21 |
32120-22 |
RING-SNAP, INTERNAL Price: $2.29 |
| 22 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 23 |
169837 |
Shield BRN/DBR Guard Price: Call Us |
| 25 |
145996 |
Control Choke Price: Call Us |
| 26 |
5-0652 |
SPACER Price: $5.35 |
| 26 |
73920600 |
Nut Keps 3/8-24 Unf Price: Call Us |
| 27 |
152927 |
Screw Price: Call Us |
| 29 |
137180 |
Arrestor Spark Price: Call Us |
| 31 |
180645 |
Tank Fuel Price: Call Us |
| 32 |
140527 |
Cap Fuel Price: Call Us |
| 33 |
123487X |
Clamp Hose Blk Price: Call Us |
| 37 |
137040 |
Line Fuel Price: Call Us |
| 38 |
148315 |
Plug Drain Oil Easy Price: Call Us |
| 40 |
124028X |
Bushing Snap Nyl Black Price: Call Us |
| 41 |
139277 |
Stem Tank Fuel Price: Call Us |
| 44 |
17670412 |
Screw Hexwsh Thdrol 1/4-20 x 3/4 Price: Call Us |
| 45 |
17000612 |
Screw Hex wsh Thdrol 3/8-16 x 3/4 Price: Call Us |
| 46 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
| 81 |
73510400 |
Nut Keps Hex 1/4-20 Unc Price: Call Us |
