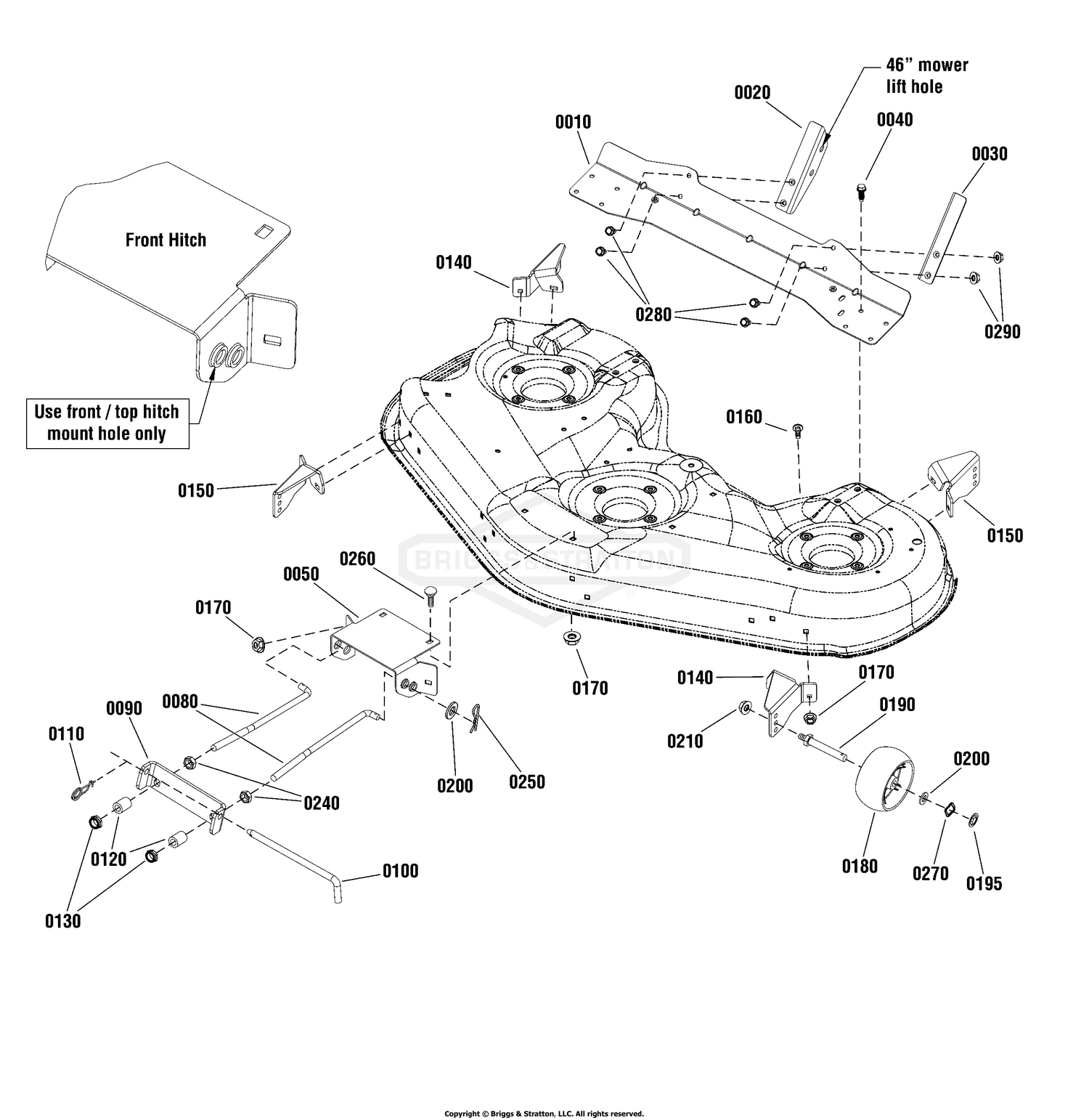

| Ref | Part Number | Description |
|---|
| 0010 |
1736070BMYP |
SUPPORT, Rear Cross Price: $77.11 |
| 0020 |
1736072AYP |
BRACKET, Rear Mower Pickup Price: $17.32 |
| 0030 |
1736073AYP |
BRACKET, Rear Mower Pickup Price: $10.26 |
| 0040 |
703228 |
SCREW, 5/16-18 X .75 Price: $3.94 |
| 0050 |
1736071BMYP |
HITCH, FRONT Price: $27.77 |
| 0080 |
1736081YP |
ROD, Front Bail Price: $12.01 |
| 0090 |
1737059AYP |
HANGER, Front Mower Price: $16.22 |
| 0100 |
1731414SM |
ROD, Latch, 1/2 x 9 Price: $13.82 |
| 0110 |
703852 |
PIN, 5/16 X 0.375 Price: $3.94 |
| 0120 |
1679166SM |
SPACER, 1/2 x 7/8 x 1 3/16 Price: $6.68 |
| 0130 |
1960379SM |
NUT, Hex Lock, 1/2-13 Price: $4.38 |
| 0140 |
1736074BMYP |
BRACKET, GAUGE WHEEL Price: $14.25 |
| 0150 |
1736075BMYP |
BRKT, GAUGE WHEEL, LH Price: $13.15 |
| 0160 |
704065 |
BOLT, 5/16-18X.875 Price: $3.61 |
| 0170 |
703409 |
NUT, 5/16-18, GR5 Price: $4.92 |
| 0180 |
1736896YP |
WHEEL, GAUGE Price: $15.78 |
| 0190 |
1736539YP |
BOLT, SHOULDER Price: $7.88 |
| 0195 |
705437 |
PUSHNUT, 1/2 Price: $3.94 |
| 0200 |
703853 |
WASHER, 0.516IDX1OD Price: $4.49 |
| 0210 |
703893 |
NUT, CNTR LCK, 3/8-16 Price: $5.91 |
| 0240 |
1913744SM |
NUT, Hex Jam, 1/2-13 Price: $4.26 |
| 0250 |
703300 |
PIN, 3/32 X 1.6 Price: $3.50 |
| 0260 |
703185 |
BOLT, Round Head, Short Square Neck Price: $2.87 |
| 0270 |
0020X3MA |
WASHER,SPRING .52X.99 Price: $3.82 |
| 0280 |
703354 |
SCREW, 5/16-18 Price: $4.70 |
