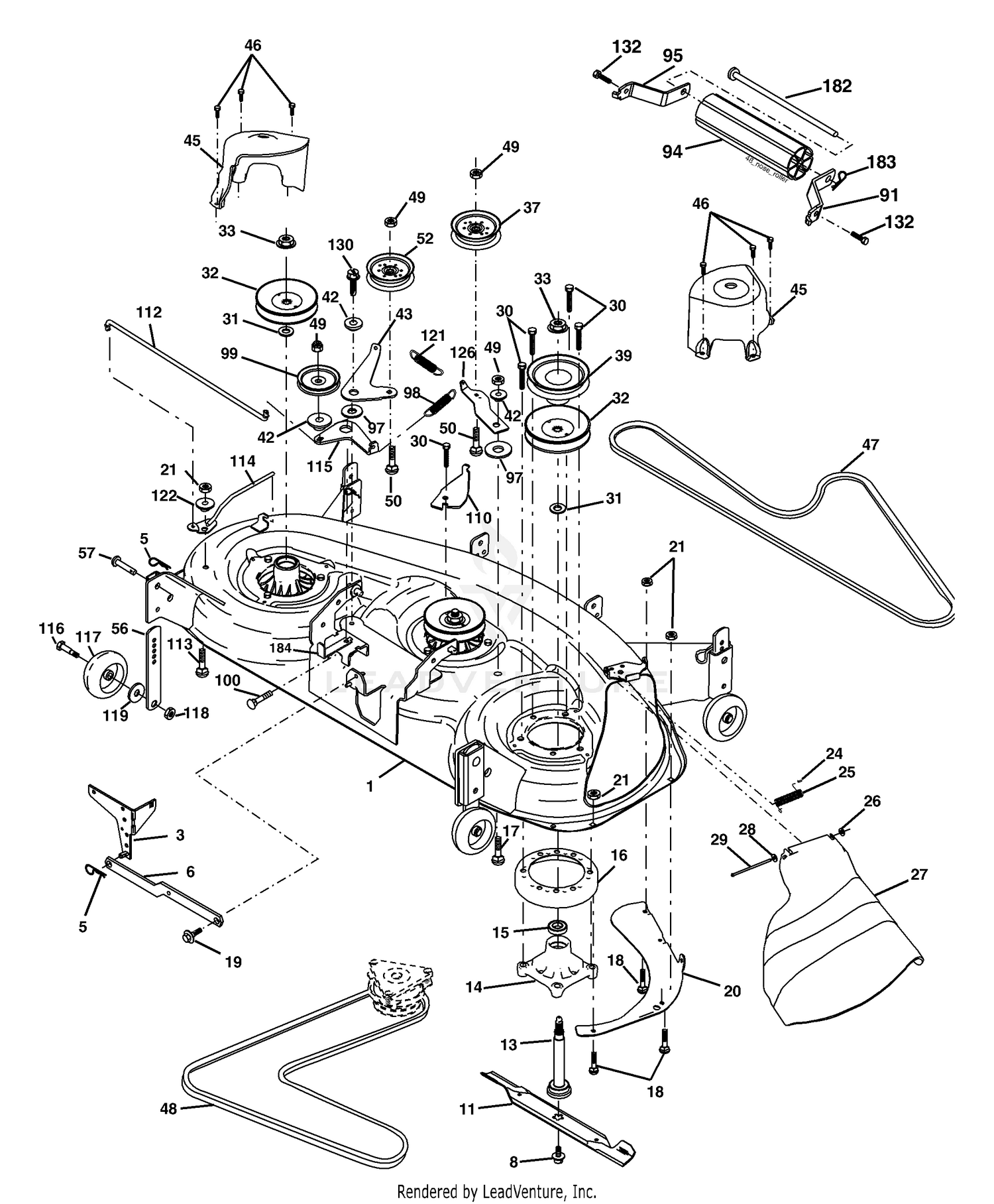

Mower Deck

Mower Deck

Parts (75)

RefPart NumberDescription
1 532184233 KIT.DECK.SERV.48" This part replaces 532180358. Price: $326.99
3 532178915 Bracket Asm., Sway Bar Price: $20.99
5 532085902 RETAINER SPRING This part replaces 532124670. Price: $1.99
6 532178024 Bar Sway Deck Price: $5.99
8 532193003 BOLT, BLADE This part replaces 532174365. Price: $5.99
10 98-9596 JOINT-EYE Price: $18.69
11 532180054 Blade Price: $12.99
13 532174360 Shaft Asm. w/Lower Bearing Price: $37.99
14 532174358 Mandrel Asm. Price: $22.99
15 532110485 Bearing, Ball, Mandrel Price: $7.99
16 532174493 Stripper Mandrel Deck Price: $3.99
17 872140614 BOLT This part replaces 872110610. Price: $2.99
18 872140505 Bolt, Carriage 5/16-18 x 5/8 Price: $2.69
19 532132827 Bolt, Hex Hd, Shoulder 5/16-18 Price: $2.99
20 532174378 Baffle, Vortex Mower Price: $8.99
21 873800500 Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69
24 532105304 Cap, Sleeve Price: $2.99
25 539107609 SPRING.TORSION This part replaces 532178102. Price: $1.99
26 532110452 Nut, Push Price: $1.99
27 532180655 DEFLECTOR.ASM.BLACK.48" This part replaces 532181707. Price: $29.99
28 734116301 WASHER - 15X7.3X1.6 This part replaces 819111016. Price: $2.02
29 532131491 Rod, Hinge Price: $1.99
30 532173984 Screw, Thdroll Washer Head Price: $2.99
31 532187690 Washer, Spacer Price: $1.99
32 532173436 Pulley, Mandrel Price: $7.99
33 532400234 NUT, LOCK This part replaces 532178342. Price: $3.99
37 532177968 Pulley, Idler, Flat Price: $14.99
39 532174375 Pulley, Idler, Driven Price: $22.99
42 532165723 Spacer Retainer This part replaces 532122052. Price: $2.99
43 532174373 Arm, Idler Secondary Price: $8.99
45 532180806 Cover, Mandrel Deck Price: $11.99
46 532137729 Screw, Thdroll. 1/4-20 x 5/8 Price: $2.49
48 532174368 V-Belt, Mower, Primary Price: $35.99
49 532409148 NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69
50 872110612 Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5 Price: $3.99
50 98-9643 INJECTION PUMP ASM Price: $2,551.99
52 532175820 Pulley Idler Flat Price: $19.99
56 532155986 Bar Pnt Adj. Price: $5.99
57 532156941 Pin Head Rivet Price: $2.99
60 98-9456 SHIM-INJECTION (0.20MM) Price: $7.29
60 98-9457 SHIM-INJECTION (0.25MM) Price: $8.40
70 98-9458 SHIM-INJECTION (0.30MM) Price: $12.10
80 98-9361 BOLT-HSH Price: $0.76
90 98-9438 STUD Price: $1.33
91 532180535 Bracket Asm N Roller RH Price: $2.99
94 532176066 Roller Nose 48" Price: $6.99
95 532180534 Bracket Asm N Roller LH Price: $2.99
97 532178515 Washer Hardened Price: $2.99
98 532179479 Spring Primary Drive Price: $2.99
99 532193195 PULLEY.V.IDLER This part replaces 532184058. Price: $37.99
100 872110616 Bolt RDHD Sqnk 3/8-16 unc x 2 Price: $3.99
100 98-9440 NUT-CAP Price: $18.34
110 532175016 Arm Spring Secondary Price: $3.99
110 98-7699 WASHER-SPRING Price: $0.44
112 532174387 Link Tension Relief Lever Price: $12.99
113 872110506 Bolt Carr. 5/16-18 x 3/4 Price: $3.99
114 532174384 Tension Asm. Relief Lever Price: $7.99
115 532174609 Arm Spring Tension Relief Price: $3.99
116 532193406 BOLT.SHOULDER.3/8-16X3-5/8 This part replaces 532184219. Price: $1.99
117 532133957 Gauge Wheel Price: $9.99
118 873680600 Nut This part replaces 873930600. Price: $1.99
119 734117201 WASHER This part replaces 819121414. Price: $1.99
120 98-9464 BOLT-JOINT Price: $20.48
121 532174371 Spring Secondary Drive Price: $4.99
122 532174606 Bushing Pivot Tension Relief Price: $2.99
126 532174372 Arm, Idler, Primary Deck Price: $8.99
130 817000616 Screw 3/8-16 x 1.0 Price: $3.99
130 98-9445 GASKET Price: $1.84
132 817000612 Screw 3/8-16 x 3/4 Price: $2.99
140 98-9430 SCREW Price: $19.45
150 98-9446 GASKET Price: $2.50
160 98-9466 PLUG Price: $12.54
182 532179127 Rod Roller Nose Price: $4.49
183 532003146 SPRING RETAINER This part replaces 532163552. Price: $1.99
184 532173979 Keeper Belt Idler Price: $3.99
