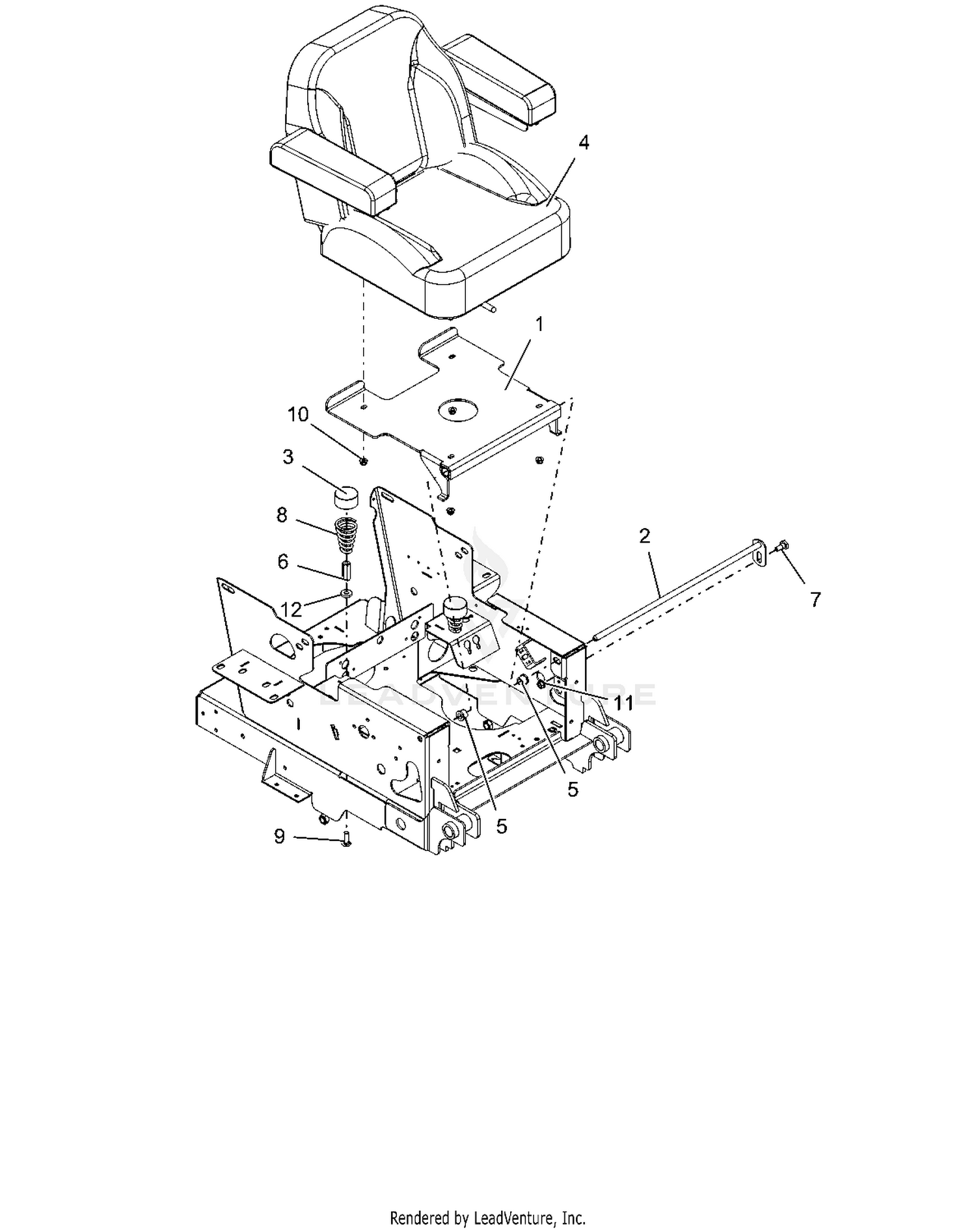

| Ref | Part Number | Description |
|---|
| 1 |
02982751 |
WLDMT, SEAT PLATE Price: $91.95 |
| 2 |
03255700 |
WMT, SEAT SHAFT Price: $40.95 |
| 3 |
00337700 |
HUB CAP Price: $2.45 |
| 4 |
04817700 |
SEAT, SK250 COOL GRAY W/ARMS Price: $459.95 |
| 5 |
05500901 |
BSHG, FLG .516X.750X.625X.937 Price: $5.45 |
| 6 |
06533500 |
NUT COUPLING .375-16X1.75 Price: $3.45 |
| 7 |
07000034 |
BLT,SHLDR EP .38-16X.30 HEX YZ Price: $3.45 |
| 8 |
08300021 |
SPRING, SEAT Price: $18.45 |
| 9 |
06200415 |
BLT, RHSN .38-16X1.25 G5 ZCC This part replaces 06224100. Price: $2.45 |
| 10 |
06500809 |
NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45 |
| 11 |
06500735 |
NUT- SPNLK-FLG .38-16 G5 ZCC This part replaces 06534900. Price: $1.45 |
| 12 |
06401108 |
WSHR, FLT .406X1.00X.188 ZCC This part replaces 06444000. Price: $2.45 |
