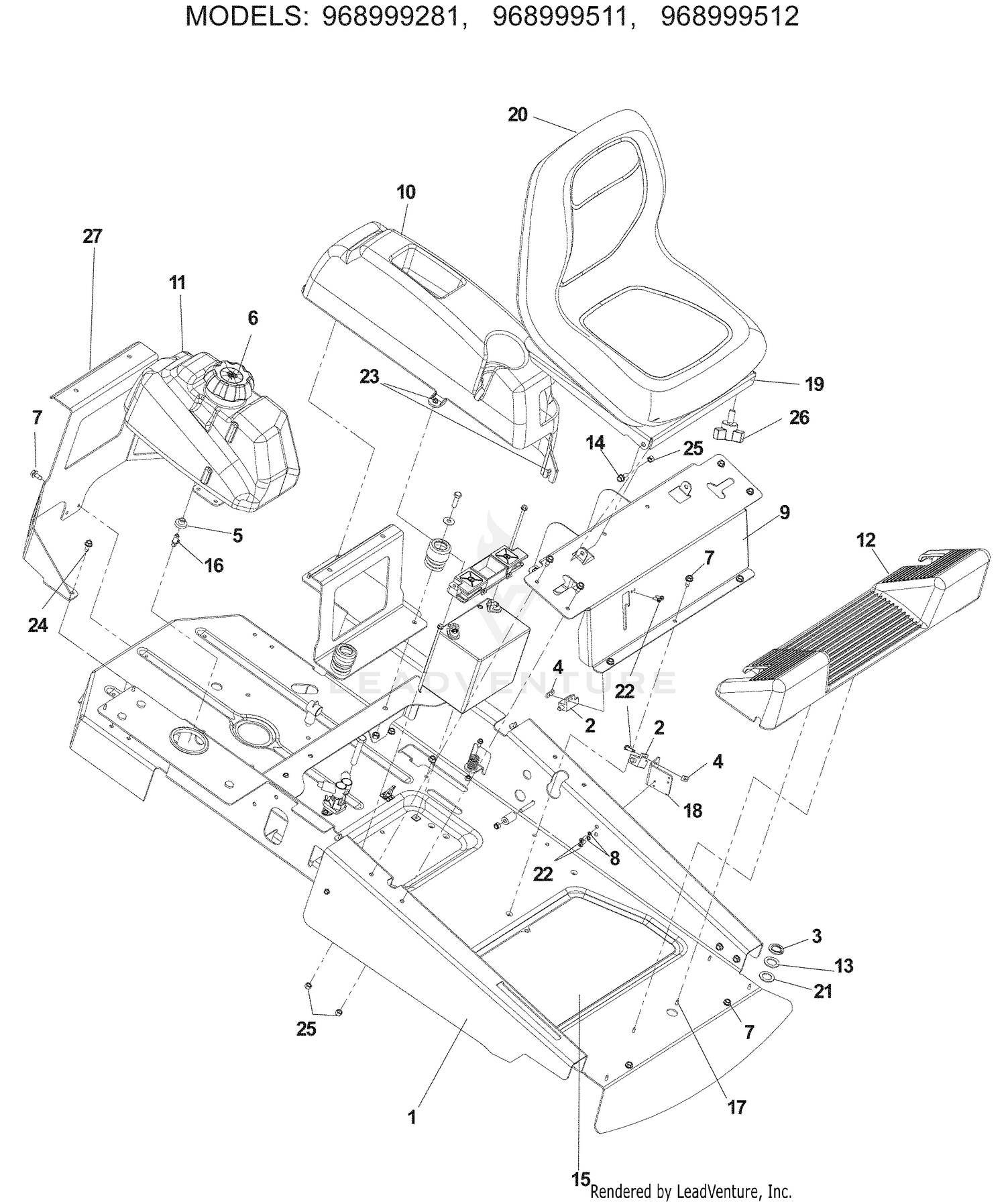

| Ref | Part Number | Description |
|---|
| 1 |
136-8483 |
FRAME-PULL, RH This part replaces 92-9177. Price: $382.66 |
| 1 |
539110115 |
CHASSIS W/DECALS Price: $799.99 |
| 2 |
3220-3 |
NUT-HJ Price: $0.28 |
| 2 |
539101080 |
SWITCH, INTERLOCK Price: $14.99 |
| 3 |
539101151 |
RETAINING RING, 7/8" Price: $1.99 |
| 4 |
147-3120 |
BALL JOINT RECEIVER ASM This part replaces 8-7710. Price: $16.35 |
| 4 |
539102678 |
TAPPED PLATE Price: $12.99 |
| 5 |
539105245 |
RUBBER GROMMET Price: $3.99 |
| 6 |
539130394 |
FUEL CAP, GENERIC This part replaces 539106188. Price: $27.99 |
| 7 |
539107475 |
BOLT 5/16-18 X 3/4 Price: $4.99 |
| 8 |
596987301 |
Washers This part replaces 539109552. Price: $2.99 |
| 8 |
62-2420-01 |
BAR ASM-LIFT, CTR ARM This part replaces 62-2420. Price: $70.22 |
| 9 |
539110199 |
SEAT SUPPORT W/DECALS This part replaces 539110131. Price: $499.99 |
| 9 |
63-8750 |
PIN-PIVOT Price: $4.20 |
| 10 |
105-3823 |
HYD CYLINDER ASM This part replaces 83-7230. Price: $493.03 |
| 10 |
539130374 |
FENDER, LT This part replaces 539110251. Price: $74.99 |
| 11 |
237-21 |
O-RING This part replaces 237-35. Price: $0.70 |
| 11 |
539110252 |
FUEL TANK Price: $74.99 |
| 12 |
340-103 |
FITTING-HYD, 45 DEG Price: $36.92 |
| 12 |
539110284 |
FOOT REST GRAY Price: $64.99 |
| 13 |
539110294 |
WASHER Price: $6.99 |
| 13 |
83-1680 |
HOSE-HYD Price: $39.99 |
| 14 |
237-78 |
O-RING Price: $3.85 |
| 14 |
596240701 |
Bolts This part replaces 539110303. Price: $3.99 |
| 15 |
539110310 |
SLIP, MATTING Price: $17.99 |
| 15 |
88-9700 |
HOSE-HYD Price: $64.30 |
| 16 |
532139277 |
STEM FUEL TANK This part replaces 539110432. Price: $6.99 |
| 17 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 17 |
596917001 |
Screws This part replaces 539110673. Price: $2.99 |
| 18 |
539110860 |
BRACKET Price: $5.99 |
| 18 |
57-7650 |
SPRING-TORSION Price: $11.81 |
| 19 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 19 |
539112694 |
SEAT MOUNT, BLACK Price: $44.99 |
| 20 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 20 |
539112699 |
SEAT.XH150.LOWBACK.GREY.ZTR Price: $179.99 |
| 21 |
539923787 |
BSHG .875 X 1.375 X .074 ZD Price: $2.99 |
| 21 |
68-5380 |
CENTER LIFT ARM ASM Price: $205.86 |
| 22 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 22 |
596039001 |
Screws This part replaces 539976952. Price: $2.99 |
| 23 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 23 |
539990362 |
SCREW 1/4 X 5/8 Price: $3.99 |
| 24 |
5-1226 |
WASHER Price: $3.90 |
| 24 |
539990369 |
SCREW Price: $2.99 |
| 25 |
322-3 |
SCREW-HH Price: $0.79 |
| 25 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 26 |
131-4307 |
PIN This part replaces 68-5560. Price: $15.61 |
| 26 |
597783101 |
GSPW Knobs This part replaces 539104411. Price: $3.99 |
| 27 |
115-3260 |
KIT-SERVICE, PIN This part replaces 27-2550. Price: $33.44 |
| 27 |
539110495 |
REAR BRKT, TOOL BOX, PAINTED Price: $132.99 |
| 28 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 29 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 30 |
322-1 |
SCREW-HH Price: $0.22 |
| 31 |
27-2540 |
EUB SPACER Price: $20.87 |
| 32 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 33 |
10-7820 |
PIVOT HINGE ASM Price: $504.57 |
| 34 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 35 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 36 |
11-0160 |
ROLLER SHAFT SCREW ASM Price: $28.16 |
| 37 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 38 |
3-1506 |
BUSHING Price: $2.42 |
| 39 |
138-6311 |
ARM-PULL-ASSEMBLY-LH This part replaces 92-0586. Price: $29.91 |
| 40 |
3290-317 |
WASHER-SPRING Price: $1.40 |
| 41 |
131-4295 |
PIN-PIVOT This part replaces 10-6090. Price: $51.39 |
| 42 |
138-6303 |
ARM-PULL-ASSEMBLY-RH This part replaces 92-0585. Price: $29.91 |
| 43 |
133-2337 |
ROLLER ASM This part replaces 52-2720. Price: $176.14 |
| 44 |
21-8470 |
SHAFT-ROLLER Price: $62.10 |
| 45 |
133-2378 |
BEARING This part replaces 251-141. Price: $23.28 |
| 46 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 539112700 |
SEAT.HIGHBACK.GREY.ZTR |
Price: $279.99 539112700 |
