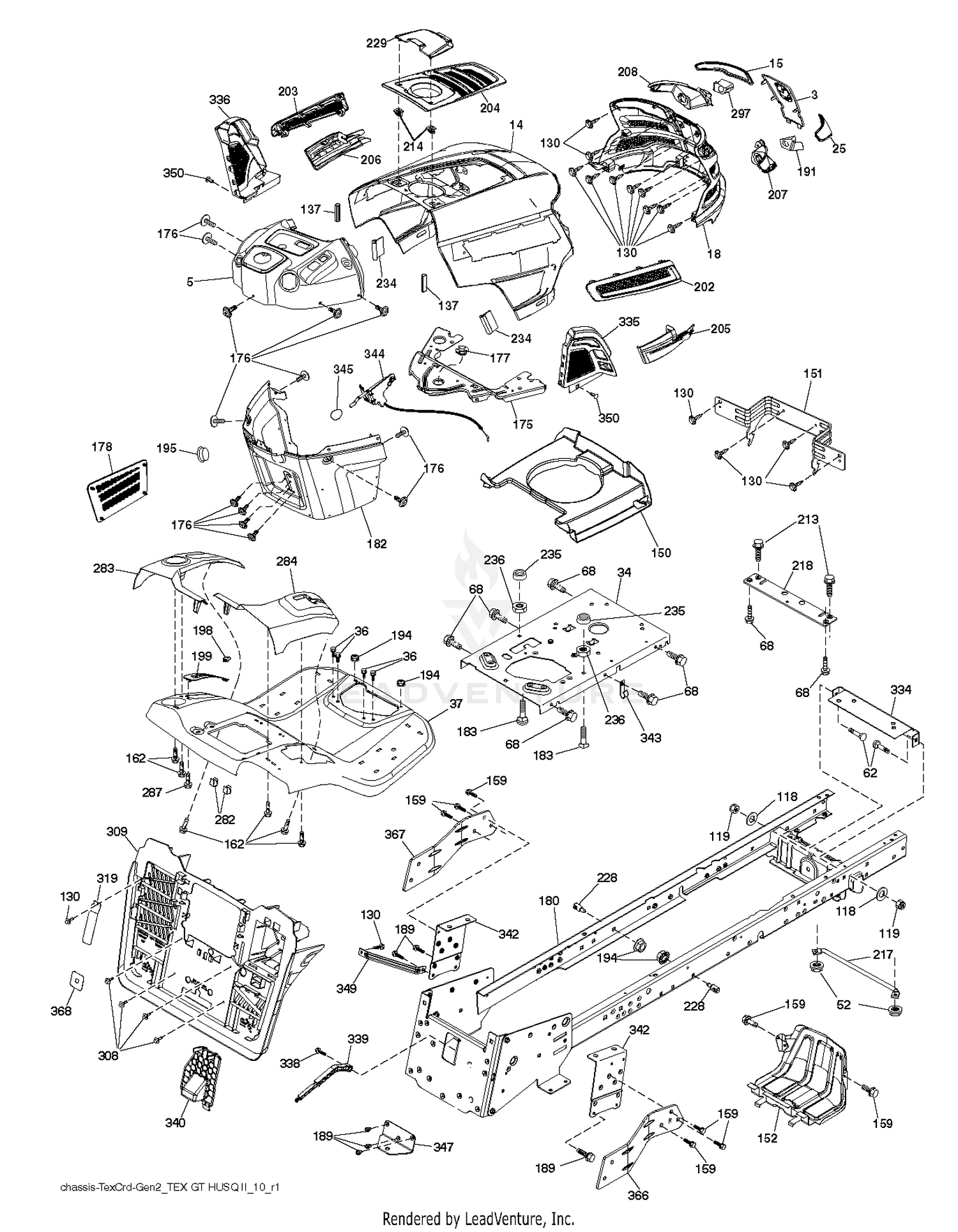

| Ref | Part Number | Description |
|---|
| 1 |
125-9618-03 |
HINGE-DOOR, RH Price: $37.15 |
| 2 |
130-5678 |
RH DOOR ASM Price: $1,318.50 |
| 3 |
121-8570-03 |
FRAME-DOOR, RH Price: $371.09 |
| 3 |
532444481 |
APPLIQUE.SUBASM.GT.HUSQ.II This part replaces 532439752. Price: $22.99 |
| 4 |
121-8331 |
GASKET-HANDLE Price: $15.02 |
| 5 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 5 |
532437484 |
Price: Call Us |
| 6 |
125-9982 |
BUSHING-FLANGE Price: $1.76 |
| 7 |
125-9676 |
WASHER-BACKUP Price: $1.70 |
| 9 |
125-9520 |
SCREW-SHOULDER, HSH Price: $1.83 |
| 11 |
98-3104 |
STUD-BALL Price: $4.61 |
| 12 |
121-8390 |
LATCH-RH Price: $63.03 |
| 13 |
121-8630 |
HANDLE ASM Price: $121.56 |
| 14 |
33103-025 |
SCREW-HHF Price: $0.54 |
| 14 |
587483301 |
KIT.HOOD.ASM.HUSQ.GT.TEX.668 This part replaces 532441177. Price: $74.99 |
| 15 |
3234-21 |
SCREW-HHF Price: $2.19 |
| 16 |
104-7201 |
NUT-HF Price: $0.69 |
| 18 |
597247201 |
Grilles This part replaces 532440653. Price: $84.99 |
| 34 |
593944402 |
Engines This part replaces 580910901. Price: $74.99 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
583759601 |
FENDER.TEX.SRD.CRD.FRN.GUARDS This part replaces 532441369. Price: $149.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 62 |
596728201 |
Bolts This part replaces 872110608. Price: $3.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 118 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 119 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 151 |
531077401 |
SERVICE KIT PIVOT BRACKET BRAC This part replaces 532436670. Price: $37.99 |
| 152 |
532439870 |
SHIELD.BROWNING.PNT.GT.V2 Price: $14.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195227 |
BUSHING, STEERING Price: $5.99 |
| 178 |
532199782 |
CARGO.ASM.NET.TXGT.W/C Price: $29.99 |
| 180 |
583902701 |
WELDMENT.CHASSIS.TEX.CRD.GEN.2 Price: $139.99 |
| 182 |
583536501 |
DSH.LWR.COM.IN-HSE.EZ.MLCH.SLT This part replaces 532438967. Price: $69.99 |
| 183 |
595305701 |
Screws This part replaces 874520520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 191 |
532437455 |
INSERT.REFLECTIVE.RH.HUSQ.GTII Price: $14.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $4.99 |
| 198 |
532441552 |
INDICATOR.DECK.LIFT.RED Price: $11.99 |
| 199 |
583371401 |
PLATE.DECKLIFT.SRD This part replaces 532418739. Price: $7.99 |
| 204 |
587485901 |
VENT.TOP.EXTERNAL.FILL.ASY.GT2 This part replaces 532440665. Price: $24.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874760512. Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 229 |
587485901 |
VENT.TOP.EXTERNAL.FILL.ASY.GT2 This part replaces 532441463. Price: $24.99 |
| 234 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 282 |
532414110 |
CLIP.RETAINER.CONSOLE.LT.HUSQ Price: $2.99 |
| 283 |
532447212 |
CONSOLE.DECKLIFT.CRDII.498 Price: $129.99 |
| 284 |
532447317 |
Price: Call Us |
| 287 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 297 |
532437456 |
INSERT.REFLECTIVE.LH.HUSQ.GTII Price: $14.99 |
| 308 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 309 |
581328906 |
BACKPLATE.ASM.TXCRDII.ANTIROTA This part replaces 581328907. Price: $109.99 |
| 319 |
581313906 |
LEVER.BAG.CRDII.ANTIROTATION Price: $11.99 |
| 334 |
583564401 |
BRACKET.ENGINE. This part replaces 532442537. Price: $8.99 |
| 335 |
532445309 |
COVER-LH.LOWER.DASH.GT2.BLACK Price: $24.99 |
| 336 |
532448204 |
COVER.LOWER.DASH.RH.BLACK Price: $24.99 |
| 338 |
583510201 |
BOLT.SHOULDER.5/16-18.X.88 This part replaces 532436640. Price: $4.99 |
| 339 |
583510301 |
SUBASM.BAGGER.FULL.LVER.(2 2) This part replaces 532436641. Price: $5.99 |
| 340 |
581328906 |
BACKPLATE.ASM.TXCRDII.ANTIROTA This part replaces 581329001. Price: $109.99 |
| 342 |
582826802 |
SUPPORT.PNT.FENDER.CRD.TEX This part replaces 532435938. Price: $17.99 |
| 343 |
582671501 |
CLIP This part replaces 532440749. Price: $2.99 |
| 344 |
583536701 |
CONTROL.EZ.MULCH.TEX/CRD This part replaces 532438970. Price: $79.99 |
| 345 |
539132624 |
KNOB - SHIFT This part replaces 532440639. Price: $6.99 |
| 347 |
583581301 |
SUBASM.HITCH.TOW This part replaces 532445832. Price: $14.99 |
| 349 |
583509701 |
LRVB.FUEL.TANK.SUPPORT.BRACKET This part replaces 532436606. Price: $5.99 |
| 350 |
532445143 |
CLIP.X-MAS.TREE Price: $3.99 |
| 366 |
581314602 |
BRACKET.RH.FRONT.BAGGER.BLACK Price: $19.99 |
| 367 |
581314502 |
BRACKET.LH.FRONT.BAGGER.BLACK Price: $19.99 |
| 368 |
581424801 |
FULL.LEVER.BAGGER.TEX.CRD Price: $3.99 |
