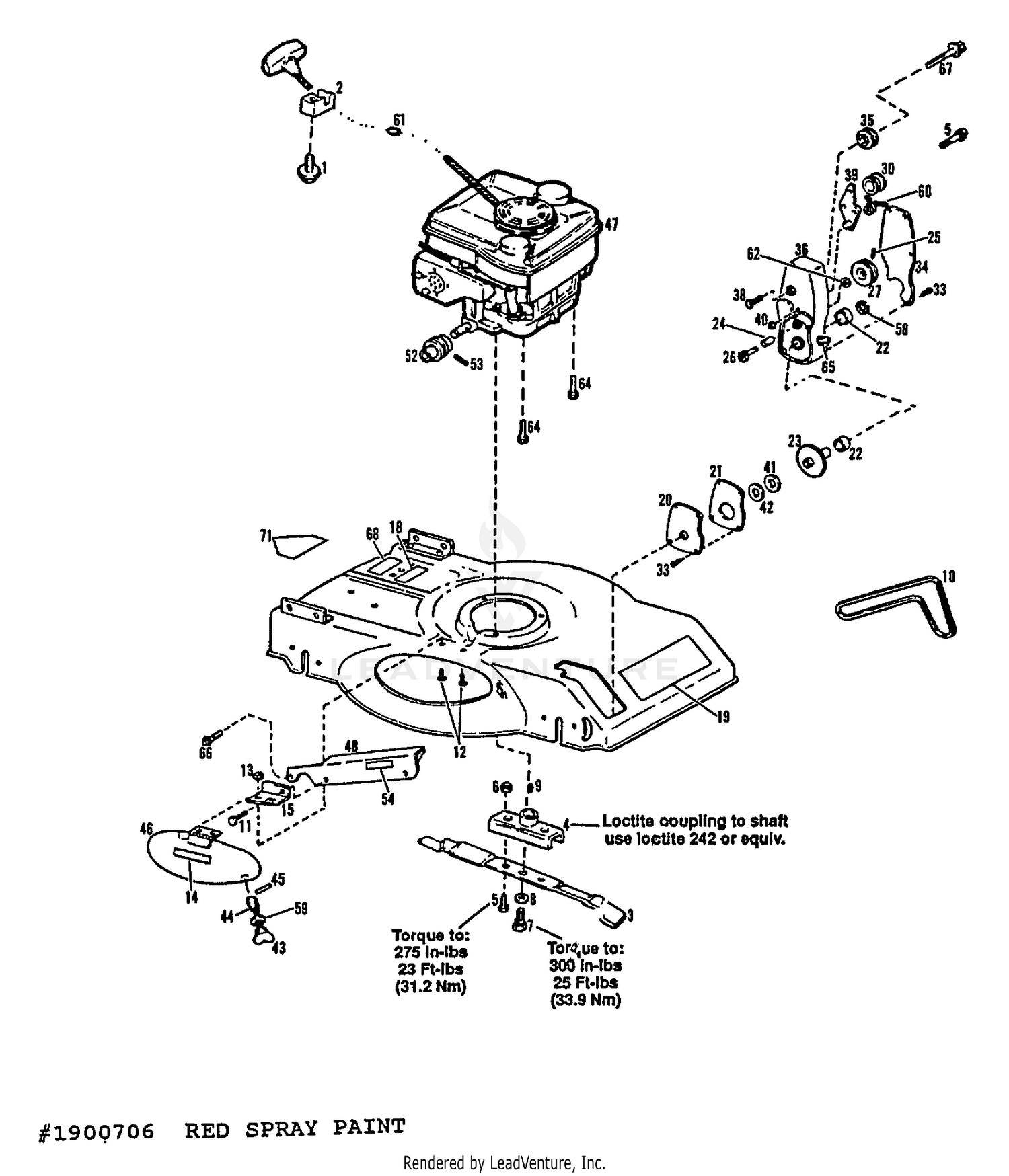

| Ref | Part Number | Description |
|---|
| 1 |
1763187 |
HEX SCREW Not Available Price: |
| 2 |
1761764 |
ROPE GUIDE Not Available Price: |
| 3 |
1755990-0637 |
MULCHING BLADE 22" LG This part replaces 1755990. Price: $35.76 |
| 6 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 1733398. Price: $3.90 |
| 8 |
736-0921 |
Lock Washer, 1/2 This part replaces 1100245. Price: $3.90 |
| 9 |
1185885 |
WOODRUFF KEY Not Available Price: |
| 10 |
1755565 |
BELT-DRIVE Price: $18.69 |
| 11 |
1756544 |
SCR-SHOULD Not Available Price: |
| 12 |
1186068 |
SCR-CARR 1 Not Available Price: |
| 13 |
1186389 |
NUT-HF/LK 1/4-20 ZP Price: $3.05 |
| 14 |
1755985 |
DECAL-CAUTION Not Available Price: |
| 15 |
1755558001 |
SUPPORT BRACKET Not Available Price: |
| 18 |
1758094 |
DECAL-CUTTING HEIG Not Available Price: |
| 19 |
1764713 |
DECAL-LOGO Not Available Price: |
| 20 |
1894230001 |
GEAR COVER Not Available Price: |
| 21 |
1894231 |
GASKET-GEA Not Available Price: |
| 22 |
1185319 |
BEARING-BRONZE Not Available Price: |
| 23 |
1761969 |
Assm-gear Not Available Price: |
| 24 |
1758230 |
BEARING-BRONZE Not Available Price: |
| 25 |
1185271 |
PIN-DRIVE Not Available Price: |
| 26 |
1758050 |
SHAFT-PINION Not Available This part replaces 1761901. Price: |
| 27 |
1758229 |
SHEAVE Not Available Price: |
| 30 |
1752988 |
FLAT IDLER Not Available Price: |
| 33 |
1186009 |
SCREW-HW M10-24X.5 S Not Available Price: |
| 34 |
1722468001 |
GEAR COVER Not Available Price: |
| 35 |
1761754 |
SHEAVE Not Available Price: |
| 36 |
1761625001 |
ASSM-GEAR Not Available Price: |
| 38 |
1894301 |
SCR-SHOULD Not Available Price: |
| 39 |
1757745 |
IDLER ASSEMBLY Not Available Price: |
| 40 |
726-0100 |
Push Cap This part replaces 1724791. Price: $3.75 |
| 41 |
736-0188 |
Washer-Fl-.760Id X This part replaces 1708012. Price: $3.75 |
| 42 |
1894232 |
WASHER-FELT Price: Call Us |
| 43 |
1894076 |
PIN-CHUTE Not Available Price: |
| 44 |
1894318 |
COMPRESSION SPRING Not Available Price: |
| 45 |
1185479 |
ROLL PIN . Not Available Price: |
| 46 |
1762064 |
COVER-DISCHARGE W/DECAL (INCL. 12-14,43-45, 59) Price: Call Us |
| 48 |
1764438001 |
ASSEMBLY BELT COVER Not Available Price: |
| 52 |
1756806 |
SHEAVE Not Available Price: |
| 53 |
915-0246 |
Pin, Spring, 3/16 x 1.25 Not Available This part replaces 1185232. Price: |
| 54 |
1763874 |
DECAL-FRONT WHEEL DRIVE Price: Call Us |
| 58 |
1725197 |
RING-GRIP Not Available Price: |
| 59 |
736-0159 |
Washer This part replaces 1100254. Price: $3.71 |
| 60 |
1757640 |
TORSION SPRING Not Available Price: |
| 61 |
1746425 |
STOP-STARTER ROPE Not Available Price: |
| 62 |
1185831 |
SHIM WASHER .88X.5 Not Available Price: |
| 64 |
1762042 |
SCREW-HH Not Available Price: |
| 65 |
937-0146 |
Grease Fitting This part replaces 1185976. Price: $4.80 |
| 66 |
1754128 |
SCR-FLANGE 1/4-20X3/4 GR5 Not Available Price: |
| 67 |
710-3038 |
Hex Cap Screw 5/16-18 x .875 This part replaces 1100078. Price: $4.17 |
| 68 |
1900333 |
DECAL-U.S.A. Not Available Price: |
| 71 |
1739687 |
DECAL-OPEI CAUTION {NOT 8656R} Price: $6.36 |
| 1909706 |
SPRAY |
PAINT, TROY-BILT RED, 13OZ. Price: Call Us 1909706 |
