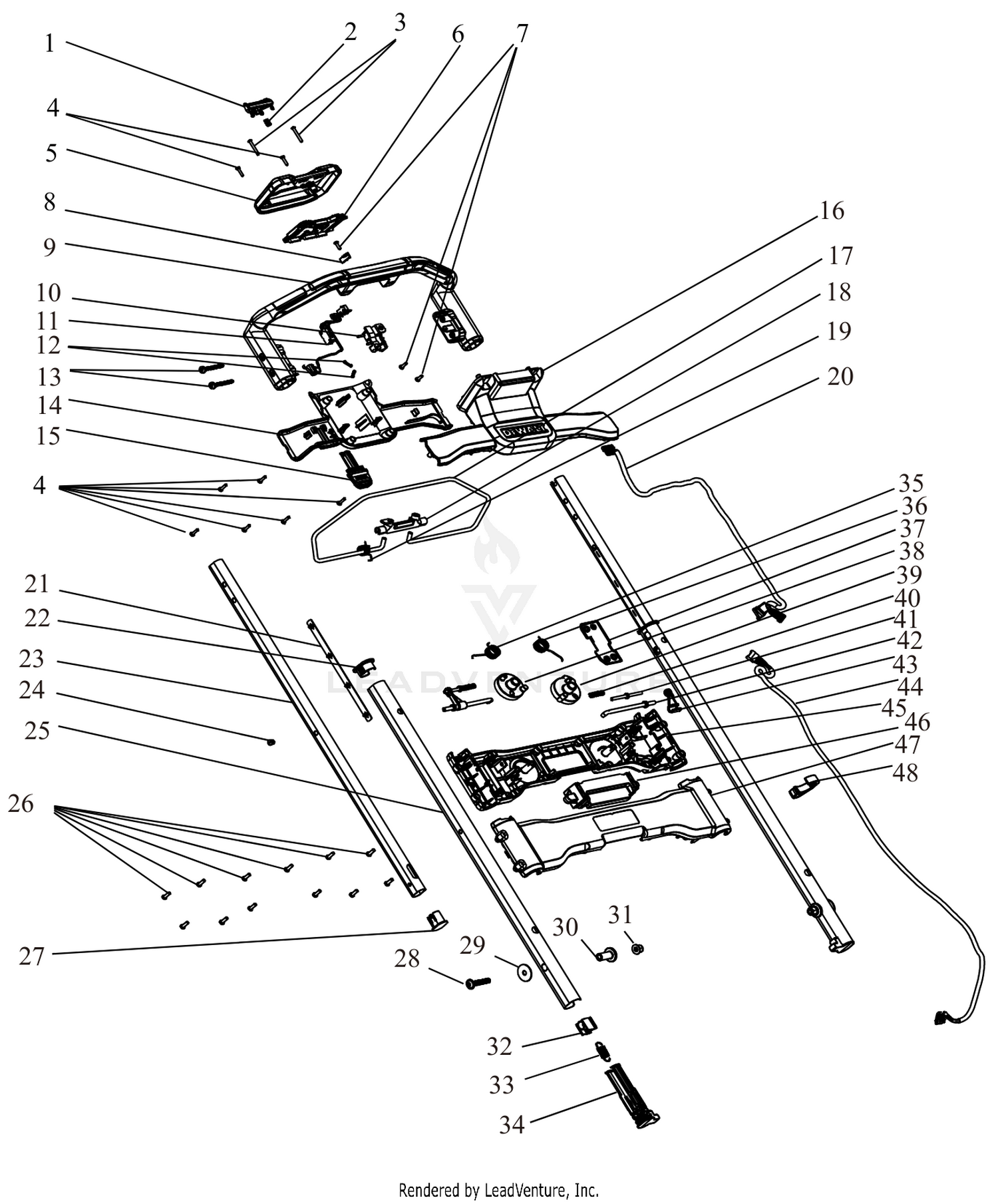

Handle
Parts (103)
| Ref | Part Number | Description |
|---|---|---|
| 1 | NA168482 | BUTTON Price: $1.12 |
| 2 | 90617442 | SCREW Price: $0.56 |
| 3 | NA213502 | SPRING Price: $0.56 |
| 4 | 330019-03 | SCREW Price: $0.56 |
| 5 | NA120833 | COVER Price: $3.98 |
| 6 | NA312972 | CONTROL Price: $105.96 |
| 7 | 330019-02 | SCREW Price: $0.10 |
| 8 | NA255730 | BUTTOM Price: $0.56 |
| 9 | NA268870 | HANDLE SA Price: $27.91 |
| 10 | NA172919 | SWITCH Price: $1.12 |
| 11 | NA561361 | WIRE HARNESS Price: $24.49 |
| 12 | N261987 | CAP Price: $0.10 |
| 13 | BD-330045-29 | SCREW M6X45-T30-THD FRM Price: $0.56 |
| 14 | NA120832 | COVER Price: $6.25 |
| 15 | NA260845 | KEY Price: $1.05 |
| 16 | NA120831 | SWITCH COVER Price: $11.38 |
| 17 | NA168479 | CATCH Price: $9.11 |
| 18 | NA168480 | CAM Price: $1.12 |
| 19 | N534932 | SPRING TORSION Price: $0.56 |
| 20 | NA570400 | WIRE HARNESS Price: $34.17 |
| 21 | NA302113 | STRIP Price: $0.56 |
| 22 | NA302159 | SLEEVE Price: $1.12 |
| 23 | NA302156 | TUBE UPPER Price: $17.08 |
| 24 | NA377608 | STOP Price: $0.56 |
| 25 | NA302154 | TUBE LOWER Price: $22.78 |
| 26 | BD-330019-12 | SCREW M4.55X16 T20-PLAS THD FRM Price: $0.91 |
| 27 | NA302157 | SLEEVE Price: $1.12 |
| 28 | NA291227 | BOLT Price: $1.12 |
| 29 | NA302168 | WASHER Price: $0.56 |
| 30 | NA302166 | SCREW Price: $1.70 |
| 31 | N526931 | NUT Price: $1.12 |
| 32 | NA302103 | HOOK Price: $1.12 |
| 33 | NA302114 | SPRING Price: $0.95 |
| 34 | NA302073 | LOCK Price: $2.11 |
| 35 | NA302117 | SPRING Price: $0.61 |
| 36 | NA302116 | SPRING Price: $0.61 |
| 37 | NA302176 | COVER Price: $0.52 |
| 38 | NA302109 | DISC Price: $1.05 |
| 39 | NA302110 | DISC Price: $1.13 |
| 40 | NA302115 | SPRING Price: $0.17 |
| 41 | NA302149 | PIN Price: $0.52 |
| 42 | NA302148 | ROD Price: $1.05 |
| 43 | NA302105 | HOLDER Price: $1.05 |
| 44 | NA217316 | HARNESS Price: $21.19 |
| 45 | NA302161 | COVER Price: $8.47 |
| 46 | NA301662 | BUTTON Price: $5.29 |
| 47 | NA302160 | COVER Price: $8.47 |
| 48 | NA302177 | CLIP Price: $0.87 |
| 49 | NA301419 | GRASSBAG Price: $63.06 |
| 50 | NA301420 | FRAME Price: $21.72 |
| 51 | NA301422 | CHUTE Price: $10.59 |
| 52 | NA301421 | PLUG Price: $6.88 |
| 53 | N507564 | BOLT Price: $0.37 |
| 54 | NA302167 | SPACER Price: $0.56 |
| 55 | 710-06147 | SCREW 1/4-10 x .750 Price: $3.08 |
| 56 | NA301696 | SUPPORT Price: $6.83 |
| 57 | NA302173 | BRACKET Price: $15.94 |
| 58 | N541610 | LOCK-NUT Price: $0.56 |
| 59 | NA301429 | ROD Price: $2.84 |
| 60 | NA302910 | DOOR Price: $18.79 |
| 61 | N572158 | SPRING Price: $1.12 |
| 62 | NA302172 | BRACKET Price: $16.51 |
| 63 | NA301667 | SUPPORT Price: $6.83 |
| 64 | NA302174 | BRACKET Price: $6.83 |
| 65 | NA301427 | SHIELD Price: $7.40 |
| 66 | NA301426 | INSERT Price: $10.81 |
| 67 | 712-04217 | FLANGE LOCK NUT Price: $3.75 |
| 68 | NA317096 | WHEEL Price: $26.77 |
| 69 | NA301388 | AXLE REAR Price: $31.90 |
| 70 | NA301404 | SPRING Price: $1.70 |
| 71 | NA301402 | ROD Price: $5.82 |
| 72 | NA301417 | ROD Price: $3.17 |
| 73 | NA301557 | BOLT Price: $1.05 |
| 74 | NA300158 | AXLE FRONT Price: $22.25 |
| 75 | NA301425 | CLIP Price: $7.94 |
| 76 | NA317088 | WHEELS Price: $16.42 |
| 77 | NA323873 | PLATE Price: $22.78 |
| 78 | NA301435 | NUT Price: $0.52 |
| 79 | NA302153 | BLADE Price: $29.67 |
| 80 | NA302151 | BLADE Price: $29.67 |
| 81 | NA301433 | WASHER Price: $4.76 |
| 82 | NA301437 | BOLT Price: $1.58 |
| 83 | NA300056 | PLATE Price: $123.48 |
| 84 | NA301423 | BODY Price: $81.61 |
| 85 | NA301416 | BOLT Price: $1.05 |
| 86 | NA301407 | LINK Price: $19.07 |
| 87 | NA301418 | SPRING Price: $6.35 |
| 88 | NA490375 | MOTOR SA Price: $498.72 |
| 89 | NA149905 | PCB SA Price: $23.31 |
| 90 | NA132154 | BAFFLE Price: $2.11 |
| 91 | NA096216 | CONNECTOR Price: $1.05 |
| 92 | NA172915 | HARNESS Price: $14.30 |
| 93 | NA315457 | WIRE HARNESS Price: $27.55 |
| 94 | NA281677 | COVER Price: $19.60 |
| 95 | NA296380 | PLATE SA Price: $9.53 |
| 96 | NA281676 | DOOR Price: $20.66 |
| 97 | NA357096 | HOUSING SA Price: $15.36 |
| 98 | N402149 | PIN Price: $0.52 |
| 100 | NA296382 | COVER SA Price: $10.06 |
| 101 | NA392699 | BUSHING Price: $1.05 |
| 102 | NA165685 | COVER Price: $3.17 |
| 103 | NA654189 | SA HANDLE PNL KIT PUSH-BLACK Price: $11.69 |
| 104 | NA325596 | LABEL Price: $0.07 |
