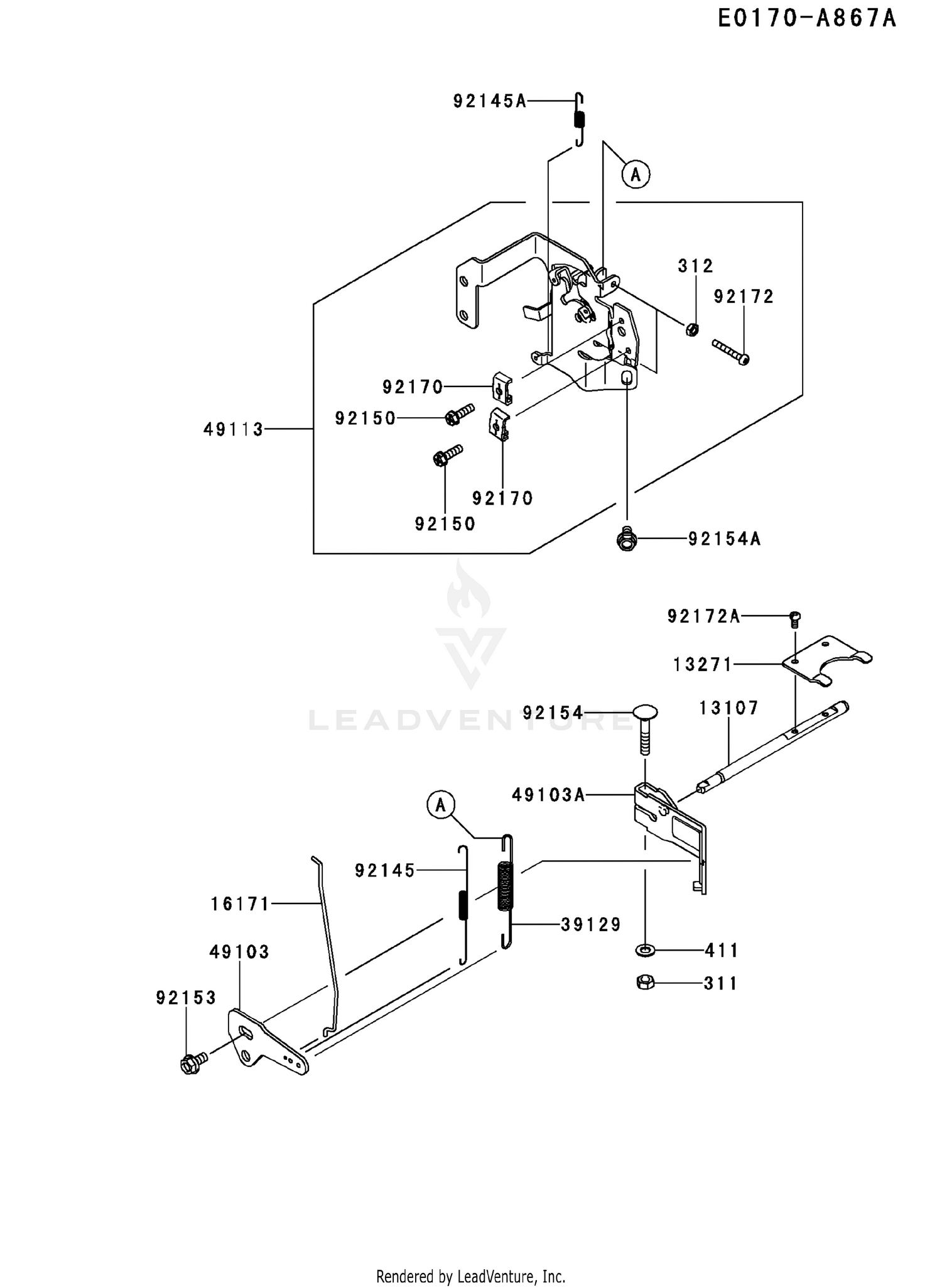

FX730V-AS39 CONTROL
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 311 | KM-311BA0600 | HEX NUT 6MM Price: $1.99 |
| 312 | KM-312AA0500 | HEX NUT 5MM Price: $1.86 |
| 13107 | KM-13107-7047 | GOVERNOR SHAFT Price: $10.30 |
| 13271 | KM-13271-7038 | PLATE-GOV SHAFT Price: $3.03 |
| 16171 | KM-16171-0043 | GOVERNOR LINK Price: $0.88 |
| 39129 | KM-39129-0044 | GOVERNOR SPRING This part replaces KM-39129-7030. Price: $5.15 |
| 49103 | KM-49103-0010 | GOVERNOR ARM Price: $3.55 |
| 49103A | KM-49103-0017 | GOVERNOR ARM This part replaces KM-49103-7014. Price: $4.67 |
| 49113 | KM-49113-0726 | PANEL-COMP CONTROL Price: $27.97 |
| 92145 | KM-92145-1811 | SPRING Price: $3.70 |
| 92145A | KM-92145-1812 | SPRING Price: $2.09 |
| 92150 | KM-92150-2182 | BOLT-CLAMP Price: $2.73 |
| 92153 | KM-92153-0009 | BOLT Price: $2.63 |
| 92154 | KM-92154-2697 | BOLT-6X35 Price: $0.89 |
| 92154A | KM-92154-2938 | FLANGED BOLT Price: $1.83 |
| 92170 | KM-92170-7001 | CLAMP Price: $2.48 |
| 92172 | KM-92172-0792 | SCREW Price: $0.76 |
| 92172A | KM-92172-0870 | SCREW 4 x 8 Price: $0.27 |
