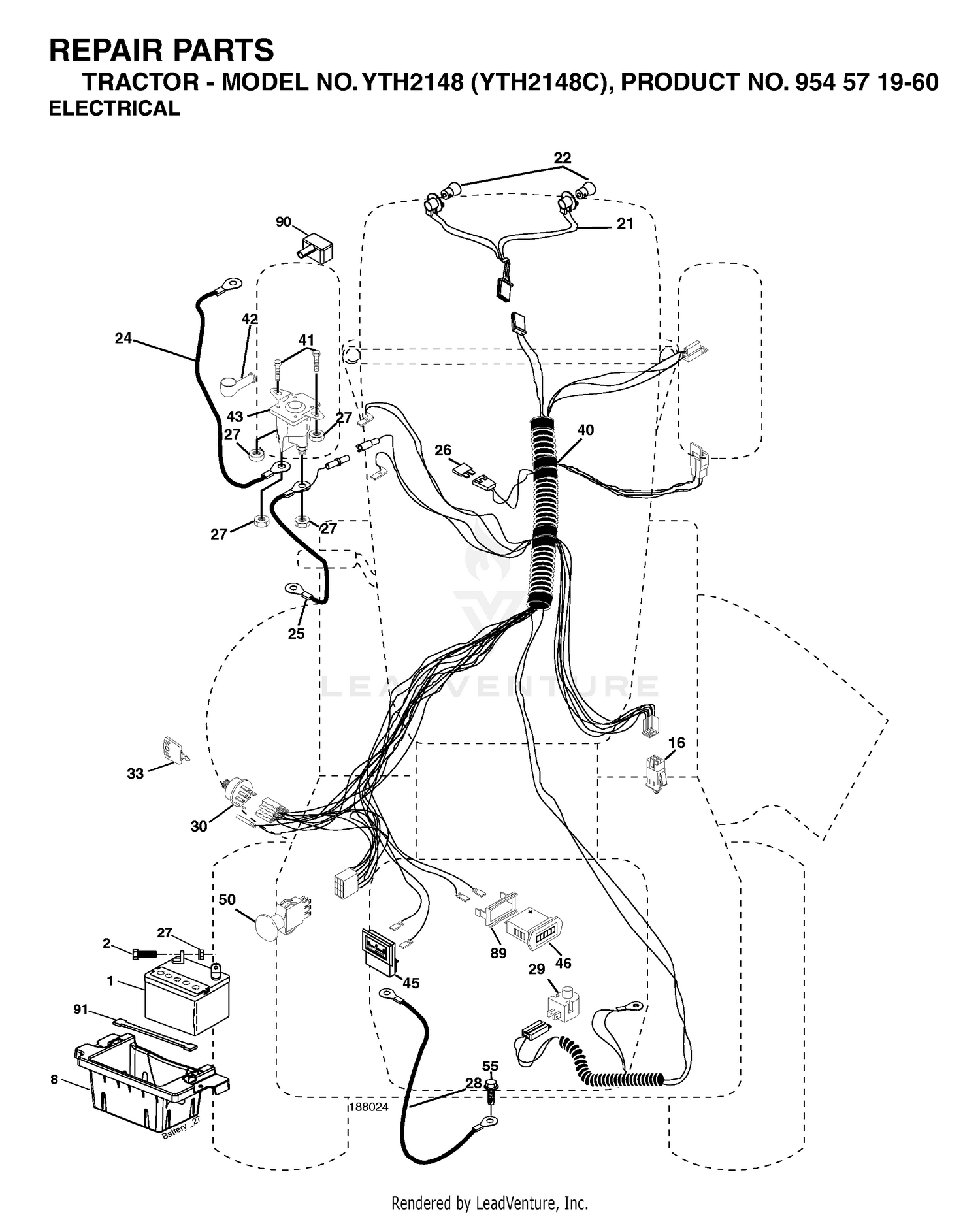

| Ref | Part Number | Description |
|---|
| 1 |
127-3011 |
STUD Price: $8.87 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 2 |
127-3001 |
GENERATOR Price: $1,526.12 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
127-3190 |
NUT Price: $4.86 |
| 4 |
127-2951 |
ROTOR ASM Price: $326.08 |
| 5 |
127-2983 |
BEARING-BALL Price: $23.48 |
| 6 |
127-2962 |
COVER Price: Call Us |
| 7 |
127-2952 |
FRAME ASM Price: Call Us |
| 8 |
127-2958 |
BEARING-BALL Price: $25.78 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 9 |
127-2959 |
PLATE-RETAINER Price: Call Us |
| 10 |
127-2960 |
SCREW Price: Call Us |
| 10 |
532150177 |
BATTERY TIEDOWN KIT This part replaces 532145211. Price: $8.99 |
| 11 |
127-2961 |
STUD Price: Call Us |
| 12 |
127-2953 |
FRAME ASM Price: $57.52 |
| 12 |
532150177 |
BATTERY TIEDOWN KIT This part replaces 532145769. Price: $8.99 |
| 13 |
127-2954 |
PULLEY Price: $69.59 |
| 14 |
127-2955 |
NUT Price: Call Us |
| 15 |
127-2957 |
COLLAR Price: $16.32 |
| 16 |
127-3002 |
REGULATOR ASM Price: $643.65 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 17 |
127-2963 |
HOLDER Price: $253.39 |
| 18 |
127-2993 |
HOLDER Price: $95.21 |
| 19 |
127-2956 |
BRUSH ASM Price: $8.83 |
| 20 |
127-2964 |
SPRING Price: $3.16 |
| 21 |
127-2965 |
SCREW Price: Call Us |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
127-2966 |
SCREW Price: Call Us |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
127-2999 |
COVER Price: $22.03 |
| 24 |
127-2967 |
BOLT Price: $9.43 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
127-2968 |
SCREW Price: $4.72 |
| 25 |
532146148 |
CABLE BATTERY 6 GA 22" W/16W Price: $11.99 |
| 26 |
127-2969 |
BOLT Price: Call Us |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
127-2970 |
BUSHING-INSULATION Price: Call Us |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
127-2971 |
NUT Price: Call Us |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
127-2972 |
WASHER Price: Call Us |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 30 |
125-7230 |
NUT Price: $2.81 |
| 30 |
532175566 |
IGNITION SWITCH Price: $22.99 |
| 31 |
125-6947 |
SPACER Price: $21.65 |
| 32 |
127-2977 |
ADJUSTER Price: $113.82 |
| 33 |
125-7134 |
BOLT Price: $25.74 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 40 |
532188024 |
HARNESS.IGNITION Price: $119.99 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532178861. Price: $19.99 |
| 45 |
532122822 |
AMMETER Price: $17.99 |
| 46 |
532169642 |
KIT.HOURMETER.SNAP-IN This part replaces 532169635. Price: $109.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 89 |
532169639 |
BRACKET SNAP-IN HOURMETER Price: $4.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532180449. Price: $4.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
