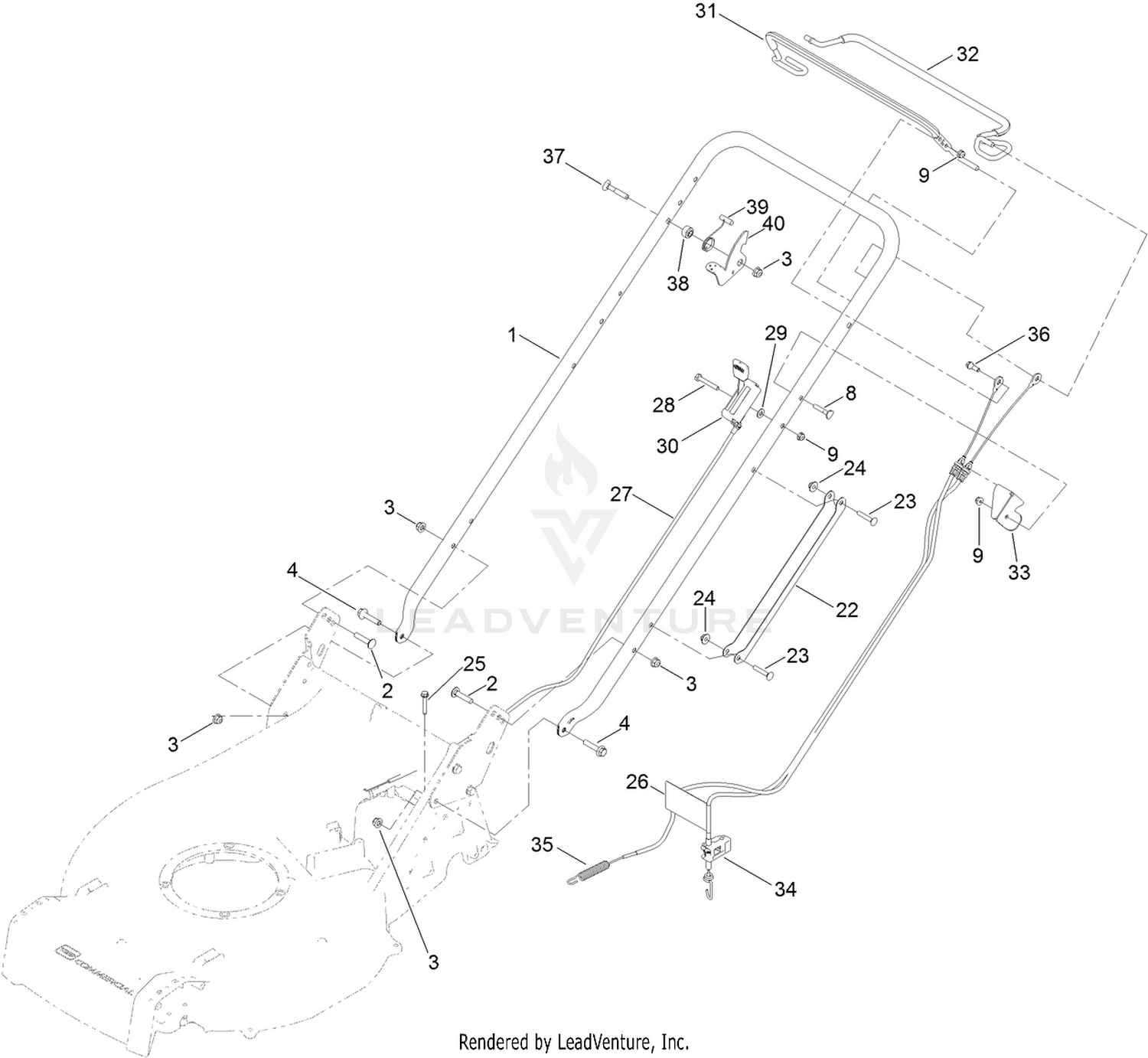

| Ref | Part Number | Description |
|---|
| 1 |
137-4817-03 |
HANDLE Price: $71.48 |
| 2 |
3230-4 |
BOLT-CARR Price: $0.47 |
| 3 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 4 |
115-1794 |
SCREW-HHF Price: $1.73 |
| 8 |
117-7737 |
SCREW-HANDLE Price: $1.43 |
| 9 |
104-7201 |
NUT-HF Price: $0.69 |
| 22 |
127-6897-03 |
GUARD-CABLE, HANDLE Price: $5.91 |
| 23 |
108-0988 |
SCREW-CARR Price: $0.61 |
| 24 |
114-3778 |
NUT-HF Price: $0.90 |
| 25 |
94-2691 |
SCREW-HWH Price: $1.02 |
| 26 |
130-6722 |
DECAL-ADJUST SELF PROPEL DRIVE Price: $2.80 |
| 27 |
125-8374 |
CONTROL-THROTTLE/CHOKE Price: $35.72 |
| 28 |
321-10 |
SCREW-HH Price: $1.29 |
| 29 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 30 |
130-9656 |
DECAL-THROTTLE, CHOKE Price: $1.74 |
| 31 |
137-4810 |
BAIL-BBC, COATED Price: $25.44 |
| 32 |
137-4811 |
BAIL-TRACTION, COATED Price: $25.44 |
| 33 |
137-4766-03 |
BRACKET-CABLE Price: $16.29 |
| 34 |
137-4768 |
CABLE-TRACTION Price: $30.08 |
| 35 |
137-4769 |
CABLE-BBC Price: $21.31 |
| 36 |
42-3560 |
BOLT-SHOULDER Price: $4.85 |
| 37 |
92-2260 |
SCREW-HANDLE This part replaces 112-8876. Price: $2.83 |
| 38 |
116-2690 |
BUSHING-STEPPED Price: $8.83 |
| 39 |
109-9318 |
SPRING-LEVER, BBC Price: $4.05 |
