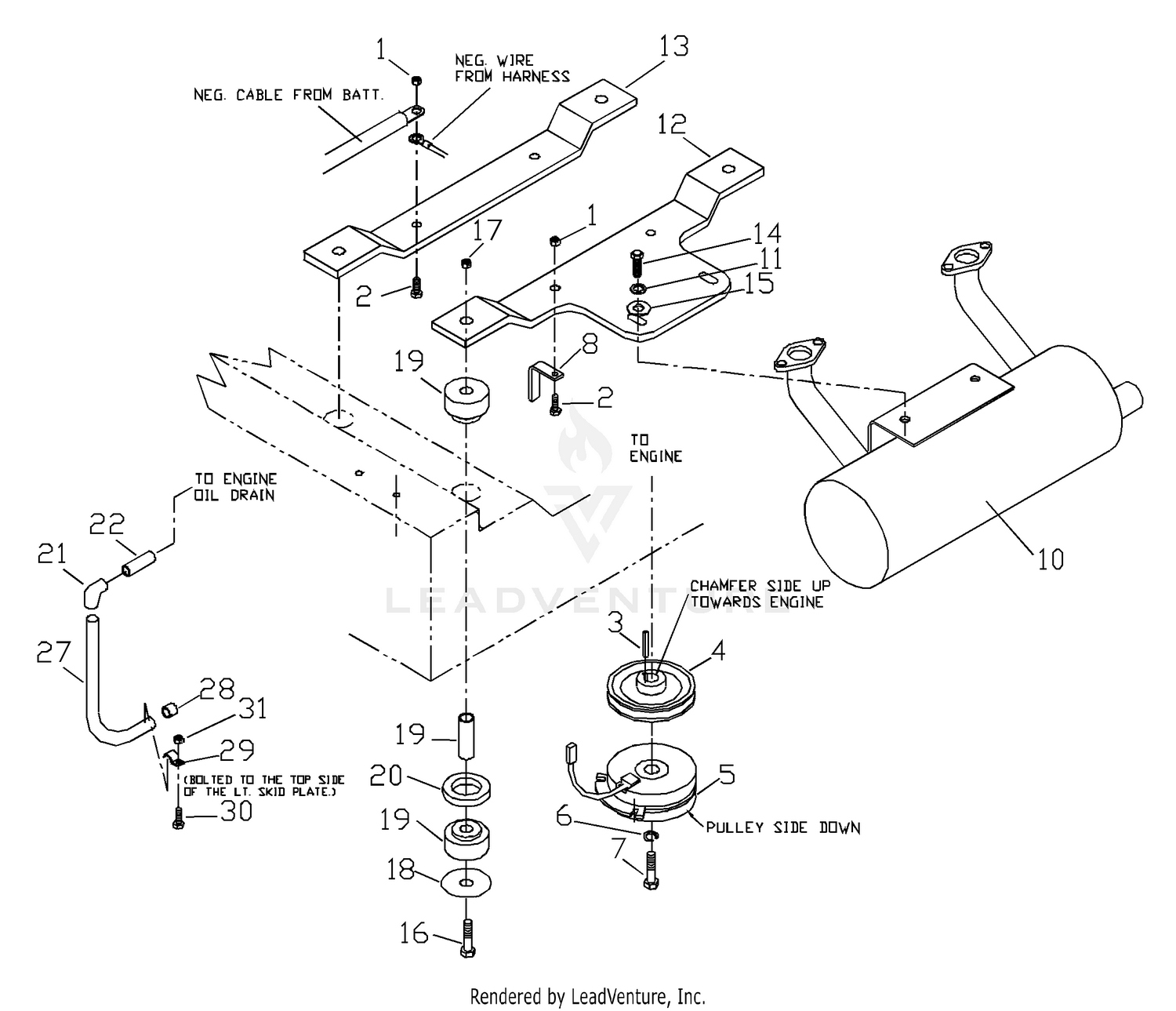

| Ref | Part Number | Description |
|---|
| 1 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 2 |
874780528 |
SCREW This part replaces 539990669. Price: $4.99 |
| 3 |
42-9830 |
DISCONTINUED Price: Call Us |
| 3 |
539100152 |
KEY 1/4" SQ X 1 7/8" Price: $2.99 |
| 4 |
42-8100 |
COLLAR MM 304916 Price: $28.56 |
| 4 |
539106057 |
PULLEY Price: $54.99 |
| 5 |
539105406 |
ELECTRIC CLUTCH W/CABLE Price: $329.99 |
| 6 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 7 |
539991120 |
BOLT 7/16F X 2 1/2 Price: $5.99 |
| 8 |
539103251 |
CLUTCH TIE DOWN Price: $34.99 |
| 8 |
56-0750 |
CLAMP Price: $15.09 |
| 9 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 10 |
33113-025 |
SCREW-HH This part replaces 43-2600. Price: $1.97 |
| 10 |
539105896 |
MUFFLER KOHLER GEN II Price: $299.99 |
| 11 |
42-8140 |
PIPE ASY. Price: $95.38 |
| 11 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99 |
| 12 |
539105410 |
REAR ENGINE MOUNT Price: $60.99 |
| 13 |
539105025 |
ENGINE MOUNT Price: $19.99 |
| 13 |
56-0760 |
CLAMP Price: $7.97 |
| 14 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99 |
| 15 |
42-8010 |
ADJ SHIM MM 409040 Price: $13.75 |
| 15 |
42-8030 |
ADJ SHIM MM 409042 Price: $11.05 |
| 15 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 16 |
281-1 |
PLUG-PIPE, SQH Price: $4.56 |
| 16 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 17 |
42-7090 |
SEALING CAP Price: $27.82 |
| 17 |
596135601 |
GSPW NUTS This part replaces 539101331. Price: $3.99 |
| 18 |
42-7050 |
OIL GA GUIDE Price: $21.44 |
| 18 |
539104959 |
ISOLATOR WASHER Price: $12.99 |
| 19 |
43-2710 |
O-RING Price: $6.47 |
| 19 |
539104958 |
ISOLATORS Price: $32.99 |
| 20 |
539105034 |
ISOLATOR SPACER Price: $11.99 |
| 20 |
72-6950 |
OIL LEVEL GUAGE RETAIN. Price: $33.80 |
| 21 |
42-7160 |
PIN Price: $4.51 |
| 22 |
42-7270 |
OIL GAUGE Price: $39.93 |
| 22 |
539105073 |
PIPE 3/8 NPT 1-1/2 Price: $4.99 |
| 23 |
42-9660 |
WASHER Price: $2.50 |
| 25 |
86-6240 |
PLUG-TAPERED This part replaces 67-2570. Price: $5.11 |
| 27 |
539101362 |
OIL DRAIN HOSE Price: $24.99 |
| 28 |
539101364 |
DRAIN CAP Price: $5.99 |
| 29 |
539101363 |
CLAMP Price: $2.99 |
| 30 |
596230901 |
Screws This part replaces 539990580. Price: $2.99 |
| 31 |
3253-4 |
WASHER-LOCK This part replaces 42-9850. Price: $0.25 |
| 31 |
539990761 |
NUT 1/4C CENTER LOCK Price: $2.99 |
| 32 |
33114-016 |
SCREW-HH This part replaces 42-9230. Price: $0.27 |
| 33 |
42-8180 |
FUEL RETURN ASM Price: $39.29 |
| 34 |
2412-79 |
CLAMP-HOSE Price: $1.63 |
| 35 |
42-8190 |
JOINT MM 100088 Price: $13.50 |
| 36 |
67-2390 |
PLUG Price: $5.06 |
| 37 |
42-7290 |
GASKET-PLUG Price: $7.56 |
| 38 |
67-2520 |
PLUG Price: $5.65 |
| 39 |
42-8930 |
SPRING MM 407142 Price: $16.42 |
| 40 |
67-2500 |
PLUNGER Price: $22.88 |
| 41 |
56-1310 |
SWITCH ASM Price: $40.76 |
| 42 |
108-3841 |
FILTER-OIL This part replaces 67-4330. Price: $10.81 |
| 43 |
42-9480 |
DISCONTINUED Price: Call Us |
| 44 |
42-8920 |
DISCONTINUED Price: Call Us |
| 45 |
42-8910 |
PUMP ROTOR Price: $416.87 |
| 46 |
42-8940 |
O-RING Price: $28.65 |
| 47 |
93-3657 |
PIN DOWEL Price: $2.64 |
| 48 |
42-8900 |
PUMP BODY MM 409201 Price: $249.04 |
| 49 |
42-8950 |
BODY GASKET MM 407124 Price: $13.24 |
| 50 |
42-7180 |
DISCONTINUED Price: Call Us |
| 51 |
42-7170 |
PLUG-40 MM MF665511 Price: $11.46 |
| 52 |
42-7200 |
KNOCK BSHG MS 471110 Price: $10.16 |
| 53 |
93-3409 |
BEARING Price: $33.38 |
| 54 |
42-7840 |
SUNK KEY Price: $9.67 |
| 55 |
42-7810 |
DISCONTINUED Price: Call Us |
| 56 |
42-7790 |
IDLER GEAR Price: $383.30 |
| 57 |
42-7780 |
DISCONTINUED Price: Call Us |
| 58 |
42-7730 |
DISCONTINUED Price: Call Us |
| 59 |
72-4280 |
CAM SHAFT Price: $839.96 |
| 62 |
48-7880 |
NUT-HEX This part replaces 43-5970. Price: $0.25 |
| 63 |
43-5920 |
WASHER-LOCK, SPRING Price: $0.25 |
| 64 |
33014-00 |
NUT-HEX This part replaces 42-9580. Price: $0.25 |
| 65 |
43-0370 |
DISCONTINUED Price: Call Us |
| 66 |
43-0380 |
DISCONTINUED Price: Call Us |
| 67 |
112-1359 |
ALTERNATOR This part replaces 43-0390. Price: $469.33 |
| 68 |
43-1900 |
BOLT MD 017625 Price: $17.40 |
| 69 |
54-8660 |
WASHER Price: $2.23 |
| 70 |
67-4660 |
BOLT-FLANGE Price: $2.64 |
| 71 |
43-0400 |
GEN BRACE MM 409463 Price: $68.06 |
| 72 |
42-7190 |
DISCONTINUED Price: Call Us |
| 73 |
42-9820 |
DISCONTINUED Price: Call Us |
| 74 |
56-2120 |
DISCONTINUED Price: Call Us |
