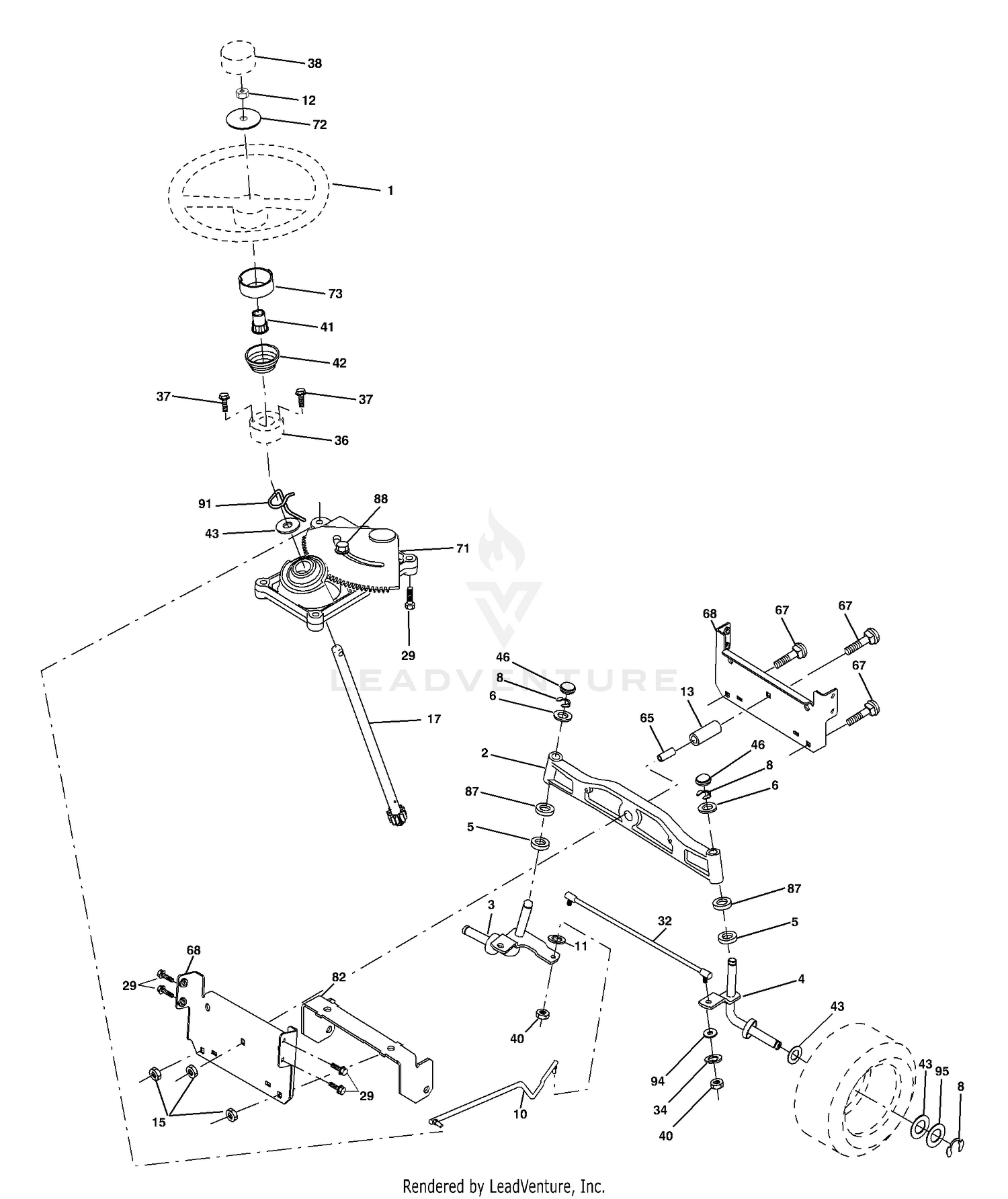

| Ref | Part Number | Description |
|---|
| 1 |
159944X428 |
Wheel Steering Price: Call Us |
| 1 |
33104-025 |
SCREW-HHF Price: $6.47 |
| 2 |
184706 |
Axle Asm Price: Call Us |
| 2 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 3 |
107-8749-03 |
BRACKET-CABLE This part replaces 100-8303-03. Price: $122.91 |
| 3 |
169840 |
Spindle Asm LH Price: Call Us |
| 4 |
169839 |
Spindle Asm RH Price: Call Us |
| 4 |
33113-012 |
SCREW-HH Price: $0.71 |
| 5 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 5 |
6266H |
Bearing Race Thrust Harden Price: Call Us |
| 6 |
121748X |
Washer 25/32 x 1-5/8 x 16 Ga. Price: Call Us |
| 6 |
2412-89 |
CLAMP-R Price: $2.09 |
| 7 |
100-8531-03 |
TRANSAXLE-MOUNT Price: $245.95 |
| 8 |
12000029 |
Ring Klip #t5304-75 Price: Call Us |
| 8 |
48-8020 |
WASHER-SPRING Price: $1.19 |
| 10 |
100-8250 |
HOSE-SUCTION Price: $191.16 |
| 10 |
175121 |
Link Drag Price: Call Us |
| 11 |
10040600 |
Washer, Lock Hvy. Hlcl. Spr. 3/8 Price: Call Us |
| 11 |
87-3990 |
STRAINER-TRANSAXLE Price: $148.81 |
| 12 |
3290-379 |
TIE-CABLE Price: $0.31 |
| 12 |
73940800 |
Nut Hex Jam Toplock 1/2-20 unf Price: Call Us |
| 13 |
136518 |
Spacer Bearing Axle Front Price: Call Us |
| 13 |
87-7960 |
LEVER-SHIFT Price: $35.58 |
| 14 |
3220-1 |
NUT-JAM Price: $0.99 |
| 15 |
145212 |
Nut Hex Flange Lock Price: Call Us |
| 16 |
54-0110 |
FILTER-OIL, TRANSMISSION Price: $14.20 |
| 17 |
177883 |
Shaft Asm. Steering Price: Call Us |
| 17 |
87-8780 |
HEAD-FILTER Price: $115.55 |
| 19 |
100-8254 |
HOSE-RETURN, AXLE Price: $97.88 |
| 20 |
87-2310 |
CLEVIS-CABLE Price: $14.02 |
| 21 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 22 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 23 |
33025-00 |
NUT-LOCK, NI This part replaces 48-9520. Price: $0.54 |
| 24 |
80-6990 |
WASHER-HARDENED Price: $3.06 |
| 25 |
32128-49 |
NUT-HHF Price: $1.04 |
| 26 |
32128-21 |
NUT-HF Price: $0.39 |
| 27 |
100-8220-03 |
STRAP-MOUNT, TRANSAXLE Price: $34.85 |
| 28 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 29 |
17000612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 29 |
33106-030 |
SCREW-HHF Price: $1.15 |
| 30 |
3234-33 |
SCREW-HHF Price: $0.79 |
| 31 |
3234-32 |
SCREW-HHF Price: $8.48 |
| 32 |
171888 |
Rod Tie Price: Call Us |
| 33 |
87-8250 |
PLATE-ARM, SHIFT Price: $38.85 |
| 34 |
10040500 |
Washer Lock 5/16 Price: Call Us |
| 34 |
323-10 |
SCREW-HH Price: $0.89 |
| 35 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 36 |
155105 |
Bushing Strg Price: Call Us |
| 36 |
87-6910 |
SPRING-COMPRESSION Price: $29.31 |
| 37 |
152927 |
Screw Price: Call Us |
| 37 |
87-7970 |
ARM-SHIFT Price: $53.32 |
| 38 |
159946X428 |
Insert Cap Strg Wh Price: Call Us |
| 39 |
322-7 |
SCREW-HH Price: $0.89 |
| 40 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 40 |
73540500 |
Crownlock Nut 5/16-24 unf Price: Call Us |
| 41 |
100-8293 |
SHAFT-DRIVE, INPUT Price: $896.03 |
| 41 |
159945 |
Adaptor Wheel Strg Price: Call Us |
| 42 |
104-9078 |
TRANSAXLE ASM Price: $7,428.06 |
| 42 |
163888X428 |
Boot Steering Price: Call Us |
| 43 |
121749X |
Washer 25/32 1 1/4 x 16 Ga. Price: Call Us |
| 43 |
3245-32 |
SCREW-HSH Price: $3.59 |
| 44 |
92-3735 |
SEAL-SENSOR, OIL Price: $5.76 |
| 46 |
184946X505 |
Cap Spindle Price: Call Us |
| 65 |
160367 |
Spacer Brace Axle Price: Call Us |
| 67 |
72110618 |
Bolt Rdhd Sqnk 3/8-16 x 2-1/4 Price: Call Us |
| 68 |
169827 |
Axle, Brace Price: Call Us |
| 71 |
175146 |
Steering Asm. Price: Call Us |
| 72 |
19182411 |
Washer 9/16 ID x 1-1/2 OD 11 Ga. Price: Call Us |
| 73 |
160135X428 |
Extension Steering Price: Call Us |
| 82 |
169835 |
Bracket Susp. Chassis Front Price: Call Us |
| 87 |
173966 |
Washer Flat .781 x 1-1/2 x .15 Price: Call Us |
| 88 |
175118 |
Bolt Shoulder 7/16-20 unc Price: Call Us |
| 91 |
175553 |
Clip Steering Price: Call Us |
| 94 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga. Price: Call Us |
