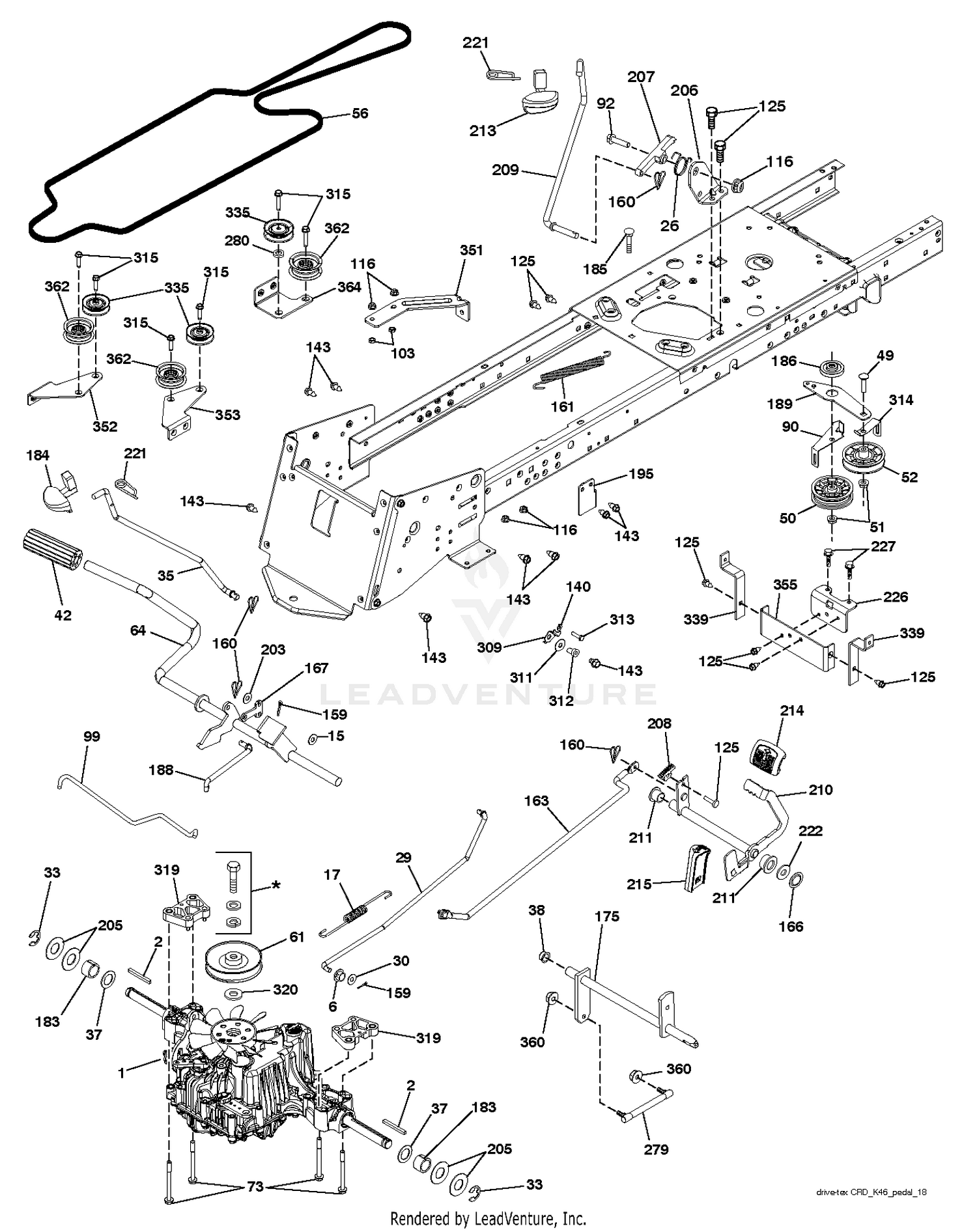

DRIVE

DRIVE

Parts (87)

RefPart NumberDescription
1 95-7522 AXLE Price: $377.20
2 532123583 SQUARE KEY Price: $2.69
2 99-7564 SEAL-OIL Price: $25.36
3 95-7544 CLIP Price: $4.04
4 95-7523 SPACER Price: $26.89
5 99-7555 SHIM 0.3 Price: $3.29
6 532124028 GROMMET T Price: $3.99
6 95-7525 GEAR-BEVEL, 27 TOOTH Price: $333.09
7 99-7534 BEARING-BALL Price: $65.44
8 95-7521 COVER-AXLE Price: $107.87
9 106-1071 O-RING This part replaces 99-7538. Price: $18.43
10 93-7775 BEARING-BALL This part replaces 99-7561. Price: $127.75
11 99-7539 CLIP Price: $11.07
12 104-2374 BOLT This part replaces 99-7596. Price: $6.33
15 819131612 Washer 13/32 x 1 x 12 Ga. This part replaces 819131616. Price: $3.99
17 532436227 Price: $2.99
26 532199679 SPRING.RETURN.CRUISE Price: $2.99
29 532435881 Price: $10.99
30 819131612 Washer 13/32 x 1 x 12 Ga. This part replaces 819131616. Price: $3.99
33 812000001 E-RING LT Price: $2.99
35 532435486 ROD.BRAKE.PARTK.HUSQ.TEX Price: $8.99
37 532188967 WASHER.HARDENED Price: $2.99
38 532169613 NYLINER SNAP 5/8" ID Price: $3.99
42 532008883 Cover, Pedal This part replaces 532124872. Price: $3.49
49 872110614 BOLT Price: $3.99
50 532194327 IDLER.FLAT.910.OFFSET Price: $9.99
51 532409148 NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69
52 532194326 IDLER.V-GROOVE.910.OFFSET Price: $9.99
56 532441834 Price: $83.99
61 532437788 Price: $27.99
64 532197865 SHAFT.ASM.PEDAL.BRK.CNTR Price: $31.99
73 874490556 Price: $2.99
90 532443605 Price: $1.99
92 874520520 Bolt 5/16-18 x 1-1/4 This part replaces 874760520. Price: $2.99
99 532443947 Price: $2.99
103 873220500 Hex, Nut 5/16-18 This part replaces 873350500. Price: $3.99
116 873900500 NUT LOCK HEX FLANGE 5/16-18 Price: $2.99
125 532428867 BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $2.49
140 810040400 LOCKWASHER Price: $3.99
143 817490508 Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99
159 876020412 COTTER PIN Price: $3.99
160 532169484 RETAINER CLIP Price: $4.99
161 532105709 SPRING, RETURN LT Price: $7.99
163 532436632 Price: $60.99
166 532429164 NUT.PUSH.625 Price: $2.99
167 532405257 LATCH.BRAKE.SPRING Price: $2.99
175 532429359 Price: $9.99
183 532137057 SPACER AXLE Price: $3.99
184 532441504 HANDLE.PARKING.BRAKE.LTTEX.667 Price: $5.99
185 872110622 BOLT Price: $3.99
186 532194321 SPACER.RETAINER Price: $3.99
188 532194323 LINK.CLUTCH.GROUND.DRIVE Price: $7.99
189 532433611 Price: $1.99
195 532435865 Price: Call Us
203 734116301 WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.02
205 532121748 WASHER Price: $1.99
206 532197867 BRKT.MOUNT.LATCH.CRUIS Price: $2.99
207 532197868 LATCH.CONTROL.CRUISE Price: $6.99
208 532197869 GEAR.SECTOR.CONTROL.CR Price: $3.99
209 532199592 ROD.CONTROL.CRUISE.GT. Price: $7.99
210 532400980 ROCKER.ASM.PEDAL.CONTR Price: $19.99
211 532120183 BEARING.NYLON Price: $2.99
213 532403119 KNOB.CONTROL.CRUSIE.HU Price: $7.99
214 532421263 PAD PEDAL FORWARD Price: $4.99
215 532419482 Price: $3.99
221 532403187 RETAINER.SPRING.CLIP.H Price: $2.99
222 879212010 WASHER 21/32 X 1-1/4 X 10 GA. Price: $2.99
226 532401564 BRACKET.MOUNT.TORQUE.K46.TLT Price: $12.99
227 539976934 HCS.5/16-18X3/4 This part replaces 817490512. Price: $1.99
279 532444283 Price: $6.99
280 819111012 WASHER T Price: $3.99
309 532165581 PLATE FASTENING LT Price: $2.99
311 532169845 WASHER NYL Price: $2.99
312 532165614 HUB Price: $3.99
313 874780416 BOLT Price: $3.99
314 532444713 Price: $1.99
315 817580520 BOLT.5/16-18X1.25 Price: $2.99
319 532436794 Price: $5.99
320 532187690 WASHER.SPACER.MANDREL Price: $1.99
335 532199534 PULLEY.V-IDLER. Price: $22.99
339 532436867 Price: $1.99
351 532436998 Price: $2.99
352 532435819 Price: $2.99
353 532436577 Price: $2.99
355 532435669 Price: $2.99
360 532199592 ROD.CONTROL.CRUISE.GT. Price: $7.99
362 532436812 Price: $16.99
