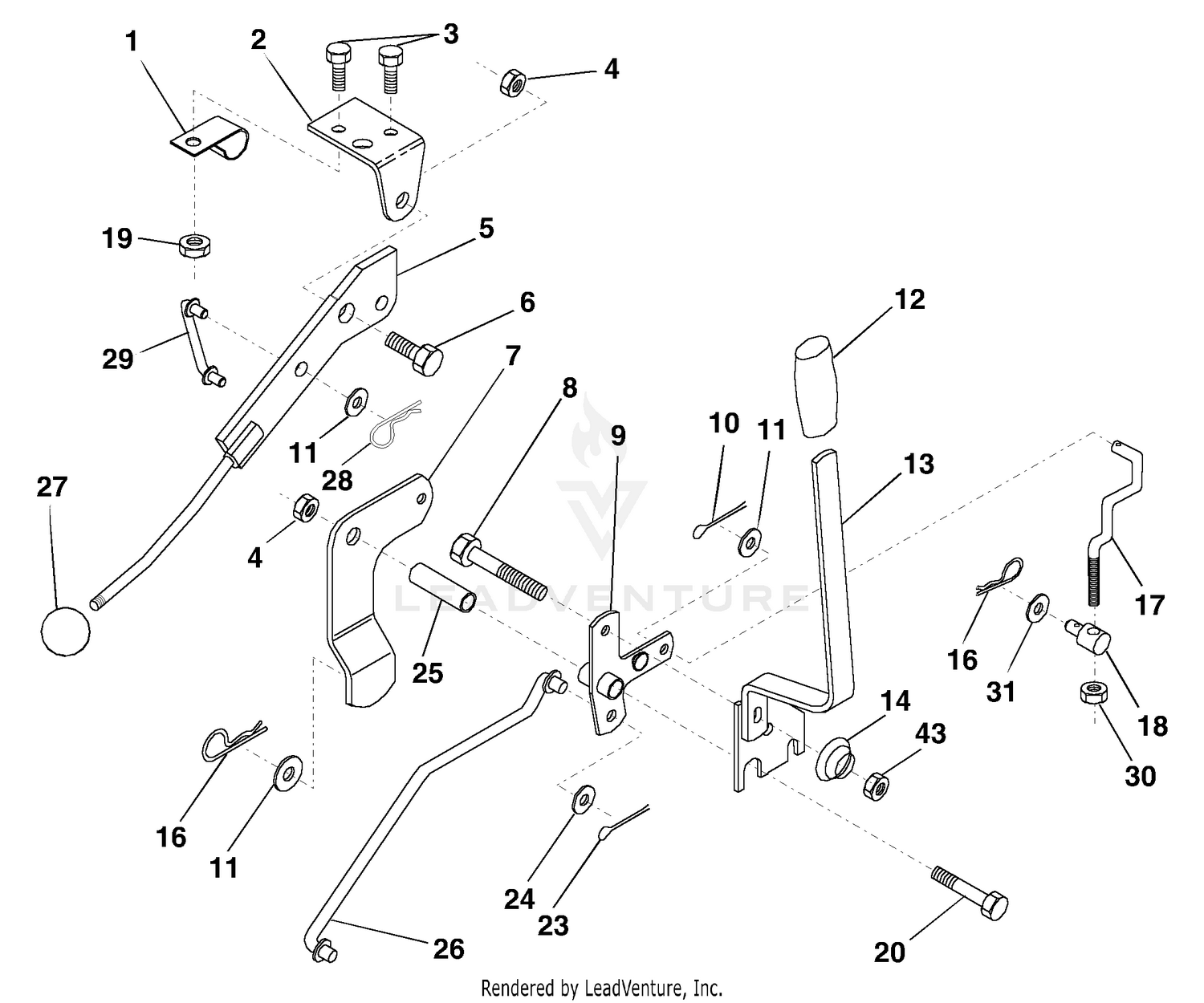

| Ref | Part Number | Description |
|---|
| 1 |
532126470 |
CLIP,INSULATOR Price: $3.99 |
| 1 |
93-5645 |
CENTER SHROUD ASM This part replaces 93-5082. Price: $2,188.91 |
| 2 |
532122018 |
BRKT CLUTCH Price: $2.38 |
| 2 |
95-6135 |
ROPS ASM-GM3000 This part replaces 93-5044. Price: $1,067.55 |
| 3 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 3 |
93-5253 |
STRIP-FOAM, HOOD Price: $21.16 |
| 4 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 4 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 5 |
110-4109 |
HOSE-FUEL This part replaces 93-5482. Price: $11.24 |
| 5 |
532145187 |
CLUTCH LEVER Price: $5.69 |
| 6 |
109-0308 |
HOSE-FUEL This part replaces 93-5484. Price: $10.99 |
| 6 |
532106451 |
BOLT, SHOULDER LT Price: $2.99 |
| 7 |
532135371 |
ASSEMBLY MOWER CLUTCH ARM Price: $7.93 |
| 7 |
93-5083 |
HOSE-CLEANER, AIR Price: $167.33 |
| 8 |
2412-110 |
CLAMP-BAND/SCREW Price: $3.60 |
| 8 |
874760636 |
BOLT Price: $4.99 |
| 9 |
532121930 |
BELLCRANK,LIFT Price: $11.99 |
| 9 |
93-5111 |
CLEANER-AIR Price: $474.66 |
| 10 |
2412-130 |
CLAMP-HOSE Price: $2.57 |
| 10 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 11 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 11 |
93-5427 |
SPACER-INTAKE Price: $5.82 |
| 12 |
532131861 |
HANDLE GRIP Price: $3.99 |
| 12 |
93-5084 |
HOSE-CLEANER, AIR Price: $83.18 |
| 13 |
532139352 |
LIFT HANDLE ASSY Price: $15.88 |
| 13 |
93-5420 |
SCREW-HH Price: $1.63 |
| 14 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 14 |
532123496 |
SPRING COMPRESSIO Price: $2.99 |
| 15 |
93-5157-03 |
BAR-ROPS ASM This part replaces 93-5157. Price: $133.96 |
| 16 |
33004-00 |
NUT-HF Price: $0.34 |
| 16 |
532004921 |
COTTER PIN This part replaces 532124961. Price: $4.99 |
| 17 |
532127359 |
LINK LIFT FRT Price: $19.99 |
| 17 |
94-8099 |
DECAL This part replaces 94-3395. Price: $16.38 |
| 18 |
33104-016 |
SCREW-HHF Price: $0.97 |
| 18 |
532142028 |
TRUNNION.ADJUSTABLE.3/8-16 Price: $3.99 |
| 19 |
33094-00 |
WASHER-PLAIN Price: $0.25 |
| 19 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 20 |
33104-020 |
SCREW-HHF Price: $2.07 |
| 20 |
874760644 |
BOLT Price: $3.99 |
| 21 |
93-5638 |
COVER-TUBE Price: $18.82 |
| 22 |
33113-020 |
SCREW-HH Price: $0.26 |
| 23 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 24 |
596040101 |
Washers This part replaces 819171612. Price: $2.99 |
| 25 |
532121933 |
TUBE SPACER Price: $4.28 |
| 26 |
532141470 |
LIFT ROD Price: $14.65 |
| 27 |
532106932 |
KNOB T (3/8 HOLE) Price: $6.99 |
| 28 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 29 |
532131655 |
LINK MOWER CLUTCH Price: $4.99 |
| 30 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 31 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
