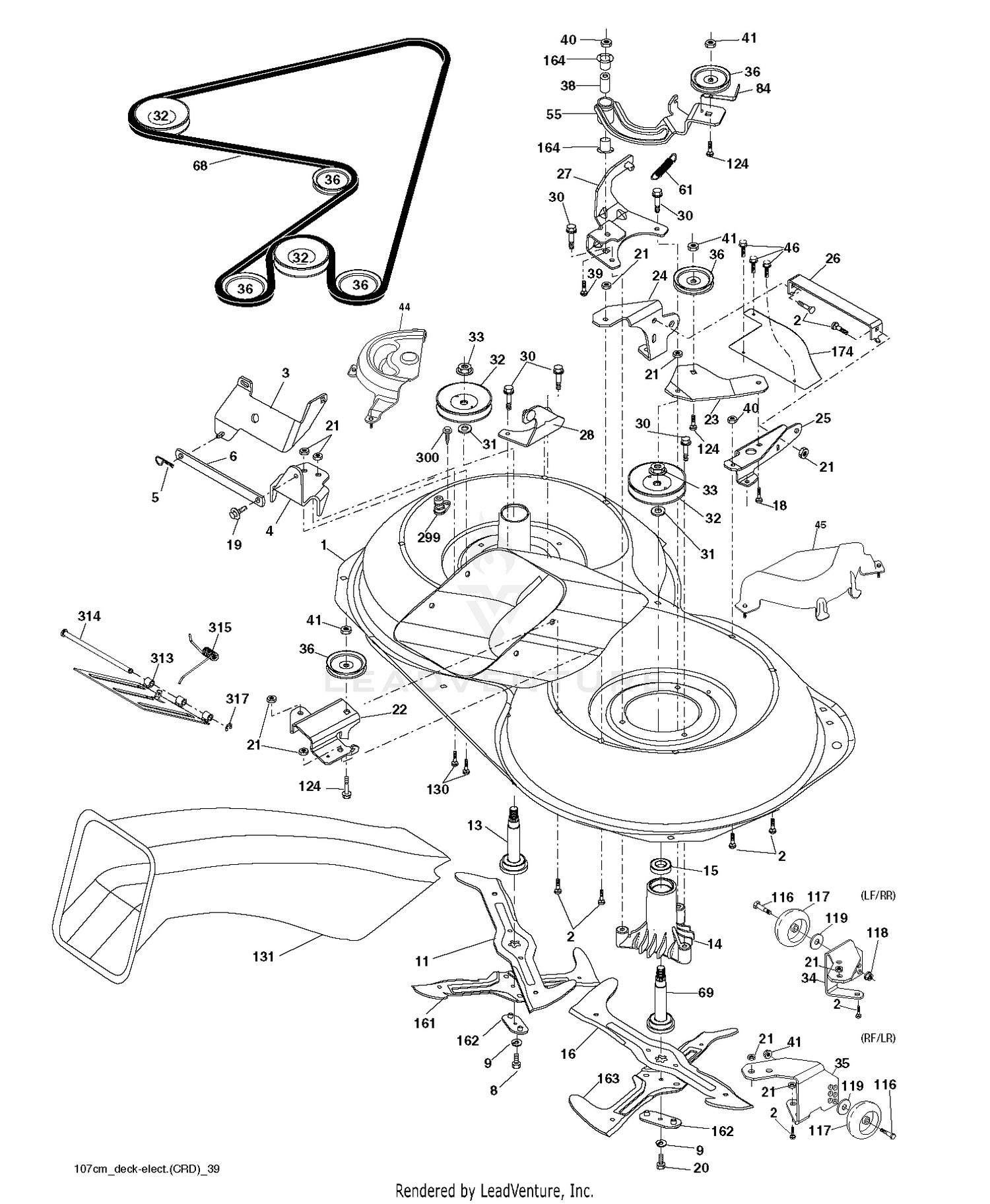

| Ref | Part Number | Description |
|---|
| 1 |
49-5430 |
ROD-CONTROL Price: $75.94 |
| 1 |
532175790 |
Price: Call Us |
| 2 |
3220-2 |
NUT-JAM Price: $0.50 |
| 2 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 3 |
282-2 |
YOKE Price: $30.04 |
| 3 |
532431864 |
BRACKET.ASM.BAR.SWAY.CHASS Price: $19.99 |
| 4 |
283-61 |
PIN-YOKE Price: $1.56 |
| 4 |
532169167 |
BRACKET Price: $14.76 |
| 5 |
44-0870 |
CAM SHAFT ASM Price: $213.32 |
| 5 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 6 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 6 |
532165557 |
BAR.SWAY.92.CRD Price: $6.99 |
| 7 |
27-2320 |
BEARING Price: $15.22 |
| 8 |
283-57 |
PIN-CLEVIS Price: $1.15 |
| 8 |
583116901 |
BOLT.3/8-24X1.25 GR8 This part replaces 532181712. Price: $5.99 |
| 9 |
49-6220 |
BRACKET-ARM, CONTROL Price: $28.06 |
| 9 |
596238701 |
Washers This part replaces 810030600. Price: $3.99 |
| 10 |
256-251 |
BUSHING Price: $2.46 |
| 11 |
233-48 |
KNOB Price: $10.92 |
| 11 |
532180583 |
BLADE.3N1.LH.CRD Price: $27.99 |
| 12 |
93-9934 |
TRACTION HANDLE ASM Price: $86.68 |
| 13 |
3272-4 |
PIN-COTTER Price: $0.25 |
| 13 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $29.99 |
| 14 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 14 |
532128774 |
HOUSING.MANDREL.VENTED (MACHD) Price: $29.99 |
| 15 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 16 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 16 |
532180584 |
BLADE.3N1.RH.CRD Price: $27.99 |
| 17 |
57-6220 |
LINK-CONNECTING Price: $6.01 |
| 18 |
3254-6 |
WASHER-LOCK, INTERNAL Price: $0.31 |
| 18 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 19 |
3211-2 |
SCREW-HH Price: $2.17 |
| 19 |
532132827 |
BOLT SHD 5/16-18 Price: $4.99 |
| 20 |
583117001 |
BOLT.3/8-24X1.25GR8. LHTHRD This part replaces 532181713. Price: $3.99 |
| 20 |
HY2562 |
DISCONTINUED This part replaces 256-2. Price: Call Us |
| 21 |
49-6260 |
PIVOT ASM Price: $79.73 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 22 |
3296-4 |
NUT-LOCK Price: $0.25 |
| 22 |
532169165 |
BRACKET.IDLER.RR.107.CRD Price: $12.99 |
| 23 |
532169166 |
BRACKET Price: $22.99 |
| 23 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 24 |
583341901 |
BRKT.SPENSION.LH.107.CRD This part replaces 532413436. Price: $22.99 |
| 24 |
83-0540-01 |
TRACTION PEDAL ASM This part replaces 83-0540. Price: $70.97 |
| 25 |
583259001 |
BRKT.SUSP.RF.CRD.107.2006 This part replaces 532400105. Price: $34.99 |
| 25 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 26 |
256-155 |
BUSHING-FLANGE Price: $1.76 |
| 26 |
583259301 |
BRACE.SUSP.FRONT.CRD/36.2006 This part replaces 532400110. Price: $29.99 |
| 27 |
32128-20 |
NUT-HF Price: $0.99 |
| 27 |
532169172 |
BRACKET Price: $24.99 |
| 28 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 28 |
583029401 |
BRACKET.ASM.SUSP.LR.107.CRD This part replaces 532169168. Price: $22.99 |
| 29 |
83-0630 |
ARM-PIVOT, TRACTION Price: $25.47 |
| 30 |
2411-42 |
JOINT-BALL, LH Price: $19.07 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
3220-20 |
NUT-JAM Price: $0.92 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
532198145 |
PULLEY.MANDREL.4.80 PD.2006 Price: $7.99 |
| 32 |
83-0580 |
ROD-CONTROL, TRACTION Price: $53.72 |
| 33 |
2411-43 |
JOINT-BALL Price: $21.40 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
17-9420 |
SCREW-HANDLE Price: $3.49 |
| 34 |
583258801 |
BRKT.GA.WHL.LF/RR.107.2006 This part replaces 532400103. Price: $22.99 |
| 35 |
49-6250 |
BRACKET-PIVOT Price: $22.09 |
| 35 |
583258901 |
BRKT.GA.WHL.RF/LR.107.2006 This part replaces 532400104. Price: $19.99 |
| 36 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 36 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 37 |
49-6290 |
PIVOT SHAFT ASM Price: $25.43 |
| 38 |
12-3270 |
SCREW Price: $3.09 |
| 38 |
532169851 |
SPACER Price: $8.99 |
| 39 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 39 |
872110622 |
BOLT Price: $3.99 |
| 40 |
47-5320-01 |
LEVER This part replaces 47-5320. Price: $84.02 |
| 40 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 41 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 41 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 42 |
49-6440-03 |
PEDAL-FORWARD This part replaces 49-6440. Price: $84.90 |
| 43 |
32121-51 |
PIN-ROLL Price: $0.70 |
| 44 |
583480701 |
COVER.ASY.107.CRD.LH This part replaces 532432404. Price: $45.99 |
| 44 |
93-9936 |
BRACKET-RETURN, TRACTION Price: $6.79 |
| 45 |
583480801 |
COVER.ASY.107.CRD.RH This part replaces 532432405. Price: $49.99 |
| 45 |
93-9937 |
TRACTION CABLE ASM Price: $28.43 |
| 46 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 47 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 55 |
531149401 |
SERVICE KIT ARM.IDLER ARM.IDLE This part replaces 532169849. Price: $17.99 |
| 61 |
583252701 |
SPRING.TENSION.107.CRD.2006 This part replaces 532199487. Price: $7.99 |
| 68 |
547597001 |
DRIVE BELT HEX-BELT 107 MOWER This part replaces 532402009. Price: $59.99 |
| 69 |
532165482 |
SHAFT.ASM.W/LWR.BRG.RH.THREAD Price: $59.99 |
| 84 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 116 |
596434404 |
Bolts This part replaces 532193406. Price: $4.99 |
| 117 |
589527301 |
WHEEL.GAUGE.RALLY This part replaces 532174873. Price: $8.99 |
| 118 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 119 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 124 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 130 |
872110506 |
BOLT.CARR.SQNK.5/16-18UNC.X3/4 Price: $3.99 |
| 131 |
532438163 |
Price: Call Us |
| 161 |
532180424 |
Price: Call Us |
| 162 |
532180878 |
Price: Call Us |
| 163 |
532180425 |
BLADE.CROSS.RH.CRD.107 Price: $39.99 |
| 164 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $3.99 |
| 174 |
583260201 |
GUARD.SUSP.FRONT.107.2006 This part replaces 532400240. Price: $8.99 |
| 299 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 300 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 313 |
583527801 |
DOOR.EZ.MULCH.107.CRD This part replaces 532438197. Price: $7.99 |
| 314 |
583507401 |
PIN.HINGE This part replaces 532435861. Price: $5.99 |
| 315 |
532439928 |
Price: Call Us |
| 317 |
532437988 |
E-RING.5/16" Price: $7.99 |
