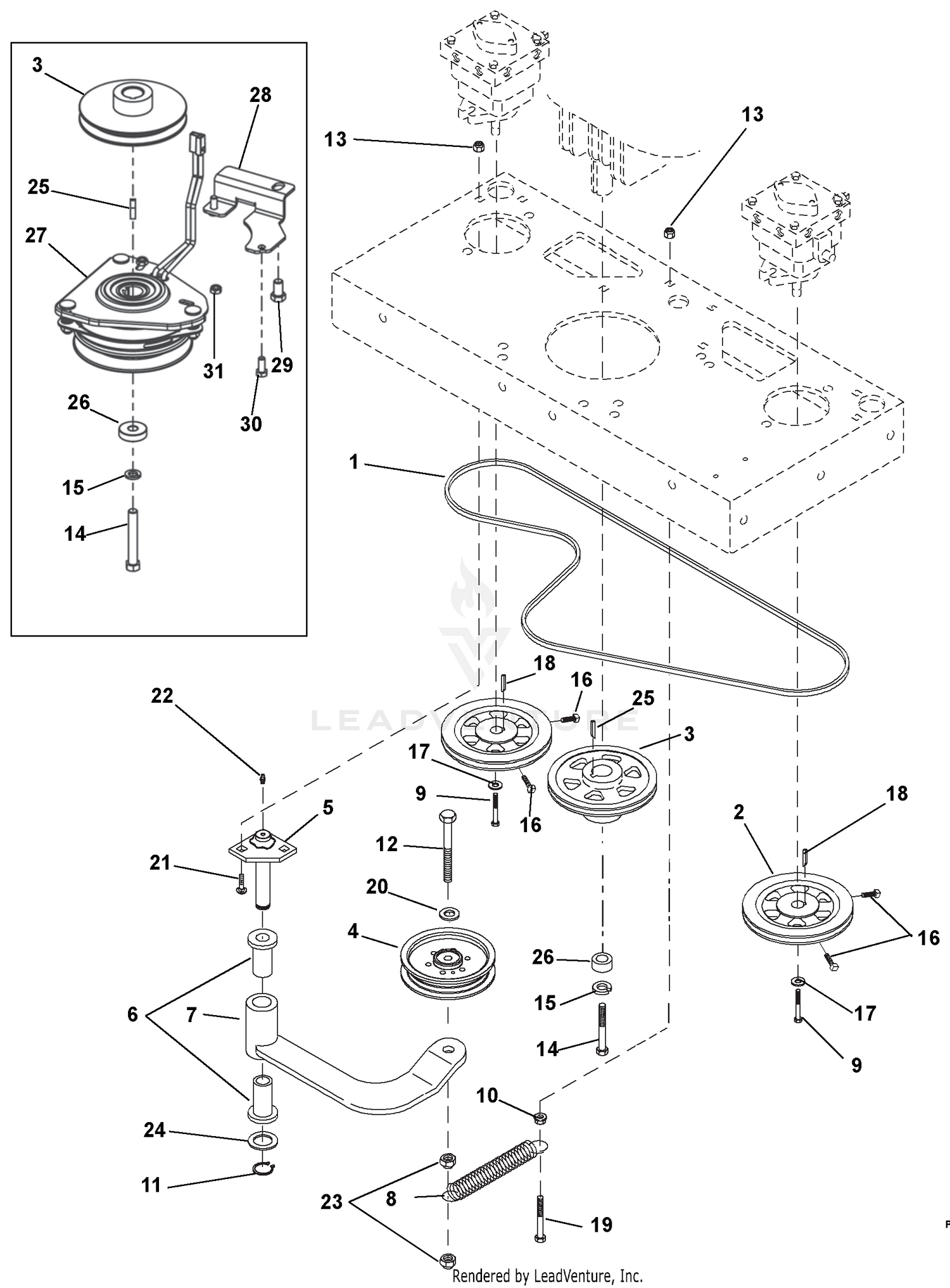

| Ref | Part Number | Description |
|---|
| 1 |
GDU10025 |
BELT, DRIVE, PUMP Price: $35.95 |
| 2 |
TCA15316 |
ASSY, PUMP PULLEY W/SET SCREW Price: $45.95 |
| 3 |
D28091 |
PULLEY Price: Call Us |
| 4 |
07350100 |
IDLER, FLAT - 4.06" X .75" This part replaces 07300039. Price: $43.95 |
| 5 |
GDA10004 |
WLDT, PIVOT IDLER MOUNT Price: Call Us |
| 6 |
D18403 |
BUSHING Price: $8.45 |
| 7 |
GDA10005 |
ARM, IDLER WELDMENT Price: $62.45 |
| 8 |
D18071 |
SPRING, EXT .900X.135X4.50 Y Price: $10.45 |
| 9 |
05900124 |
BOLT, M6X1.00X10 HEX 8.8 Y Price: Call Us |
| 10 |
06500034 |
LOCKNUT, M10X1.50 WHIZ GR10 Y Price: $2.95 |
| 11 |
00403490 |
SNAP RING, .750 X .042 EXT Price: Call Us |
| 12 |
05901812 |
BLT, HEX .38-16X2.50 G5 ZCC This part replaces 05958400. Price: $2.45 |
| 14 |
05900037 |
BLT-HEX .44-20X3.00 G5 YZ EP80 Price: $6.45 |
| 15 |
06300121 |
WSHR, LK-REG .438X.109 ZCC This part replaces 06309300. Price: $2.45 |
| 16 |
06000002 |
SET SCREW Price: $2.45 |
| 17 |
06308000 |
WSHR-LK .250X.077 HVY YWZC Price: $0.45 |
| 18 |
D18067 |
SHAFT KEY This part replaces 06600005. Price: $5.95 |
| 19 |
05900113 |
CAP SCREW, SPRING ANCHOR M10 X Price: $2.95 |
| 20 |
06401013 |
WSHR-FLT .406X.812X.065 ZCC This part replaces 06436200. Price: $0.95 |
| 21 |
06200015 |
CARRIAGE BOLT, M10 X 1.5 X 25 Price: $2.95 |
| 22 |
00959995 |
FTG, 1/4-28 STRGT GREASE ZERK Price: $3.45 |
| 23 |
06500825 |
NUT-LK-CTR .38-16 ZC120 This part replaces 06529600. Price: $0.95 |
| 24 |
00150052 |
WSHR-FL-STL .750X1.250X.048 YZ Price: $4.45 |
| 25 |
D18145 |
KEY, .250 X .250 X .995 TPR This part replaces 06600007. Price: $6.45 |
| 26 |
D18056 |
SPACER, .468 X 1.38 X .375 Y Price: $19.45 |
| 27 |
00200665 |
CLUTCH ASSY, OGURA# GT1A-HU02 Price: $296.95 |
| 28 |
00200666 |
PLATE, CLUTCH DOG Price: $45.95 |
