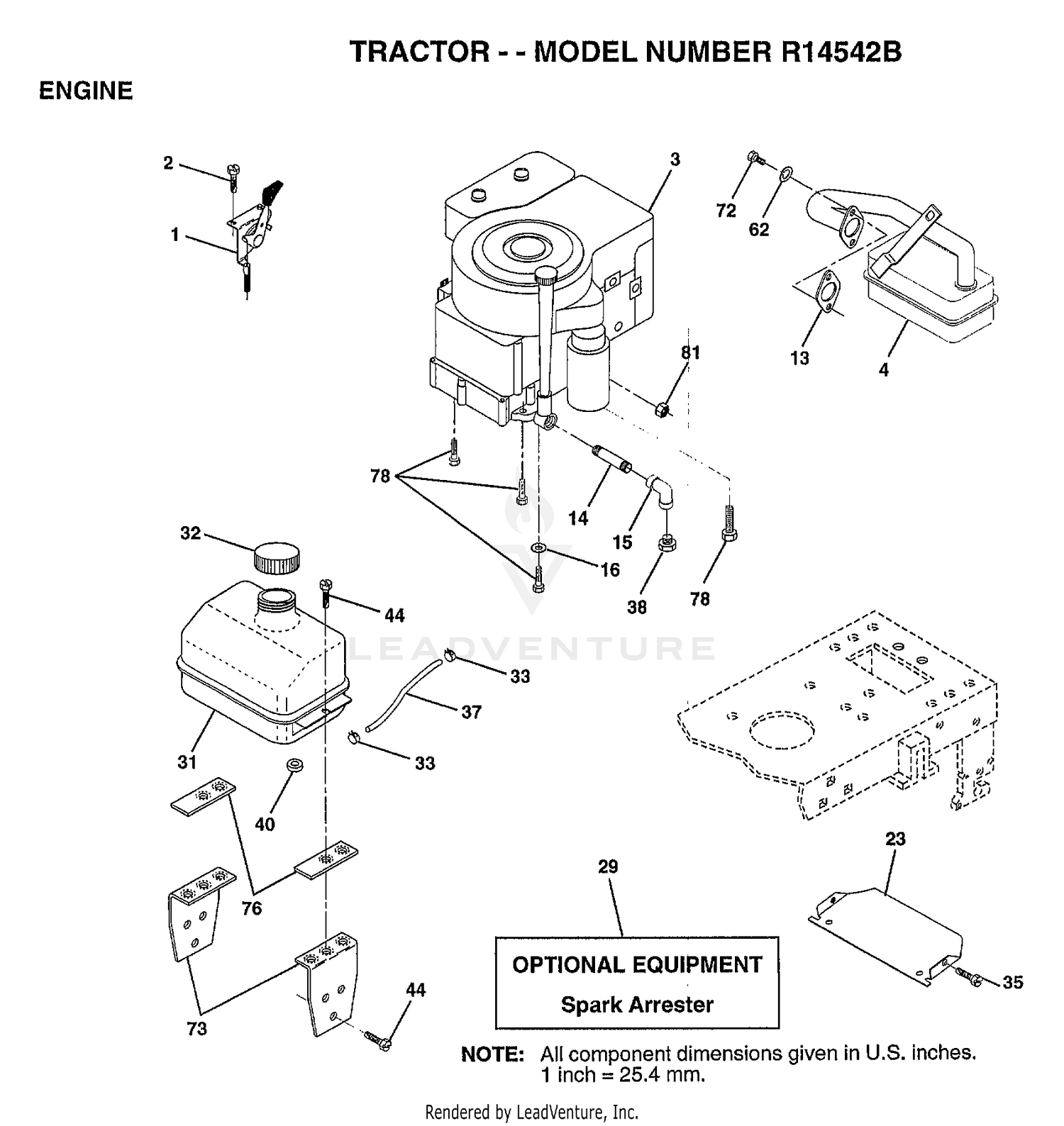

| Ref | Part Number | Description |
|---|
| 1 |
110-8230 |
LH FUEL TANK ASM Price: $616.95 |
| 1 |
132770 |
THROTTLE CONTROL Price: Call Us |
| 2 |
110-8236 |
RH FUEL TANK ASM Price: $616.95 |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 3 |
287707 |
ENGINE B&S Price: Call Us |
| 3 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 4 |
110-8261 |
TUBE-VENT, LH Price: $45.53 |
| 4 |
137352 |
MUFFLER Price: Call Us |
| 5 |
110-8260 |
TUBE-VENT, RH Price: $45.53 |
| 6 |
110-6186 |
HOSE-FUEL Price: $15.70 |
| 7 |
354-107 |
FITTING-HYD, TEE Price: $7.14 |
| 8 |
104-7201 |
NUT-HF Price: $0.69 |
| 9 |
106-1126 |
HOSE-FUEL Price: $10.06 |
| 10 |
104-5215 |
PUMP-FUEL, ELECTRIC Price: $264.12 |
| 11 |
112-6388 |
HOSE-FUEL Price: $12.56 |
| 12 |
2412-147 |
CLAMP-R Price: $2.51 |
| 13 |
119-4162 |
SCREW-CARR This part replaces 323-13. Price: $1.73 |
| 13 |
272293 |
GASKET ENG 1 313 LD TIN PLATED Price: Call Us |
| 14 |
13280324 |
PIPE NIPPLE Price: Call Us |
| 14 |
98-7612 |
FILTER-FUEL Price: $10.48 |
| 15 |
13200300 |
ELBOW Price: Call Us |
| 15 |
92-2379 |
CLAMP-HOSE Price: $0.34 |
| 16 |
11050600 |
LOCKWASHER Price: Call Us |
| 16 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 17 |
32149-8 |
NUT-KEPS Price: $0.88 |
| 18 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 19 |
92-1239 |
SPACER-SUPPORT Price: $16.42 |
| 20 |
2412-89 |
CLAMP-R Price: $2.09 |
| 21 |
144-7257 |
DECAL-SERVICE INSTRUCTIONS This part replaces 110-8252. Price: $19.95 |
| 22 |
107-4543 |
CLAMP Price: $13.47 |
| 23 |
156123 |
SHIELD-HEAT Price: Call Us |
| 23 |
322-10 |
SCREW-HH Price: $0.70 |
| 24 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 25 |
110-5539 |
SPACER Price: $18.21 |
| 26 |
105-6814 |
WASHER-PLAIN Price: $0.69 |
| 27 |
323-39 |
SCREW-HH Price: $1.60 |
| 28 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 29 |
110-5540-03 |
COVER-TOOLBOX Price: $31.98 |
| 29 |
137180 |
SUB= 532137180 Price: Call Us |
| 30 |
112-6349 |
SCREW-HWH Price: $0.27 |
| 31 |
109202X |
TANK.FUEL.LT. Price: Call Us |
| 31 |
110-9662 |
HOSE-FUEL Price: $31.52 |
| 32 |
108-2024 |
HINGE Price: $54.81 |
| 32 |
140527 |
CAP ASM FUEL Price: Call Us |
| 33 |
123487X |
HOSE CLAMP Price: Call Us |
| 33 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 34 |
2412-137 |
CLAMP-R, DOUBLE Price: $5.08 |
| 35 |
17490512 |
SCREW Price: Call Us |
| 35 |
3290-412 |
RIVET-BLIND Price: $3.19 |
| 36 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 37 |
137040 |
LINE FUEL Price: Call Us |
| 37 |
95-1905 |
WASHER-RUBBER Price: $1.89 |
| 40 |
110436X |
SUB= 9151R Price: Call Us |
| 44 |
17490612 |
SCREW Price: Call Us |
| 62 |
10040500 |
LOCKWASHER Price: Call Us |
| 72 |
71070512 |
SCREW Price: Call Us |
| 73 |
128229 |
BRKT FUEL TANK T Price: Call Us |
| 78 |
17490620 |
SCREW Price: Call Us |
