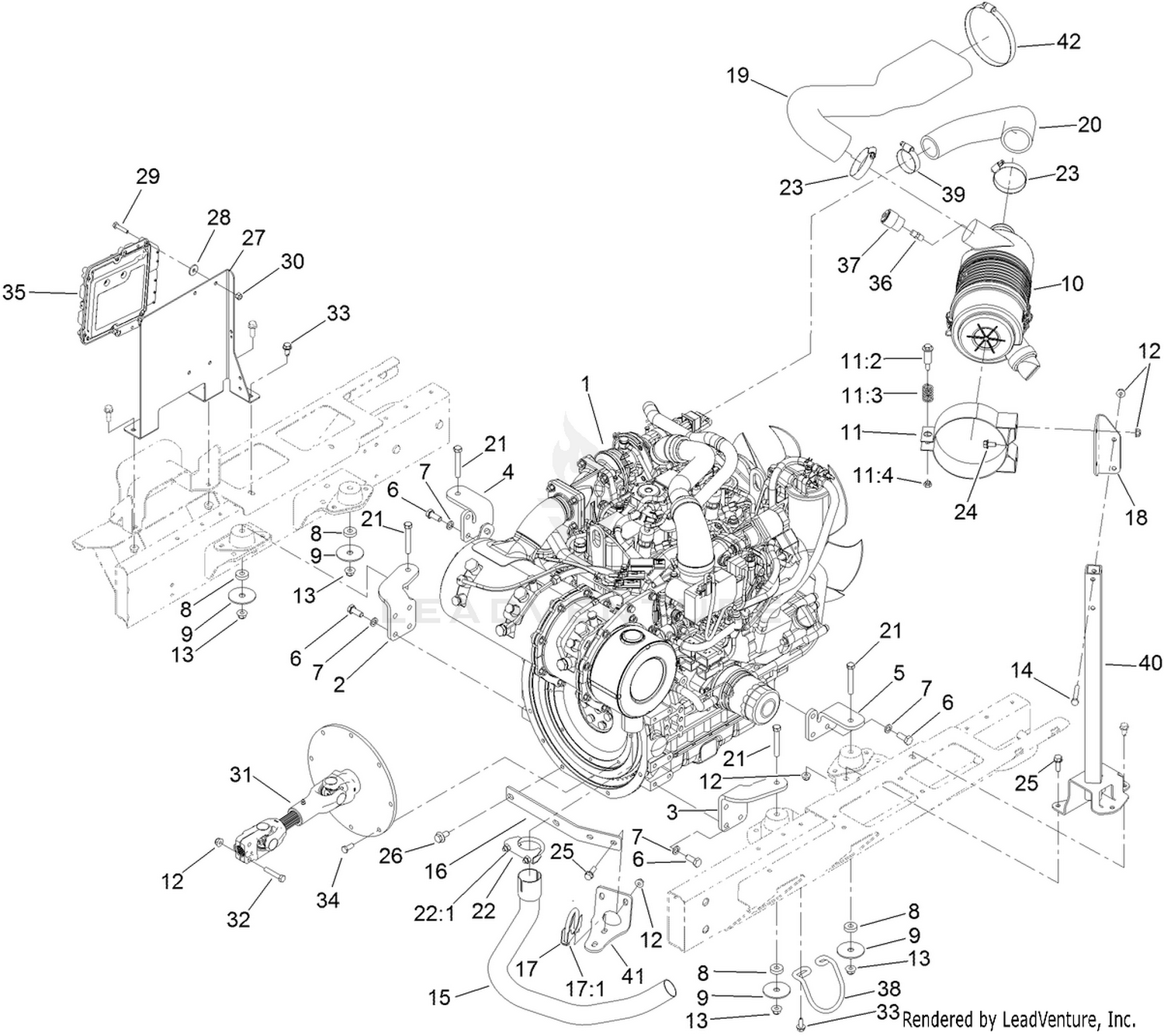

| Ref | Part Number | Description |
|---|
| 1 |
138-6916 |
ENGINE-YANMAR,3TNV86CT This part replaces 120-3797. Price: $16,080.77 |
| 2 |
120-3777-0P |
MOUNT-ENGINE RF This part replaces 120-3777-03. Price: $32.30 |
| 3 |
120-3778-0P |
MOUNT-ENGINE LF This part replaces 120-3778-03. Price: $32.30 |
| 4 |
120-3779-0P |
MOUNT-ENGINE RR This part replaces 120-3779-03. Price: $22.62 |
| 5 |
120-3780-0P |
MOUNT-ENGINE LR This part replaces 120-3780-03. Price: $25.60 |
| 6 |
33115-025 |
SCREW-HH Price: $0.61 |
| 7 |
48-9590 |
WASHER-LOCK Price: $0.25 |
| 8 |
62-6660 |
SPACER Price: $0.79 |
| 9 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 10 |
98-4517 |
AIR CLEANER ASM Price: $272.15 |
| 11 |
100-4825 |
BAND-MOUNTING, AIR CLEANER Price: $80.59 |
| 12 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 13 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 14 |
322-10 |
SCREW-HH Price: $0.70 |
| 15 |
120-3790 |
TUBE-EXHAUST Price: $118.85 |
| 16 |
121-5594-0P |
BRACKET-TAILPIPE This part replaces 121-5594-03. Price: $16.18 |
| 17 |
2112-9 |
CLAMP Price: $7.78 |
| 18 |
120-6298-0P |
BRACKET-AIRCLEANER This part replaces 120-6298-03. Price: $18.23 |
| 19 |
121-5559 |
HOSE-AIR CLEANER Price: $183.02 |
| 20 |
133-2991 |
HOSE-AC, OUT This part replaces 121-5560. Price: $32.31 |
| 21 |
323-12 |
SCREW-HH Price: $1.14 |
| 22 |
2112-6 |
CLAMP-MUFFLER Price: $7.53 |
| 23 |
2412-125 |
CLAMP-HOSE Price: $5.22 |
| 24 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 25 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 26 |
33105-020 |
SCREW-HHF Price: $0.54 |
| 27 |
127-2712-03 |
BRACKET-ECU Price: $40.93 |
| 28 |
66-2921 |
WASHER-FRICTION Price: $2.17 |
| 29 |
321-8 |
SCREW-HH Price: $0.34 |
| 30 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 31 |
133-2996 |
DRIVESHAFT KIT This part replaces 120-3756. Price: $936.29 |
| 32 |
322-9 |
SCREW-HH Price: $3.09 |
| 33 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 34 |
33114-020 |
SCREW-HH Price: $0.28 |
| 35 |
121-5592 |
CONTROLLER-ENGINE Price: $3,077.07 |
| 36 |
94-1416 |
ADAPTER-INDICATOR Price: $11.87 |
| 37 |
93-9164 |
INDICATOR-MINI Price: $55.24 |
| 38 |
127-2612 |
GUARD-PIPE, TAIL Price: $11.72 |
| 39 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 40 |
120-2949-0P |
STAND ASM [PRIMED] This part replaces 120-2949-03. Price: $147.91 |
| 41 |
121-5595-03 |
BRACKET-TAILPIPE Price: $16.18 |
