| Ref | Part Number | Description |
|---|
| 1 |
3219-2 |
NUT-HEX Price: $0.37 |
| 2 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 3 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 4 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 5 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 6 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 7 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 9 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 10 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 12 |
21-7830 |
COVER-GEAR Price: $26.87 |
| 13 |
12-5450 |
SCREW Price: $7.99 |
| 14 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 15 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 16 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 17 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 18 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 19 |
3210-7 |
SCREW-HH Price: $0.61 |
| 20 |
71-4350 |
NUT Price: $3.46 |
| 21 |
71-4340 |
WASHER Price: $15.47 |
| 22 |
68-7010 |
FLANGE Price: $306.32 |
| 23 |
71-4330 |
SEAL Price: $36.26 |
| 24 |
72-3572 |
SHIM-BEARING, FRONT (.098) This part replaces 72-3570. Price: $23.68 |
| 24 |
72-3573 |
SHIM-BEARING, FRONT (.100) Price: $24.63 |
| 25 |
254-91 |
CONE-BEARING Price: $18.65 |
| 26 |
254-90 |
BEARING-CUP Price: $11.29 |
| 27 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 28 |
86-9610 |
UPPER HOUSING SUB ASM Price: $1,155.01 |
| 29 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 30 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 32 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 33 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 34 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 35 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 36 |
43-6840 |
HOUSING-LOWER Price: $1,467.48 |
| 37 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 38 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 39 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 40 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 41 |
72-9420 |
VENT Price: $6.85 |

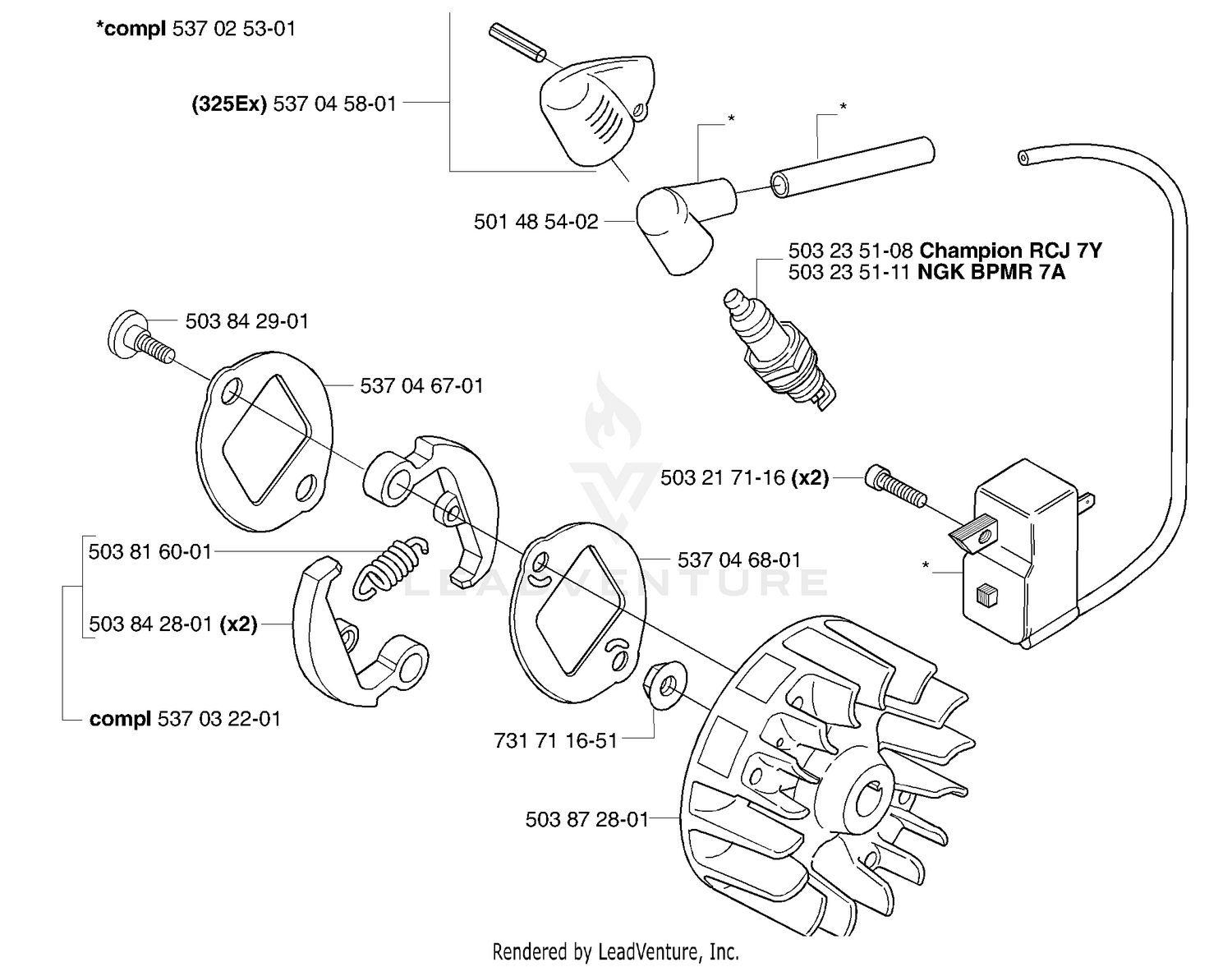

| 501485402 |
501485402 |
SPARK PLUG CONN. KIT Price: $6.99 |
| 503217116 |
586444901 |
SCREW This part replaces 503217116. Price: $2.99 |
| 503235111 |
503235111 |
SPARK PLUG M14X1.25 NGK BPMR7A Price: $4.99 |
| 503816001 |
503816001 |
SPRING Price: $5.99 |
| 503842801 |
503842801 |
CLUTCH Price: $12.99 |
| 503842901 |
503842902 |
SCREW This part replaces 503842901. Price: $3.99 |
| 503872801 |
537249602 |
FLYWHEEL This part replaces 503872801. Price: $24.99 |
| 537045801 |
537045801 |
COVER Price: $4.99 |
| 537046701 |
537046702 |
WASHER, CLUTCH This part replaces 537046701. Price: $4.99 |
| 731711651 |
731711651 |
FLANGE NUT Price: $3.99 |
