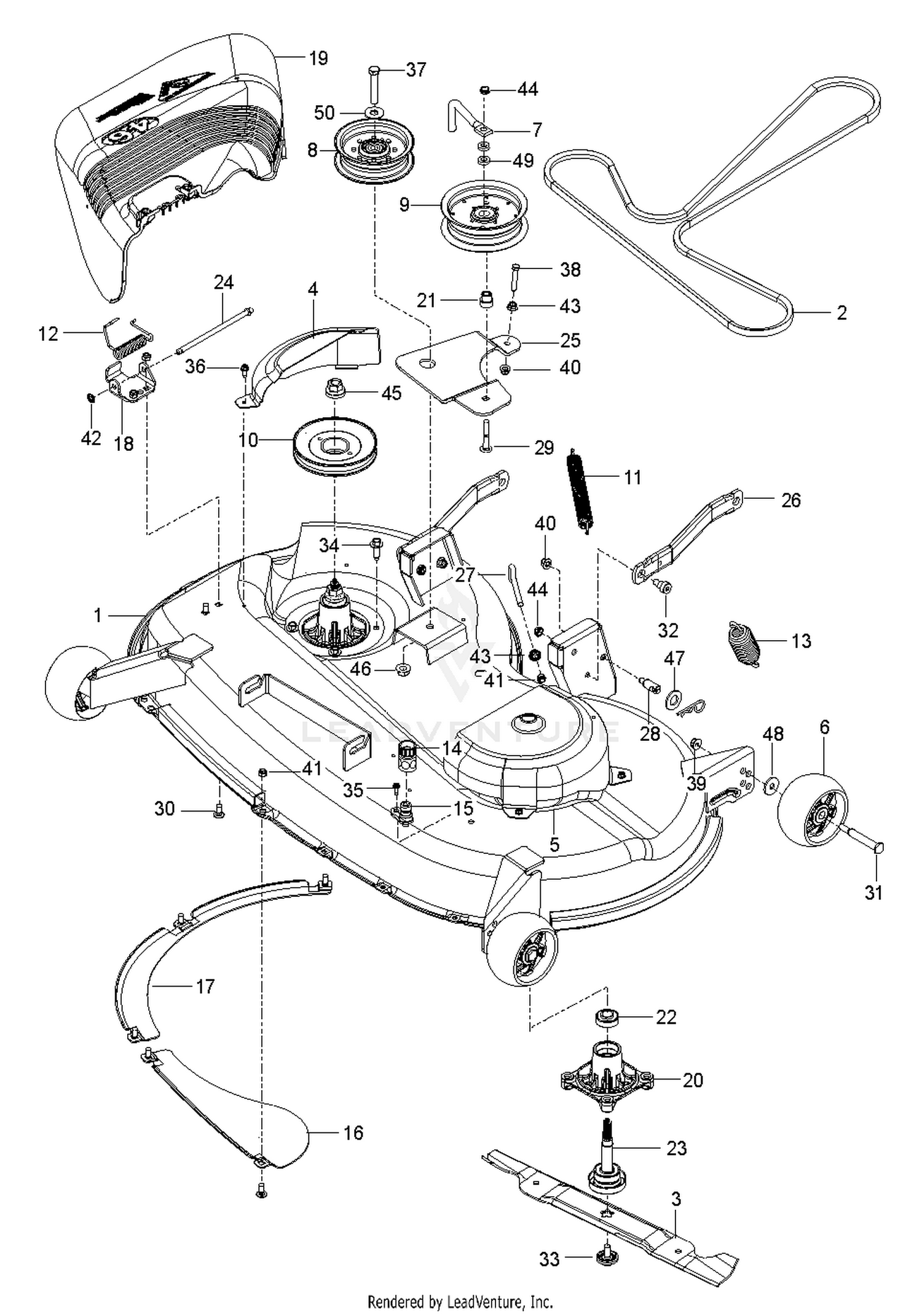

| Ref | Part Number | Description |
|---|
| 1 |
596827201 |
KIT.46"DECK.W/PACKAGING&DECAL Price: $349.99 |
| 2 |
539117245 |
V-BELT Price: $49.99 |
| 3 |
532405380 |
BLADE.MOWER.46".HI.LIFT Price: $14.99 |
| 4 |
591060002 |
COVER 46 XFAB TRACTOR RH MANDR Price: $9.99 |
| 5 |
532405507 |
COVER.MANDREL.LH.46" Price: $29.99 |
| 6 |
589527301 |
WHEEL.GAUGE.RALLY Price: $2.99 |
| 7 |
522629701 |
BELT KEEPER 5" Price: $2.99 |
| 8 |
532196104 |
PULLEY.IDLER.MWR.STATIONARY.LH Price: $22.99 |
| 9 |
539132728 |
PULLEY, IDLER Price: $22.99 |
| 10 |
588586601 |
PULLEY.MANDREL.46" Price: $14.99 |
| 11 |
582504001 |
SPRING.EXTENSION Price: $3.99 |
| 12 |
539107609 |
TORSION SPRING This part replaces 532178102. Price: $1.99 |
| 13 |
539118762 |
SPRING Price: $17.99 |
| 14 |
532416405 |
COUPLING.QUICK CONNECT Price: $5.99 |
| 15 |
532415598 |
PORT.WASHOUT Price: $5.99 |
| 16 |
532403149 |
BAFFLE CENTER FRONT Price: $11.99 |
| 17 |
532403150 |
BAFFLE FRONT RH Price: $11.99 |
| 18 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $3.99 |
| 19 |
532405357 |
SHIELD.DEFLECTOR.MOWER.46"BLAC Price: $44.99 |
| 20 |
587125201 |
MANDREL.W/SPCR.BRG.SHRT.NONRVL Price: $27.99 |
| 21 |
539112076 |
IDLER BUSHING Price: $6.99 |
| 22 |
585323901 |
BEARING.MANDREL.TOP.EXTENDED Price: $7.99 |
| 23 |
587255601 |
SHAFT Price: $27.99 |
| 24 |
532131491 |
Rod Hinge 42" 6 75 Wlg (AYP part number) Price: $1.99 |
| 25 |
588096402 |
ARM.PNT.CLTCHG.STMP.46.RZ.EDIP Price: $19.99 |
| 26 |
532195185 |
ARM.SUSPENSION.MOWER Price: $11.99 |
| 27 |
539115574 |
EYE BOLT 5/16 X 3.50 Price: $4.99 |
| 28 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 29 |
872110618 |
Bolt, Carriage 3/8-16 x 2 1/4 (AYP part number) Price: $2.99 |
| 30 |
539990316 |
BOLT 5/16C X 3/4" CARRIAGE Price: $1.99 |
| 31 |
532193406 |
BOLT.SHOULDER.3/8-16X3-5/8. Price: $1.99 |
| 32 |
539113621 |
SB 3/8-16 X 3/8 SKT HD ZD Price: $17.99 |
| 33 |
584309301 |
SCREW.SEMS.7/16-20X1.HEX.HEAD Price: $1.99 |
| 34 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 Price: $1.99 |
| 35 |
539991034 |
SCREW #10 X 1/2 SELF TAPPING Price: $1.99 |
| 36 |
532137729 |
Screw Hex Thd Cut 1/4-20x5/8 T (AYP part number) Price: $2.99 |
| 37 |
583615101 |
BOLT T This part replaces 874780740. Price: $2.99 |
| 38 |
874520520 |
BOLT.5/16-18X1-1/4 FULL THD Price: $2.99 |
| 39 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 41 |
873800500 |
Locknut, Hex, with Washer Insert 5/16-18 (AYP part number) Price: $2.99 |
| 42 |
532110452 |
Nut Push Phos & Oil (AYP part number) Price: $1.99 |
| 43 |
539990585 |
NUT 5/16C WHIZ Price: $1.99 |
| 44 |
539200282 |
NUT HEX 3/8-16 NYLON, THIN Price: $1.99 |
| 45 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 46 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 47 |
583609901 |
FLAT WASHER This part replaces 819212113. Price: $1.99 |
| 48 |
539990692 |
WASHER 5/16 FLAT Price: $1.99 |
| 49 |
539109562 |
WASHER 3/8 X 3/4 X .187 TK Price: $1.99 |
