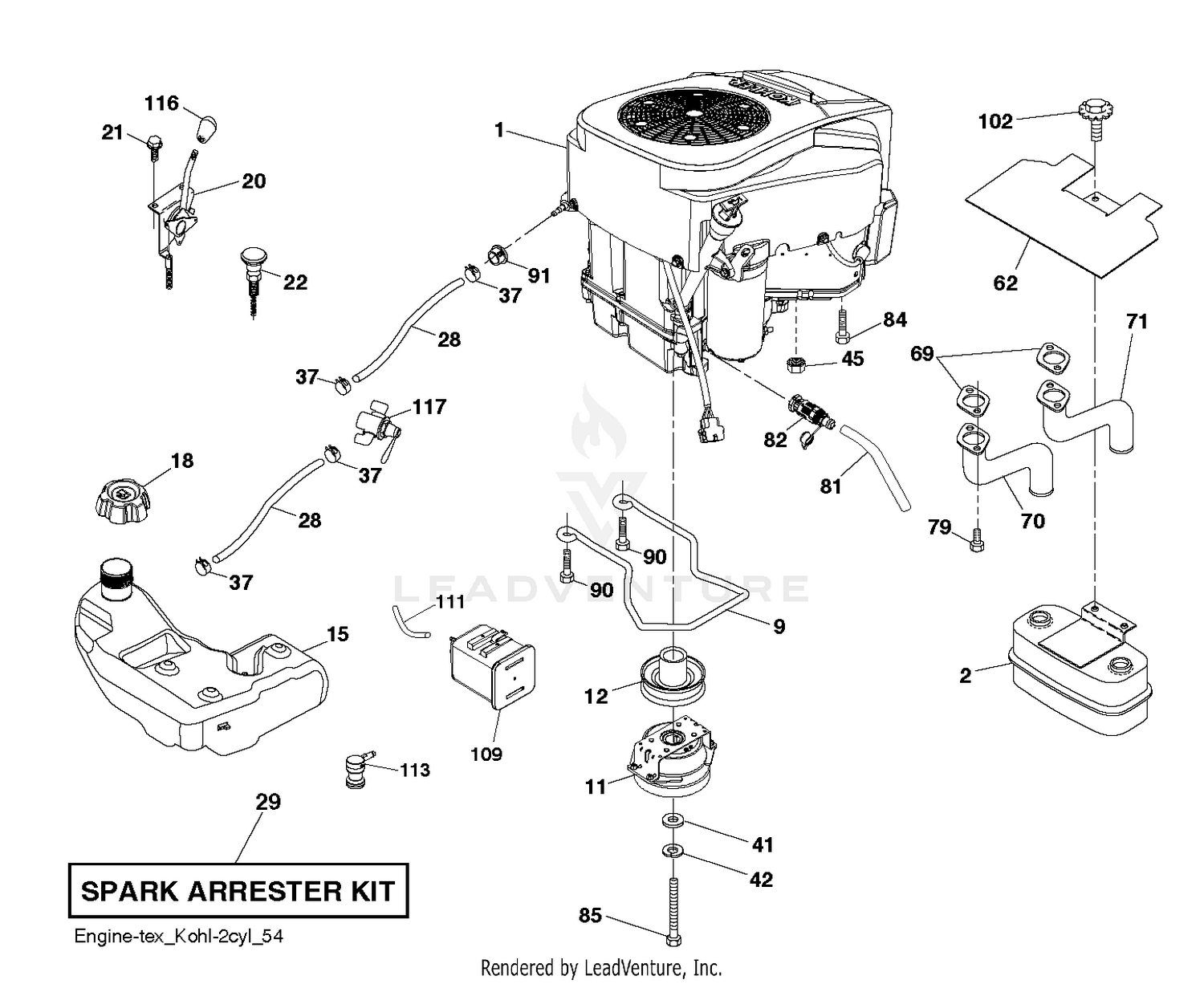

| Ref | Part Number | Description |
|---|
| 1 |
3219-2 |
NUT-HEX Price: $0.37 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 3 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 4 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 5 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 6 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 7 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 9 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 9 |
596501502 |
Keepers This part replaces 501832601. Price: $9.99 |
| 10 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 11 |
587241601 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH07 Price: $229.99 |
| 11 |
92-1773 |
SCREW-HHF Price: $3.05 |
| 12 |
532405097 |
PULLEY.ENGINE.TUFFTORQ Price: $49.99 |
| 13 |
32144-112 |
SCREW-HWH Price: $0.99 |
| 14 |
86-7230 |
GEAR-INPUT, TRANSMISSION Price: $610.12 |
| 15 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 16 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 17 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 18 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 19 |
3210-8 |
SCREW-HH Price: $1.02 |
| 20 |
587631703 |
THROTTLE.KOHL.PRO.#88PAD_46" Price: $27.99 |
| 20 |
71-4350 |
NUT Price: $3.46 |
| 21 |
532435862 |
NEEDS DESCRIPTION Price: Call Us |
| 21 |
83-5130 |
SPACER-PINION Price: $87.56 |
| 22 |
532191596 |
CONTROL.CHOKE.ERGO.PUSH-IN.BLA Price: $32.99 |
| 22 |
72-3572 |
SHIM-BEARING, FRONT (.098) This part replaces 72-3570. Price: $23.68 |
| 22 |
72-3573 |
SHIM-BEARING, FRONT (.100) Price: $24.63 |
| 22 |
72-3598 |
SHIM-BEARING, FRONT (.149) Price: $24.63 |
| 23 |
254-91 |
CONE-BEARING Price: $18.65 |
| 24 |
254-90 |
BEARING-CUP This part replaces 21-8390. Price: $11.29 |
| 25 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 26 |
93-3619 |
UPPER HOUSING ASM Price: $1,825.32 |
| 27 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 28 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
32121-15 |
PIN-ROLL This part replaces 21-7710. Price: $1.60 |
| 31 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 32 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 33 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 34 |
75-0721 |
DISCONTINUED Price: Call Us |
| 35 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 36 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 37 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 38 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 39 |
72-9420 |
VENT Price: $6.85 |
| 40 |
83-4910 |
COUPLER-PINION Price: $223.04 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 41 |
71-4330 |
SEAL Price: $36.26 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532186054 |
GASKET.EXHAUST.KOHL.CV18-CV26 Price: $5.99 |
| 70 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 Price: $19.99 |
| 71 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 Price: $17.99 |
| 79 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 85 |
501606601 |
BOLT.HEX.7/16-20X3.75.GR5.RED This part replaces 532179953. Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 109 |
532414114 |
CANNISTER, CARBON Price: $54.99 |
| 111 |
587044580 |
Hoses This part replaces 532414119. Price: $9.99 |
| 113 |
597791601 |
VALVES This part replaces 532414127. Price: $9.99 |
| 116 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 117 |
532420828 |
VALVE FUEL RESERVE Price: $27.99 |
