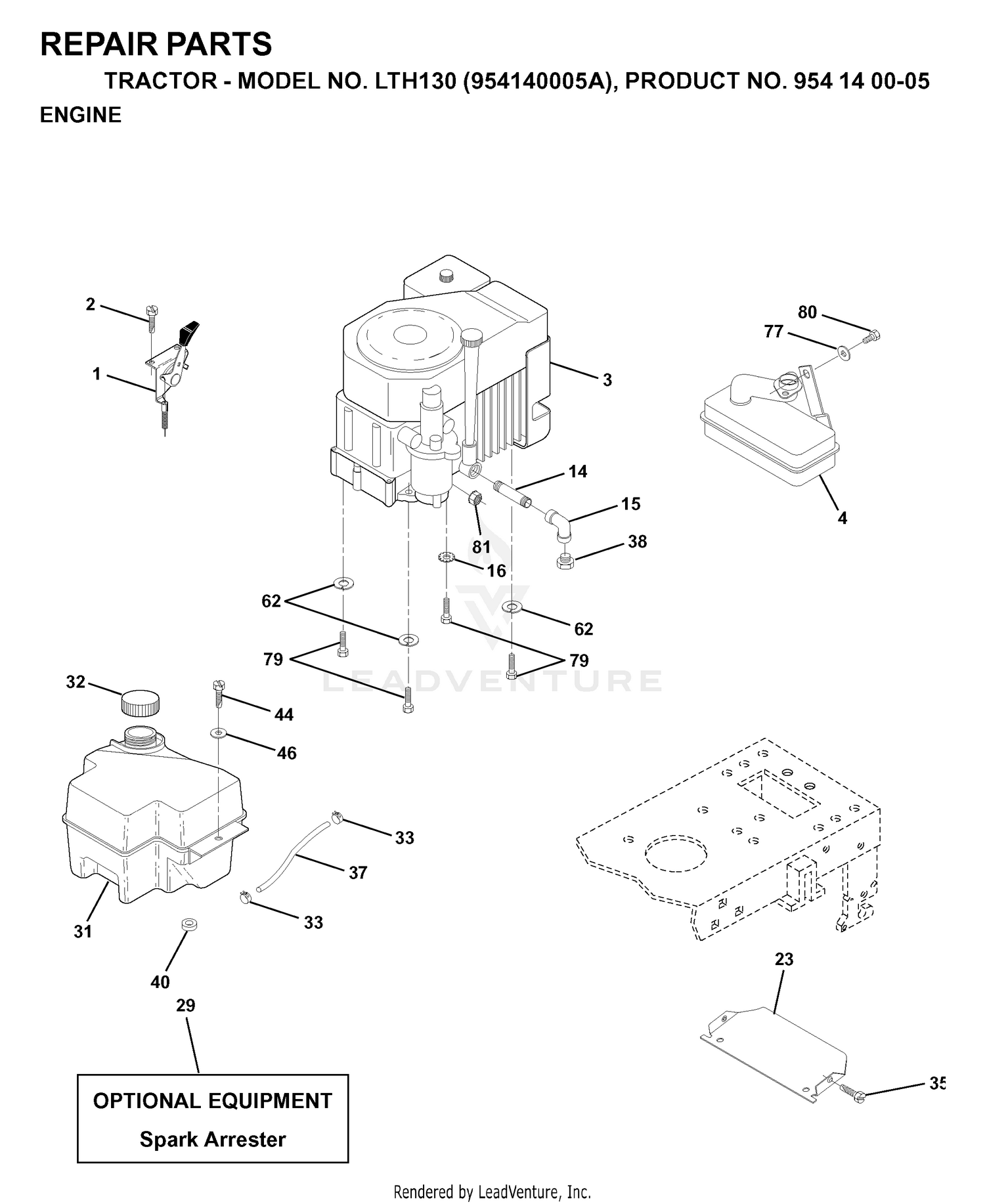

| Ref | Part Number | Description |
|---|
| 1 |
125-7016 |
TAPPET Price: $16.62 |
| 2 |
125-7017 |
ROD-PUSH Price: $10.14 |
| 2 |
596582501 |
Bolts This part replaces 817720410. Price: $2.99 |
| 3 |
127-3113 |
CAMSHAFT ASM Price: Call Us |
| 4 |
125-7008 |
METAL-THRUST Price: $25.42 |
| 4 |
532159420 |
MUFFLER.KOHL.CV.SINGLE.W/PORT This part replaces 532137350. Price: $99.99 |
| 6 |
127-3052 |
GEAR-CAMSHAFT Price: $199.39 |
| 7 |
125-7185 |
KEY Price: $2.16 |
| 8 |
127-3053 |
PULSER-CAMSHAFT Price: $19.46 |
| 9 |
125-7205 |
BOLT Price: $2.67 |
| 10 |
125-7213 |
BOLT Price: $2.67 |
| 11 |
127-3054 |
SENSOR-REV, GEAR Price: $158.02 |
| 12 |
127-3184 |
BOLT Price: $4.58 |
| 13 |
127-3063 |
SHAFT-IDLE, GEAR A Price: Call Us |
| 14 |
127-3066 |
IDLE GEAR A ASM Price: $135.01 |
| 14 |
813280328 |
Std. Pipe Nipple 3/8 - 18 NPT x 3 1/2 Price: $4.99 |
| 15 |
532428287 |
VALUE.OIL.DRAIN This part replaces 813200300. Price: $14.99 |
| 16 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 811050500. Price: $2.99 |
| 17 |
125-7219 |
BOLT Price: $4.58 |
| 18 |
127-3070 |
GEAR-PUMP, SUPPLY Price: $121.19 |
| 19 |
127-3167 |
WASHER-SPRING Price: $1.94 |
| 20 |
127-3185 |
NUT-LOCK Price: $5.51 |
| 21 |
127-3064 |
SHAFT-IDLE, GEAR B Price: Call Us |
| 22 |
127-3067 |
IDLE GEAR B ASM Price: $110.72 |
| 23 |
532156123 |
SHIELD HEAT Price: $6.23 |
| 25 |
127-3068 |
PLATE-IDLE, SHAFT Price: Call Us |
| 26 |
127-3069 |
GASKET-IDLE, SHAFT B Price: $4.14 |
| 27 |
125-7218 |
BOLT Price: $3.48 |
| 28 |
125-6927 |
BUSHING Price: $74.51 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 31 |
532180645 |
GAS TANK 2GAL This part replaces 532140280. Price: $59.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532140527. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 35 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 40 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 44 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE This part replaces 817490412. Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 62 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 77 |
734115441 |
WASHER - 26X6.5X1.6 This part replaces 819101216. Price: $0.99 |
| 79 |
740108025 |
This part replaces 532125398. Price: $2.38 |
| 81 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 532128861. Price: $2.99 |
