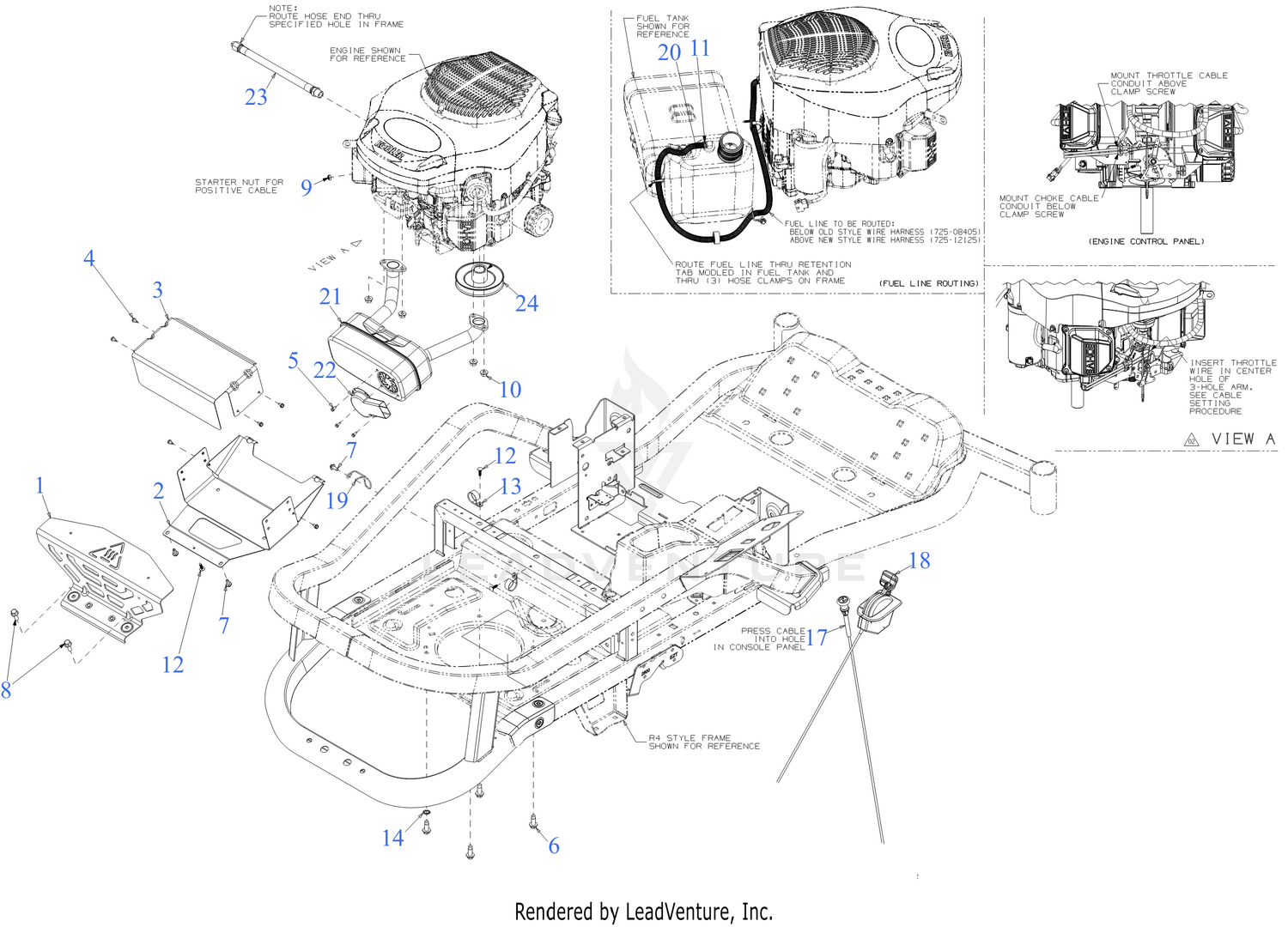

| Ref | Part Number | Description |
|---|
| 1 |
603P06299A |
MUFFLER COVER (REAR) Price: $86.26 |
| 2 |
703-16041A |
MUFFLER SHIELD (LOWER) Price: $74.49 |
| 3 |
703-16042A |
MUFFLER SHIELD (TOP) Price: $42.34 |
| 4 |
910-0224 |
HEX SCREW AB-TAP #10 x .50 Price: $3.19 |
| 5 |
710-0227 |
HEX SCREW WASHER HD #8-18 x 0.500 Price: $3.90 |
| 6 |
710-04683C |
SCREW 3/8-16 x 1 Price: $5.67 |
| 7 |
710-06133 |
SCREW M6-1 x .625 Price: $3.08 |
| 8 |
710-1238A |
SCREW 5/16-18 x .875 GR5 HXFLG HD Price: $3.74 |
| 9 |
712-05106 |
HEX NUT 1/4-20 Price: $2.72 |
| 10 |
712-3086 |
HEX FLANGE NUT M8X Price: $3.86 |
| 11 |
726-0205 |
HOSE CLAMP 1/20 Price: $3.71 |
| 12 |
726-04099A |
RATCHET CLIP (.188 x .85) Price: $3.16 |
| 13 |
726-04119 |
DRAIN HOSE CLAMP Price: $2.83 |
| 14 |
736-0148 |
LOCK WASHER 3/8 Price: $3.19 |
| 17 |
746P06931 |
CHOKE CABLE 51.5LG Price: $25.16 |
| 18 |
746P06996 |
THROTTLE CABLE 51.0 LG Price: $34.17 |
| 19 |
747-10050 |
HOSE GUIDE Price: $4.08 |
| 20 |
751-22813-57 |
FUEL HOSE 1/4-57" This part replaces 751-10349-45. Price: $65.25 |
| 21 |
751P10528E |
EXHAUST MUFFLER (KH TWIN) Price: $140.68 |
| 22 |
751-11053B |
EXHAUST DELECTOR (LONG) Price: $4.64 |
| 23 |
751-15324B |
OIL DRAIN HOSE (11.37" 3/8x1/4 NPT) Price: $38.80 |
| 24 |
756-04494C |
TRANSMISSION DRIVE PULLEY Price: $30.97 |
