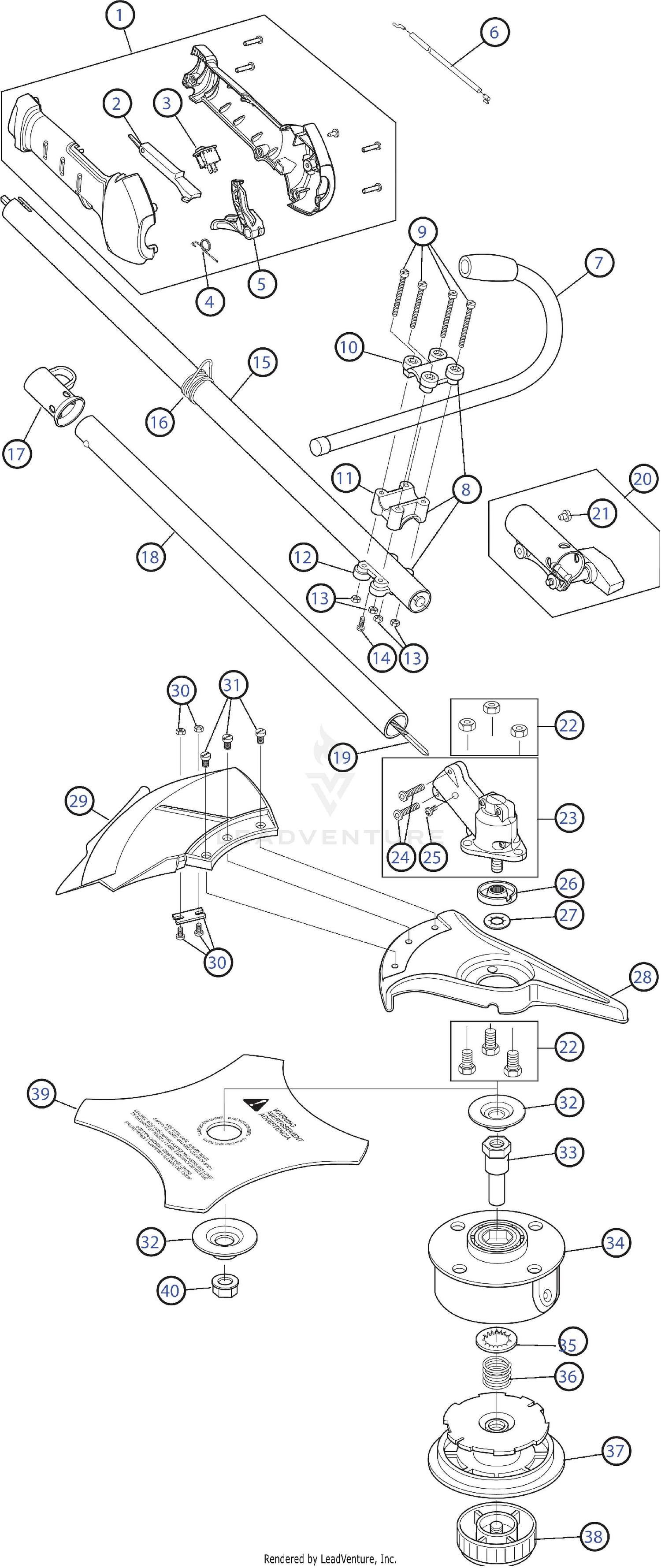

General Assembly
Parts (34)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 731-08433C-10 | Throttle Trigger Lock-Out Price: $2.72 |
| 3 | 791-182405 | Switch Assembly Price: $9.29 |
| 4 | 753-05007 | TRIGGER SPRING Price: $4.42 |
| 5 | 731-04970B-10 | Throttle Trigger Price: $8.16 |
| 6 | 753-05270 | THROTTLE CABLE Not Available Price: |
| 7 | 791-181099 | J-Handle Assembly Price: $10.64 |
| 9 | 791-181811 | Screw Price: $4.05 |
| 10 | 791-181812 | Upper Handle Clamp Price: $7.65 |
| 11 | 791-181813 | Middle Handle Clamp Price: $10.65 |
| 12 | 791-181814 | Lower Handle Clamp Price: $7.77 |
| 13 | 791-181815 | Nut Price: $3.76 |
| 14 | 791-182519 | Anti-Rotation Screw Price: $4.37 |
| 15 | 753-04236 | Upper Drive Shaft Housing Assembly Price: $87.52 |
| 16 | 4301A | SHOULDER STRAP CLAMP Price: $3.06 |
| 16 | 791-610327 | Harness Clip Price: $28.62 |
| 17 | 731-08926 | Hanger Price: $2.32 |
| 18 | 753-04504 | Lower Drive Shaft Housing Assembly Price: $64.45 |
| 19 | 753-05267 | LOWER DRIVE SHAFT Price: $37.46 |
| 21 | 791-182057 | Screw Price: $3.93 |
| 22 | 791-182200 | Shield Mount Screw Assembly Price: $6.07 |
| 24 | 791-182195 | SCREW #10-24X11/16 T-25 Price: $6.20 |
| 25 | 791-182519 | Anti-Rotation Screw Price: $4.37 |
| 26 | 791-182196 | Blade Driver Price: $19.73 |
| 27 | 753-04348 | Palnut Price: $5.94 |
| 28 | 791-147492 | Blade Shield / Shield Mount Price: $111.50 |
| 30 | 791-682061 | Blade Assembly Price: $12.51 |
| 31 | 791-683304 | Shield Mounting Screw Price: $10.12 |
| 32 | 791-147490 | Retaining Washer Price: $10.07 |
| 33 | 791-612483 | Spool Shaft Price: $49.05 |
| 35 | 1772 | RETAINER This part replaces 791-612026. Price: $5.94 |
| 36 | 791-610636B | Spring Price: $9.35 |
| 37 | 791-147495 | Inner Reel Price: $24.36 |
| 38 | 791-180814B | KNOB ASSEMBLY-BUMP 3000 STRG TRM Not Available Price: |
| 40 | 712-04105 | Nut Price: $9.97 |
