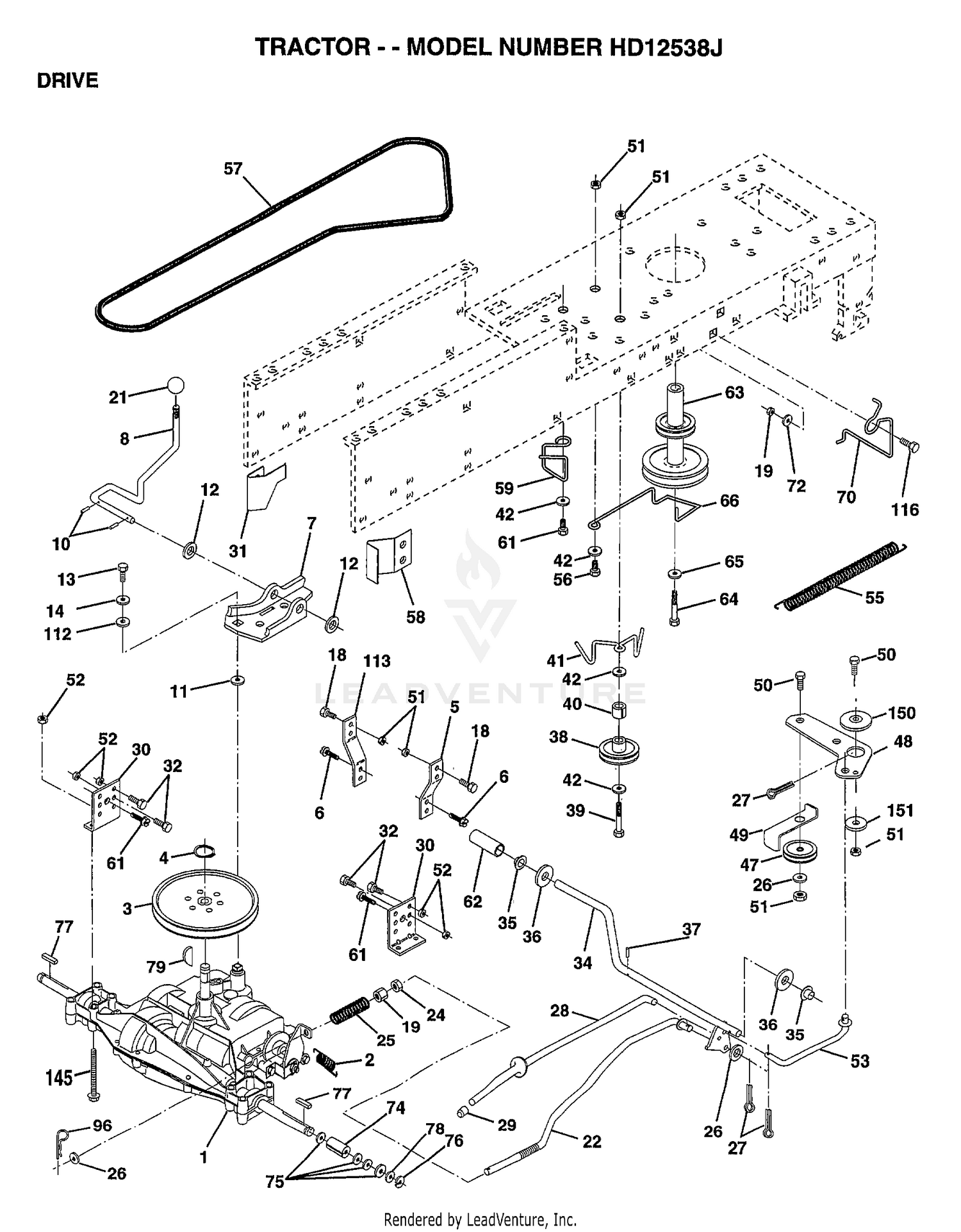

| Ref | Part Number | Description |
|---|
| 2 |
146682 |
Spring Return Brake -T/a Zinc Price: Call Us |
| 3 |
123666X |
Pulley Transaxle Alum Price: Call Us |
| 4 |
12000028 |
Ring Retainer # 5100-62 Price: Call Us |
| 5 |
121520X |
Strap Pnt Torque 30 Deg Blk Price: Call Us |
| 6 |
131679 |
Rod Shifter Blk Price: Call Us |
| 6 |
17490512 |
Screw Thdrol 5/16-18 X 3/4 Tyt Price: Call Us |
| 7 |
162240 |
Bracket T/A Saddle Shift Price: Call Us |
| 10 |
76020416 |
Pin Cotter 1/8 1 Cad Price: Call Us |
| 10 |
98-9705 |
STARTER ASM Price: $663.57 |
| 11 |
105701X |
Washer Plate Shf 388 Sq Hole Price: Call Us |
| 12 |
19151216 |
Washer 15/32 X 3/4 X 16ga Price: Call Us |
| 13 |
74550412 |
Bolt 1/4-28unf Gr8 w/Patch Price: Call Us |
| 14 |
10040400 |
Washer Lock Hvy Helical 1/4 Price: Call Us |
| 16 |
74760616 |
Bolt Fin Flex 3/8-16 Unc x 1 Gr. 5 Price: Call Us |
| 19 |
73800600 |
Nut Lock 3/8-16 Unc Price: Call Us |
| 20 |
104-8608 |
YOKE ASM Price: $437.88 |
| 21 |
106933X |
Knob Rd 1/2-13 Plstc Thds Blk Price: Call Us |
| 22 |
130804 |
Rod Brake Lt Price: Call Us |
| 24 |
73350600 |
Nut Hex Jam 3/8-16 Unc Price: Call Us |
| 25 |
106888X |
Spring Rod Brake 2 00 Zinc Price: Call Us |
| 26 |
19131316 |
Washer 13/32 X 13/16 X 16 Ga Price: Call Us |
| 27 |
76020412 |
Pin Cotter 1/8 X 3/4 Cad Price: Call Us |
| 28 |
145204 |
Rod Brake Parking Lt/Yt Price: Call Us |
| 29 |
71673 |
Cap Parking Brake Red Price: Call Us |
| 30 |
130807 |
Bracket Transmission Price: Call Us |
| 30 |
98-7742 |
ARMATURE ASM Price: $819.15 |
| 32 |
74760512 |
Bolt Fin Flex 5/16-18 x 3/4 Price: Call Us |
| 33 |
131494 |
Pulley Idler Flat Price: Call Us |
| 34 |
155071 |
Shaft Asm Pedal Foot Price: Call Us |
| 35 |
120183X |
Bearing Nylon Blk 629 Id Price: Call Us |
| 36 |
19211616 |
Washer 21/32 1 X 16 Ga Price: Call Us |
| 37 |
1572H |
Pin Roll 3/16 X 1" Price: Call Us |
| 39 |
74760644 |
Bolt Fin Flex 3/8-16unc X 2-3/4 Price: Call Us |
| 40 |
4470J |
Spacer Split 395 X 59 Bzp Price: Call Us |
| 40 |
98-7744 |
BEARING Price: $35.64 |
| 41 |
165838 |
Keeper Belt Idler Price: Call Us |
| 42 |
19131312 |
Washer 13/32 X 13/16 12 Ga Price: Call Us |
| 43 |
154407 |
Bellcrank Clutch Grnd Drv STL Price: Call Us |
| 47 |
127783 |
Pulley Idler V Groove Plastic Price: Call Us |
| 49 |
123205X |
Retainer Belt Style Spring Price: Call Us |
| 50 |
74760624 |
Bolt Flex 3/8-16unc 1-1/2 Price: Call Us |
| 50 |
98-7743 |
BEARING Price: $37.48 |
| 51 |
73680600 |
Nut Crownlock 3/8-16 Unc Price: Call Us |
| 52 |
73680500 |
Nut Lock 5/16-18 Unc Price: Call Us |
| 53 |
105710X |
Link Clutch 7 66 Price: Call Us |
| 55 |
105709X |
Sring Return Clutch 6 75 Price: Call Us |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 57 |
130801 |
V-belt Ground Drive Price: Call Us |
| 59 |
140312 |
Retainer Belt Chassis Lh Zinc Price: Call Us |
| 60 |
99-8373 |
CLUTCH-RUNNING, OVER Price: $691.80 |
| 61 |
17490612 |
Screw Thdrol 3/8-16x3/4 Ty-tt Price: Call Us |
| 62 |
8883R |
Cover Pedal Blk Std Price: Call Us |
| 63 |
140186 |
Pulley Engine Price: Call Us |
| 64 |
71170764 |
Bolt Finhex 7/16-20 x 4 g5 Price: Call Us |
| 65 |
10040700 |
Washer Lock Hvy Hlcl Spr 7/16 Price: Call Us |
| 66 |
154778 |
Keeper Belt Engine Fool Proof Price: Call Us |
| 70 |
134683 |
Guide Belt Dr Mower Rh Price: Call Us |
| 70 |
99-8374 |
FRAME-END, DRIVE Price: $73.04 |
| 72 |
19132012 |
Washer 13/32 1-1/4 X 12 Ga Price: Call Us |
| 74 |
137057 |
Spacer Axle Price: Call Us |
| 75 |
121749X |
Washer 25/32 X 1 1/4 X 16 Ga Price: Call Us |
| 76 |
12000001 |
Ring E #5133-75 Price: Call Us |
| 77 |
123533X |
Key Square 2 0 X 1845/ 1865 Price: Call Us |
| 78 |
121748X |
Washer 25/32 X 1 5/8 X 16ga Price: Call Us |
| 79 |
2228M |
Key Woodruff #9 3/16 X 3/4 Price: Call Us |
| 80 |
105-3746 |
MAGNETIC SWITCH ASM Price: $689.29 |
| 90 |
98-7748 |
FRAME-END Price: $82.65 |
| 96 |
4497H |
Retainer Spring 1" Price: Call Us |
| 100 |
98-7749 |
BRUSH HOLDER ASM Price: $91.05 |
| 110 |
98-7750 |
SPRING-BRUSH Price: $2.38 |
| 112 |
19091210 |
Washer 9/32 X 3/4 X 10 Ga Price: Call Us |
| 113 |
127285X |
Strap Torque Lh Lt Price: Call Us |
| 116 |
72110610 |
Bolt Rdhd Sqnk 3/8-16 x 1.25 Price: Call Us |
| 120 |
98-7751 |
GEAR Price: $43.51 |
| 130 |
98-7752 |
RETAINER Price: $4.35 |
| 140 |
98-7753 |
ROLLER Price: $1.00 |
| 145 |
74490540 |
Bolt Hex FLGHD 5/16-18 Gr.5 Price: Call Us |
| 150 |
165850 |
Bushing Bellcrank Price: Call Us |
| 150 |
98-7754 |
SPRING Price: $4.70 |
| 160 |
98-7755 |
BALL Price: $0.42 |
| 170 |
98-7756 |
BOLT Price: $2.64 |
| 180 |
98-7757 |
O-RING Price: $24.98 |
| 190 |
100-9240 |
BOLT Price: $7.23 |
| 200 |
98-7758 |
BOLT ASM Price: $4.90 |
| 210 |
99-8375 |
COVER Price: $24.86 |
| 220 |
99-8371 |
NUT-HEX Price: $3.75 |
| 230 |
98-9711 |
CORD-SOLENOID, STOP Price: $12.05 |
| 240 |
99-8376 |
NUT-HEX Price: $7.28 |
| 250 |
98-7759 |
PIPE-DRAIN Price: $28.84 |
| 260 |
250-4 |
TIE-CABLE This part replaces 98-9712. Price: $0.61 |
| 270 |
105-2886 |
COVER ASM Price: $58.11 |
