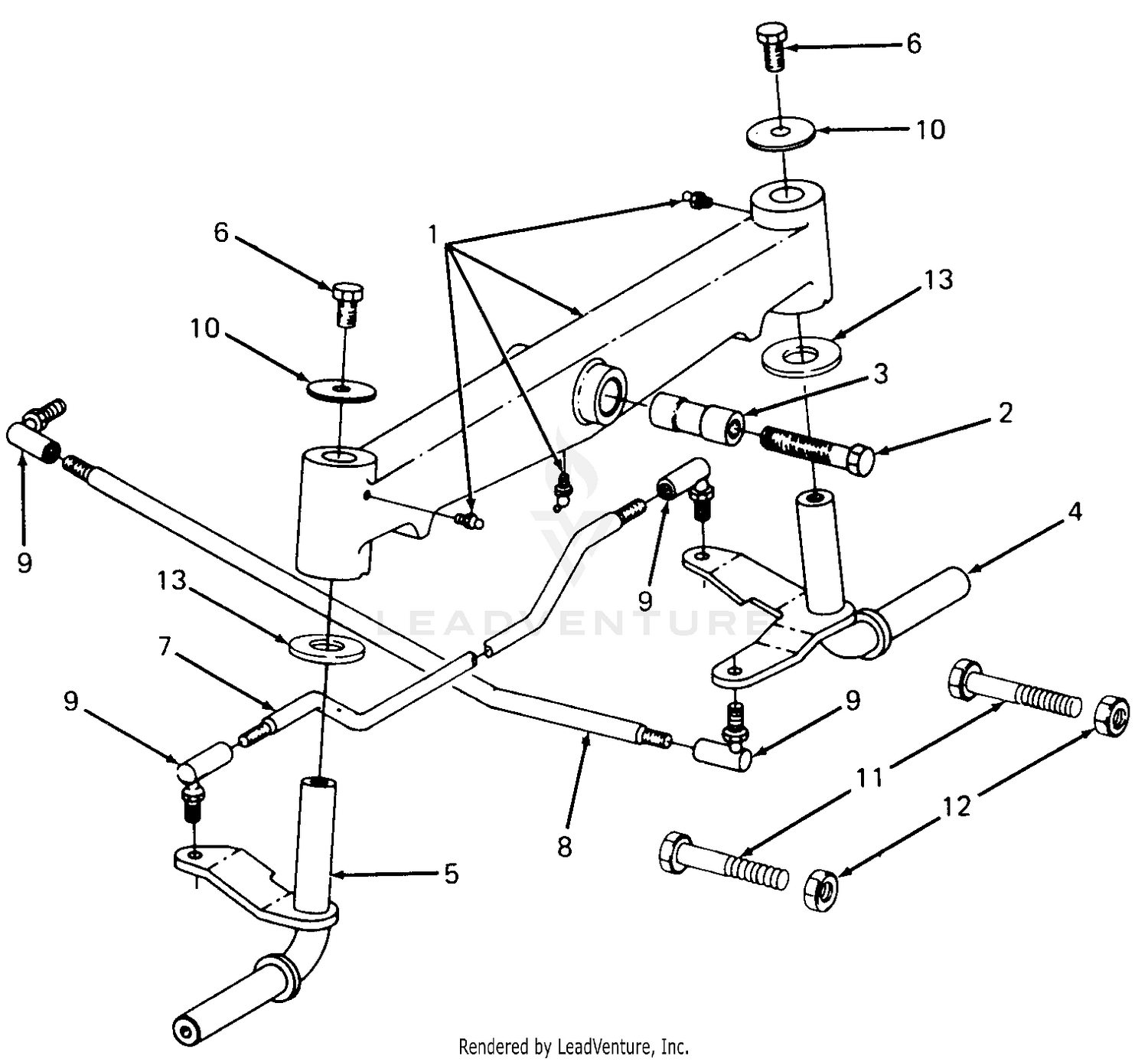

| Ref | Part Number | Description |
|---|
| 1 |
127427 |
SUB= 140119 Price: Call Us |
| 1 |
759-3269 |
AXLE, FRONT Not Available Price: |
| 2 |
140551 |
BRACKET PVT SEAT Price: Call Us |
| 2 |
710-3161 |
BOLT-HEX W/HOLE 1/2-20 x 4.0 Not Available Price: |
| 3 |
711-3220 |
BUSHING Not Available Price: |
| 3 |
74760616 |
BOLT Price: Call Us |
| 4 |
19131610 |
WASHER PM Price: Call Us |
| 4 |
703-1252-0637 |
KNUCKLE ASSEMBLY (LH) (POWDER BLACK) Not Available This part replaces 703-1252. Price: |
| 5 |
145006 |
CLIP.PUSH-IN.HING Price: Call Us |
| 5 |
703-1253-0637 |
KNUCKLE ASSEMBLY (RH) (POWDER BLACK) Not Available This part replaces 703-1253. Price: |
| 6 |
710-0216 |
Bolt, 3/8 X 3/4 Type 5 This part replaces 710-3000. Price: $3.93 |
| 6 |
73800600 |
NUT Price: Call Us |
| 7 |
124181X |
SPRING COMPRESSIO Price: Call Us |
| 7 |
711-3205 |
DRAG LINK Not Available Price: |
| 8 |
17490616 |
SCREW GTV Price: Call Us |
| 8 |
711-3153 |
DRAG LINK Not Available Price: |
| 9 |
19131614 |
WASHER Price: Call Us |
| 9 |
923-3018 |
Ball Joint This part replaces 723-3018. Price: $15.50 |
| 10 |
140552 |
SUB= 155925 Price: Call Us |
| 10 |
736-3039 |
Washer, .406 X 1.50 X 11 ga. Price: $4.42 |
| 11 |
710-3179 |
SCREW 3/8-16 x 1.25 GR5 Not Available Price: |
| 11 |
76-0860 |
SHAFT-COUPLING Price: $688.74 |
| 12 |
121246X |
BRKT SWITCH Price: Call Us |
| 12 |
712-3017 |
HEX NUT 3/8-16 GR5 Price: $3.90 |
| 12 |
76-0850 |
BEARING-THRUST Price: $30.56 |
| 13 |
121248X |
BUSHING Price: Call Us |
| 13 |
92-9761 |
LINK-DRIVE Price: $313.30 |
| 14 |
72050411 |
SUB= 872050411 Price: Call Us |
| 14 |
92-9762 |
SCREW-HH Price: $8.11 |
| 15 |
134300 |
SPLIT SPACER Price: Call Us |
| 16 |
121250X |
SPRING Price: Call Us |
| 17 |
123976X |
SUB= 73900400 Price: Call Us |
| 17 |
3257-42 |
KEY-WOODRUFF Price: $5.99 |
| 18 |
92-9754 |
PLATE-WEAR This part replaces 76-0870. Price: $359.13 |
| 21 |
139888 |
BOLT.SHLD.5/16-18 Price: Call Us |
| 22 |
73800500 |
NUT Price: Call Us |
| 22 |
76-0840 |
MANIFOLD Price: $790.28 |
| 23 |
74780814 |
BOLT Price: Call Us |
| 24 |
19171912 |
WASHER Price: Call Us |
| 24 |
76-0940 |
END COVER ASM Price: $431.83 |
| 25 |
92-9763 |
ROTOR SET Price: $877.55 |
| 26 |
76-0880 |
COMMUTATOR ASM Price: $492.51 |
| 27 |
100-6131 |
SEAL KIT This part replaces 94-8178. Price: $102.14 |
