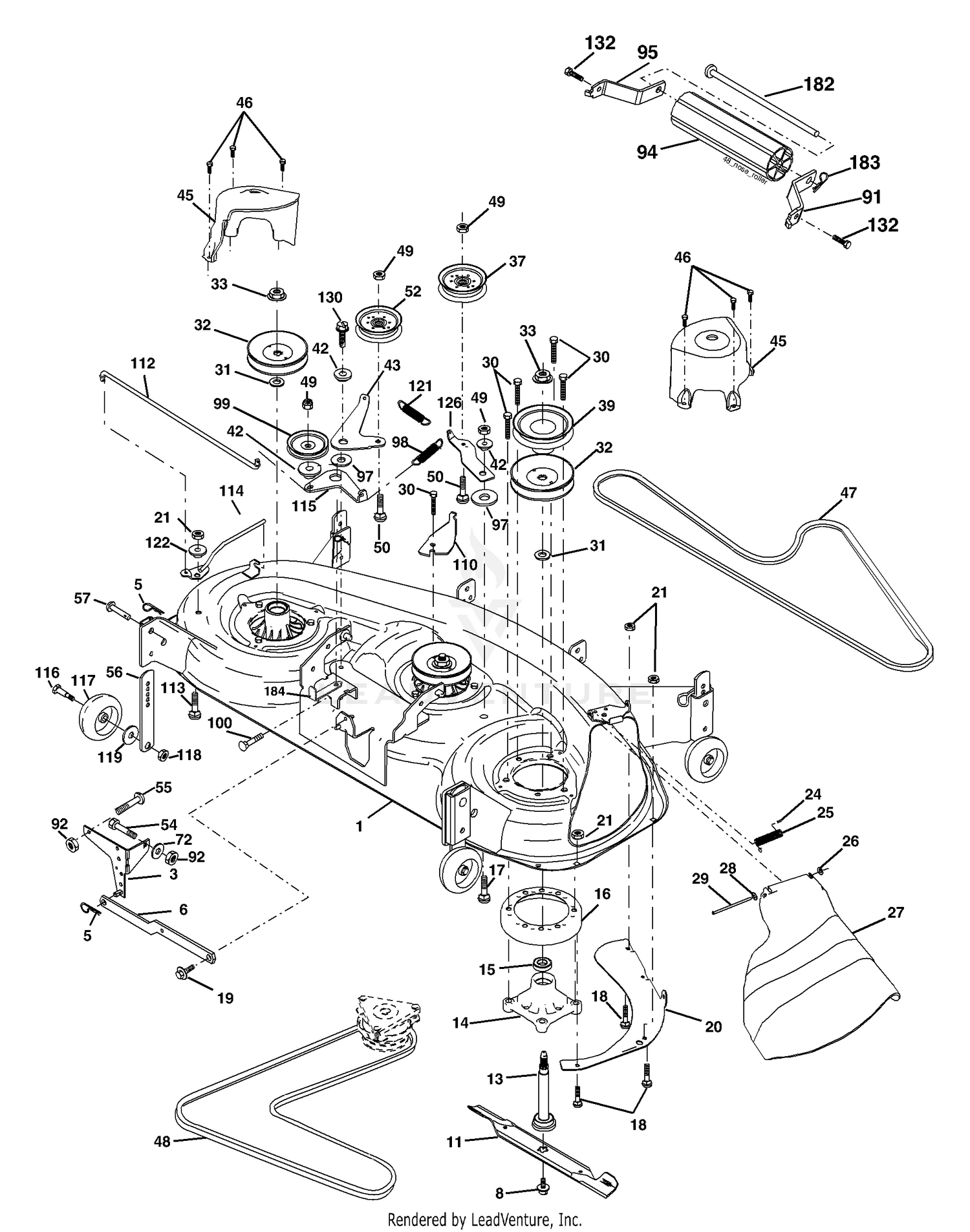

| Ref | Part Number | Description |
|---|
| 1 |
180358 |
Deck Weldment Mower 48 Price: Call Us |
| 1 |
233-42 |
KNOB Price: $12.88 |
| 2 |
94-7060-03 |
THROTTLE ASM ASM This part replaces 94-7060. Price: $101.95 |
| 3 |
138017 |
Bracket Asm., Sway Bar Price: Call Us |
| 3 |
3296-3 |
NUT-LOCK Price: $0.54 |
| 4 |
93-0021 |
SWIVEL-CABLE, THROTTLE Price: $33.15 |
| 5 |
3250-31 |
SCREW-PPH This part replaces 21-96-BMD. Price: $0.25 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
178024 |
Arm, Suspension, Rear Sway Bar Deck Price: Call Us |
| 6 |
94-7064 |
PLATE-THROTTLE Price: $12.88 |
| 7 |
94-7063-03 |
SPACER-BEARING MOUNT This part replaces 94-7063. Price: $35.14 |
| 8 |
3290-450 |
WASHER-BELLEVILLE Price: $2.51 |
| 9 |
3256-6 |
WASHER-FLAT This part replaces 24-14-AD. Price: $0.34 |
| 10 |
3296-45 |
NUT-HEX Price: $3.79 |
| 11 |
3253-17 |
WASHER-LOCK This part replaces 23-7-GD. Price: $0.25 |
| 12 |
93-0073 |
CABLE - THROTTLE Price: $23.39 |
| 13 |
174360 |
Shaft Asm. w/Lower Bearing Price: Call Us |
| 13 |
92-0477 |
CLAMP-CABLE Price: $8.69 |
| 14 |
174358 |
Mandrel Asm. Housing Price: Call Us |
| 14 |
21-103-AMD |
Hex Hd. Mach. Screw, No.10 x 1-1/4" Price: Call Us |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 16 |
174493 |
Stripper Mandrel Deck Price: Call Us |
| 16 |
94-8535 |
PANEL ASM Price: $149.31 |
| 17 |
72110610 |
Bolt RDHD Sq Neck 3/8-16 x 1.25 Price: Call Us |
| 17 |
92-8531 |
BOOT-SWITCH Price: $24.27 |
| 18 |
30953 |
SWITCH - VALVE Price: $33.16 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Hex Hd, Shoulder 5/16-18 Price: Call Us |
| 19 |
92-0250 |
TOGGLE SWITCH Price: $51.53 |
| 20 |
174378 |
Baffle, Vortex Mower Price: Call Us |
| 20 |
3290-134 |
SCREW Price: $0.27 |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 21 |
94-7087 |
PAD Price: $75.02 |
| 22 |
94-7178 |
SEAL-FOAM, CONSOLE Price: $15.58 |
| 23 |
94-7081 |
DISCONTINUED Price: Call Us |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 24 |
94-7141 |
GROMMET Price: $2.63 |
| 25 |
178102 |
Spring, Torsion Price: Call Us |
| 25 |
87-0450 |
DECAL-CAUTION, BRAKING Price: $33.40 |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 26 |
3217-5 |
NUT-HEX This part replaces 22-11-AJD. Price: $0.25 |
| 27 |
180655X428 |
Deflector Shield Price: Call Us |
| 27 |
321-8 |
SCREW-HH This part replaces 20-6-AGD. Price: $0.34 |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 28 |
3256-3 |
WASHER-FLAT This part replaces 24-10-AD. Price: $0.49 |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 29 |
3253-4 |
WASHER-LOCK This part replaces 23-10-GD. Price: $0.25 |
| 30 |
173984 |
Screw, Thdroll Washer Head Price: Call Us |
| 30 |
94-7142 |
PANEL-FOAM Price: $39.15 |
| 31 |
187690 |
Washer, Spacer Price: Call Us |
| 31 |
325-6 |
SCREW-HH This part replaces 20-87-AGD. Price: $1.42 |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 32 |
3217-6 |
NUT-HEX This part replaces 22-12-AJD. Price: $1.19 |
| 33 |
178342 |
Nut, Flg. Top Lock Cntr. 9/16 Price: Call Us |
| 33 |
3217-44 |
NUT-HEX This part replaces 22-9-AJD. Price: $1.29 |
| 34 |
HY3225 |
DISCONTINUED This part replaces 20-26-AGD. Price: Call Us |
| 35 |
94-7242 |
SWITCH Price: $71.33 |
| 36 |
19131316 |
Washer 13/32 x 13/16 x 16 Ga. Price: Call Us |
| 37 |
177968 |
Pulley, Idler, Flat Price: Call Us |
| 39 |
174375 |
Pulley, Idler, Driven Price: Call Us |
| 42 |
165723 |
Spacer, Retainer Price: Call Us |
| 43 |
174373 |
Arm, Idler Secondary Price: Call Us |
| 45 |
180806 |
Cover, Mandrel Deck Price: Call Us |
| 46 |
137729 |
Screw, Thdroll. 1/4-20 x 5/8 Price: Call Us |
| 47 |
180808 |
V-Belt, Mower, Secondary Price: Call Us |
| 48 |
174368 |
V-Belt, Mower, Primary Price: Call Us |
| 49 |
73900600 |
Nut, Lock 3/8-16 unc Price: Call Us |
| 50 |
72110612 |
Bolt, Carr. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 52 |
175820 |
Pulley Idler Flat Price: Call Us |
| 54 |
74780616 |
Bolt Fin Hex 3/8-16 x 1 Price: Call Us |
| 55 |
72140608 |
Bolt Carriage Sqnk. 3/8-16 x 1 Price: Call Us |
| 56 |
155986 |
Bar Pnt Adj. Price: Call Us |
| 57 |
156941 |
Pin Head Rivet Price: Call Us |
| 72 |
19131312 |
Washer 13/32 x 13/16 x 12 Ga. Price: Call Us |
| 91 |
180535 |
Bracket, Asm Noseroller, RH Price: Call Us |
| 92 |
73800600 |
Nut Lock Hex 3/8-16 Price: Call Us |
| 94 |
176066 |
Noseroller Price: Call Us |
| 95 |
180534 |
Bracket, Asm Noseroller LH Price: Call Us |
| 97 |
178515 |
Washer Hardened Price: Call Us |
| 98 |
179479 |
Spring Primary Drive Price: Call Us |
| 99 |
184058 |
Pulley Idler "V" Price: Call Us |
| 100 |
72110616 |
Bolt RDHD Sqnk 3/8-16 unc x 2 Price: Call Us |
| 110 |
175016 |
Arm Spring Secondary Price: Call Us |
| 112 |
174387 |
Link Tension Relief Lever Price: Call Us |
| 113 |
72110506 |
Bolt 5/16-18 x 3/4 Price: Call Us |
| 114 |
174384 |
Tension Asm. Relief Lever Price: Call Us |
| 115 |
174609 |
Arm Spring Tension Relief Price: Call Us |
| 116 |
184219 |
Bolt, Shoulder Price: Call Us |
| 117 |
133957 |
Gauge Wheel Price: Call Us |
| 118 |
73930600 |
Nut, Centerlock 3/8-16 unc Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 121 |
174371 |
Spring Secondary Drive Price: Call Us |
| 122 |
174606 |
Bushing Pivot Tension Relief Price: Call Us |
| 126 |
174372 |
Arm, Idler, Primary Deck Price: Call Us |
| 130 |
17000616 |
Screw 3/8-16 x 1.0 Price: Call Us |
| 132 |
17000612 |
Screw 3/8-16 x .75 Price: Call Us |
| 182 |
179127 |
Rod Roller Nose Price: Call Us |
| 183 |
163552 |
Retainer Spring Price: Call Us |
| 184 |
173979 |
Keeper Belt Idler Price: Call Us |
