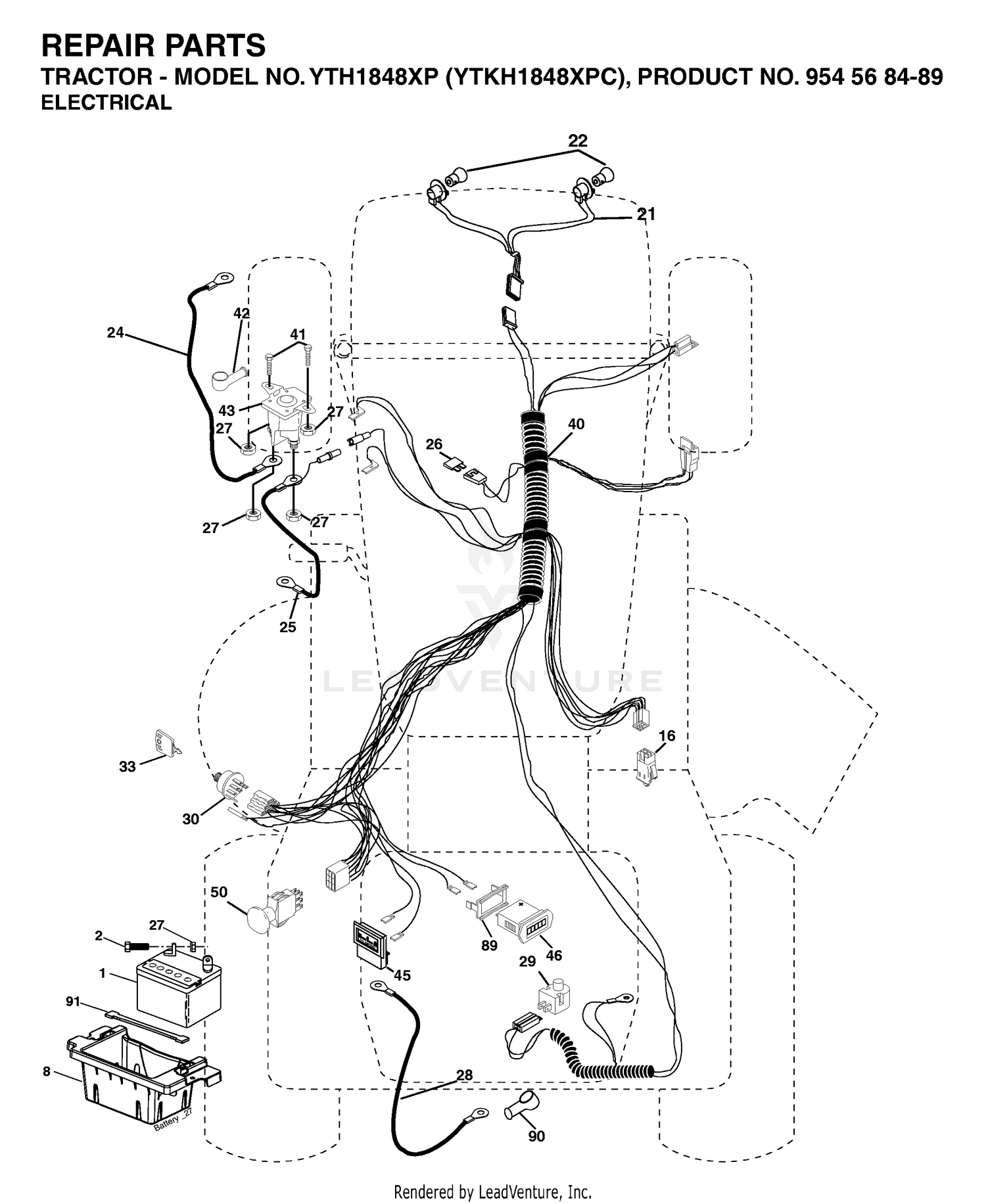

| Ref | Part Number | Description |
|---|
| 1 |
32128-39 |
NUT-HHF Price: $0.70 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 3 |
104-1051-03 |
PLATE-SPINDLE Price: $59.54 |
| 4 |
127-6389 |
DECK CHAMBER SERVICE ASM Price: $1,496.66 |
| 5 |
237-161 |
O-RING Price: $6.06 |
| 6 |
121-3666 |
SPINDLE ASM This part replaces 138-6932. Price: $391.32 |
| 8 |
107-0235-03 |
BLADE-ATOMIC Price: $40.07 |
| 8 |
108-9026 |
BLADE-27", COMBO This part replaces 108-9026-03. Price: $33.66 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 9 |
72-9361 |
CUP-SCALP, ANTI Price: $39.78 |
| 10 |
92-5816 |
BOLT-BLADE Price: $4.93 |
| 11 |
108-9025-0P |
BAFFLE-MULCHING This part replaces 108-9025-01. Price: $80.48 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
532146148 |
CABLE BATTERY 6 GA 22" W/16W Price: $11.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 30 |
532175566 |
IGNITION SWITCH Price: $22.99 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 40 |
532188024 |
HARNESS.IGNITION Price: $119.99 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532178861. Price: $19.99 |
| 45 |
532122822 |
AMMETER Price: $17.99 |
| 46 |
532169642 |
KIT.HOURMETER.SNAP-IN This part replaces 532169635. Price: $109.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 89 |
532169639 |
BRACKET SNAP-IN HOURMETER Price: $4.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532180449. Price: $4.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
