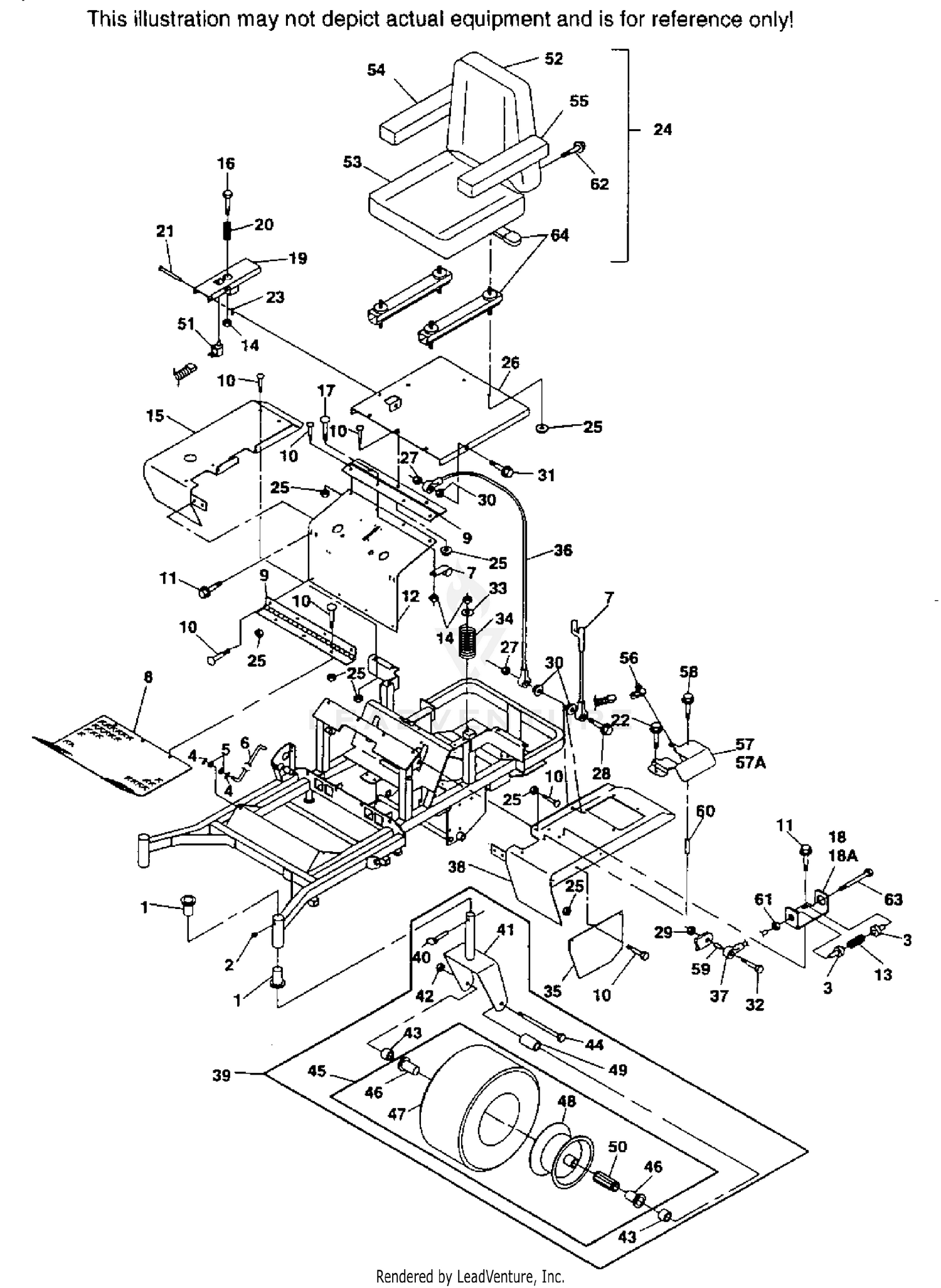

| Ref | Part Number | Description |
|---|
| 1 |
48100-08 |
BUSHING Price: Call Us |
| 2 |
48114-04 |
GREASE FITTING Price: Call Us |
| 3 |
43257 |
BUSHING, SPRING KEEPER Price: Call Us |
| 4 |
04062-02 |
HAIR PIN, .08 DIAMETER Price: Call Us |
| 5 |
04041-07 |
FLATWASHER, 3/8" SPECIAL Price: Call Us |
| 6 |
44062 |
ROD, FOOT PLATE LATCH Price: Call Us |
| 7 |
48994 |
CABLE, SEAT STOP Price: Call Us |
| 8 |
42764 |
FOOT PLATE Price: Call Us |
| 9 |
481049 |
Hinge This part replaces 48547. Price: Call Us |
| 11 |
04017-16 |
CAP SCREW, 5/16-18 X 3/4" SERRATED FLANGE HEX Price: Call Us |
| 12 |
421251 |
KICK PLATE Price: Call Us |
| 13 |
48746 |
NEUTRAL RETURN SPRING Price: Call Us |
| 14 |
04021-10 |
ELASTIC STOP NUT, 5/16-18 Price: Call Us |
| 15 |
46505 |
FENDER ASSEMBLY, RH(WITH DECAL) Price: Call Us |
| 18 |
421411 |
RETAINER, NEUTRAL SPRING, LH Price: Call Us |
| 18A |
421412 |
RETAINER, NEUTRAL SPRING, RH Price: Call Us |
| 19 |
45405 |
SEAT SWITCH BRACKET Price: Call Us |
| 20 |
48463 |
SPRING Price: Call Us |
| 21 |
04064-04 |
CLEVIS PIN Price: Call Us |
| 22 |
04017-15 |
CAP SCREW, 5/16-18 X 1/2" SERRATED FLANGE HEX Price: Call Us |
| 23 |
04062-02 |
HAIR PIN COTTER Price: Call Us |
| 24 |
482119 |
Seat Assy. This part replaces 48930. Price: Call Us |
| 25 |
04019-03 |
NUT, 5/16-18 SERRATED FLANGE HEX HEAD Price: Call Us |
| 26 |
45404 |
SEAT BASE Price: Call Us |
| 28 |
04017-08 |
CAPSCREW 1/4-20 X 1-1/2" SERRATED FLANGE HEX Price: Call Us |
| 30 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 31 |
04017-06 |
CAP SCREW, 1/4-20 X 1" SERRATED FLANGE HEX Price: Call Us |
| 34 |
48686 |
SEAT SPRING Price: Call Us |
| 35 |
421198 |
FENDER PANEL, LH Price: Call Us |
| 36 |
48566 |
CABLE, SEAT STOP Price: Call Us |
| 37 |
48464 |
BALL JOINT, NEUTRAL Price: Call Us |
| 38 |
45479 |
FENDER - LH Price: Call Us |
| 39 |
46392 |
CASTER WHEEL YOKE ASSEMBLY, COMPLETE Price: Call Us |
| 40 |
04066-01 |
QUICK PIN Price: Call Us |
| 41 |
45325 |
CASTER WHEEL YOKE Price: Call Us |
| 43 |
43041 |
SPACER Price: Call Us |
| 45 |
48537 |
WHEEL ASSEMBLY, COMPLETE Price: Call Us |
| 46 |
481770 |
Retainer This part replaces 48006-07. Price: Call Us |
| 47 |
481830 |
TIRE, 4.10/3.50 X 5 4 PLY This part replaces 48537-02. Price: Call Us |
| 48 |
481829 |
RIM, 5.0 X 3.25 W/GR ZERK & VLV This part replaces 48537-03. Price: Call Us |
| 49 |
43022 |
SLEEVE Price: Call Us |
| 50 |
481769 |
Roller Bearing .625 x 3.25" This part replaces 48006-06. Price: Call Us |
| 51 |
48717 |
SEAT SWITCH Price: Call Us |
| 52 |
484716 |
BACK CUSHION This part replaces 48704-02. Price: Call Us |
| 53 |
482111 |
Cushion, Lower Seat This part replaces 48704-03. Price: Call Us |
| 54 |
482108 |
Arm Pad, RH This part replaces 48704-04. Price: Call Us |
| 55 |
482107 |
Arm Pad, LH This part replaces 48704-05. Price: Call Us |
| 56 |
481474 |
Switch, Parking Brake This part replaces 48522. Price: Call Us |
| 57 |
421253 |
NEUTRAL LOCK BRACKET, RH Price: Call Us |
| 57A |
421252 |
NEUTRAL LOCK BRACKET, LH Price: Call Us |
| 58 |
04017-24 |
CAP SCREW, 5/16-18 X 2-3/4" SERRATED FLANGE Price: Call Us |
| 59 |
43240 |
SPACER NEUTRAL SPRING Price: Call Us |
| 60 |
43258 |
SPACER, NEUTRAL LOCK BRACKET Price: Call Us |
| 62 |
04010-22 |
Screw w/washer, 1/4-20 x .75" This part replaces 48704-06. Price: Call Us |
| 63 |
04001-99 |
HEX HEAD BOLT, 3/8-24 X 6-1/2", UNF Price: Call Us |
