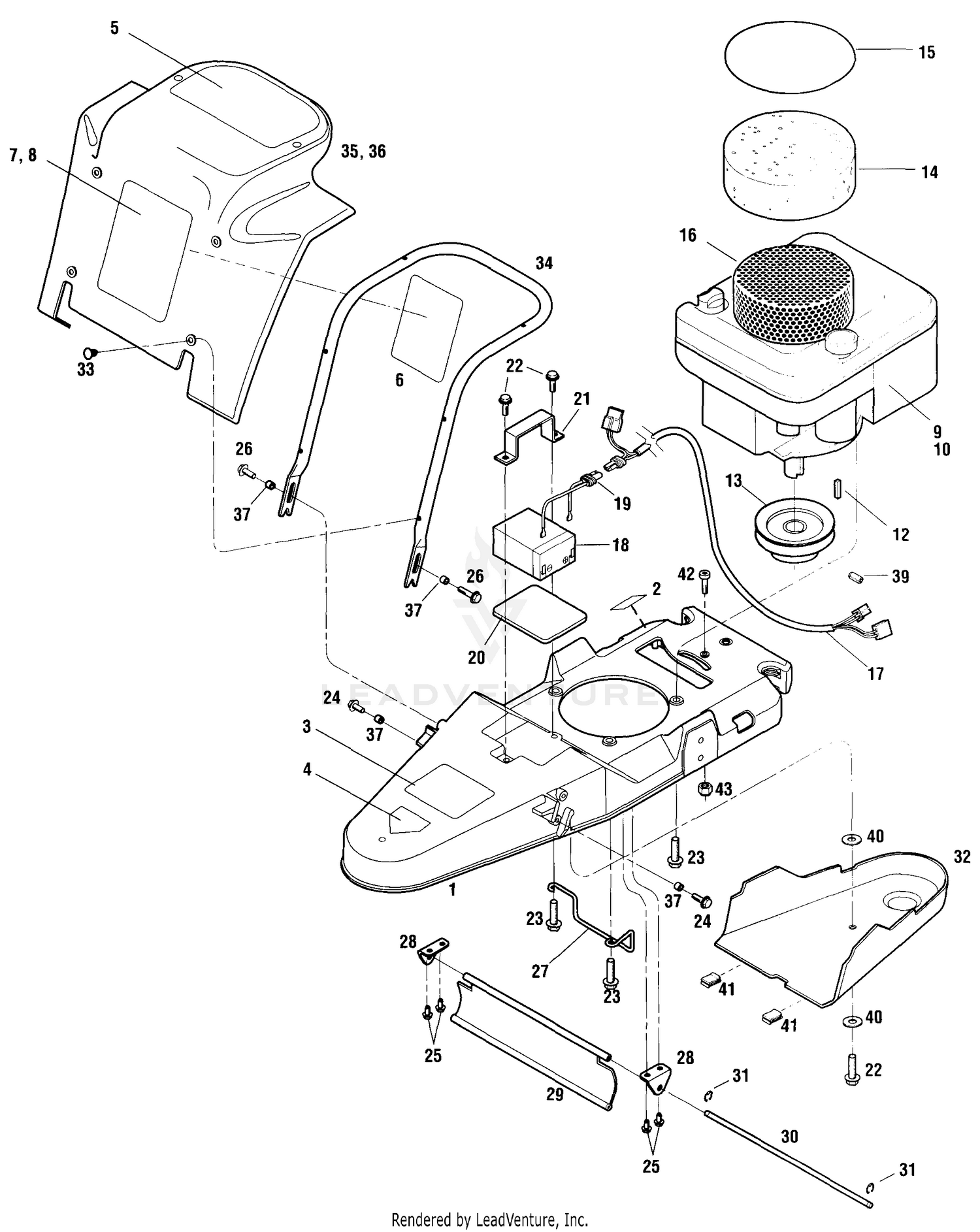

| Ref | Part Number | Description |
|---|
| 1 |
1915721 |
DECK WITH DECALS Not Available Price: |
| 1 |
94-4031 |
SHAFT-AXLE Price: $1,779.41 |
| 2 |
1904511 |
DECAL-HOT SURFACE Not Available Price: |
| 2 |
94-4036 |
SCREW Price: $41.13 |
| 3 |
1904403 |
DECAL-WARN. THRN O Not Available Price: |
| 3 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 4 |
1739687 |
Decal-Danger Feet/Hands Price: $6.36 |
| 4 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 5 |
1904404 |
DECAL-OPER INST Not Available Price: |
| 5 |
95-2632 |
DISCONTINUED Price: Call Us |
| 6 |
1904405 |
DECAL-PARALLEL TRI Not Available Price: |
| 6 |
94-4030 |
WHEEL BEARING ASM Price: $208.67 |
| 7 |
94-4144 |
COLLAR-BEARING Price: $159.58 |
| 8 |
94-4142 |
RING-RETAINING Price: $6.16 |
| 9 |
94-4032 |
SEAL-LIP Price: $43.91 |
| 10 |
95-2631 |
Housing-Axle Price: Call Us |
| 11 |
33106-035 |
SCREW-HHF This part replaces 94-4007. Price: $8.35 |
| 12 |
94-4015 |
GASKET-HOUSING, AXLE Price: $36.13 |
| 12 |
GW-9301 |
Key, 3/16 sq. x 1 This part replaces 9301. Price: $3.46 |
| 13 |
1915240 |
ENGINE PULLEY Not Available Price: |
| 14 |
69-3170 |
RING-RETAINING Price: $11.40 |
| 14 |
BS-693514 |
DEBRIS FOAM FILTER Not Available This part replaces 1915276. Price: |
| 15 |
1915304 |
O-RING (TRIMMER EN Not Available Price: |
| 15 |
94-3913 |
SHAFT-FRONT, PTO Price: $689.95 |
| 16 |
1915275 |
ENGINE DEBRIS GUARD/STEEL Not Available Price: |
| 16 |
94-4052 |
DISCONTINUED Price: Call Us |
| 17 |
93-5966 |
BEARING KIT Price: $157.64 |
| 18 |
94-4003 |
DISCONTINUED Price: Call Us |
| 20 |
99-5780 |
DIFFERENTIAL ASM W/RING & PINION This part replaces 99-5781. Price: $10,483.15 |
| 22 |
99-5780 |
DIFFERENTIAL ASM W/RING & PINION Price: $10,483.15 |
| 23 |
710-1007 |
Screw, Hex Wash Hd Tapp 3/8-16x1.5 This part replaces 1768194. Price: $5.71 |
| 24 |
100-1356 |
SCREW-HF This part replaces 94-4002. Price: $11.92 |
| 24 |
1754128 |
Hex Head Flange Screw, 1/4-20 Price: $3.11 |
| 25 |
1909301 |
SCREW 1/4-20 TAPTI Not Available Price: |
| 25 |
94-4143 |
STUD-WHEEL Price: $4.07 |
| 26 |
1763187 |
HEX SCREW Not Available Price: |
| 26 |
94-4035 |
SHAFT-AXLE Price: $2,556.48 |
| 27 |
1910865 |
GUILD-BELT Not Available Price: |
| 27 |
94-3975 |
PIN Price: $5.80 |
| 28 |
1915219001 |
FLAP BRACKET Not Available Price: |
| 28 |
94-3971 |
BEARING-BALL Price: $122.44 |
| 29 |
1915211 |
SHIELD-DEF Not Available Price: |
| 29 |
94-3959 |
GASKET-HOUSING Price: $70.76 |
| 30 |
1915212 |
ROD-DEFLECTOR SHIE Not Available Price: |
| 30 |
94-3997 |
RING-RETAINING Price: $7.62 |
| 31 |
1185304 |
E-RING 5/16 Not Available Price: |
| 31 |
94-3961 |
DISCONTINUED Price: Call Us |
| 32 |
1915205 |
BELT COVER Not Available Price: |
| 33 |
1915290 |
PUSH-IN FASTENER Not Available Price: |
| 33 |
94-3912 |
GEAR-DRIVE, FINAL Price: $703.98 |
| 34 |
1915238001 |
Engine Cover Support Price: Call Us |
| 34 |
94-3958 |
SPACER-PINION Price: $84.81 |
| 35 |
75-0520 |
BEARING-BALL Price: $88.98 |
| 36 |
99-5784 |
WASHER Price: $38.07 |
| 37 |
1915320 |
SPACER .35 Not Available Price: |
| 37 |
99-5783 |
DISCONTINUED Price: Call Us |
| 38 |
98-1812 |
SCREW Price: $8.78 |
| 39 |
94-3953 |
NUT-HEX Price: $27.51 |
| 39 |
GW-9677 |
SCREW-SET Not Available This part replaces 9677. Price: |
| 40 |
94-3914 |
SHAFT-DRIVE, PTO Price: $899.83 |
| 40 |
94018 |
WASHER 2.5X.316X Not Available Price: |
| 41 |
9218 |
Clip Price: Call Us |
| 41 |
94-3909 |
DISCONTINUED Price: Call Us |
| 42 |
GW-9719 |
Socket Hd Capscrew, 1/4-20 x 1 This part replaces 9719. Price: $4.53 |
| 501894103 |
501894103 |
PISTON CPL Price: $119.99 |
| 503131304 |
503131305 |
GASKET This part replaces 503131304. Price: $4.99 |
| 503132901 |
503132901 |
SUPPORT BUSHING Price: $9.99 |
| 503134601 |
503134601 |
GASKET Price: $4.99 |
| 503216025 |
503216025 |
SCREW Price: $3.99 |
| 503230005 |
503230005 |
WASHER 6.5X11 Price: $2.99 |
| 503235109 |
530030179 |
PLUG SPARK (RCJ6-Y) This part replaces 503235109. Price: $3.99 |
| 503289026 |
503289026 |
PISTON RING Price: $22.99 |
| 503665601 |
503665601 |
VALVE Price: $24.99 |
| 506292402 |
506292404 |
GASKET KIT K1260 This part replaces 506292402. Price: $9.99 |
| 506294271 |
576270003 |
CYLINDER ASSY This part replaces 506294271. Price: $199.99 |
| 506341401 |
506341401 |
PLATE Price: $11.99 |
