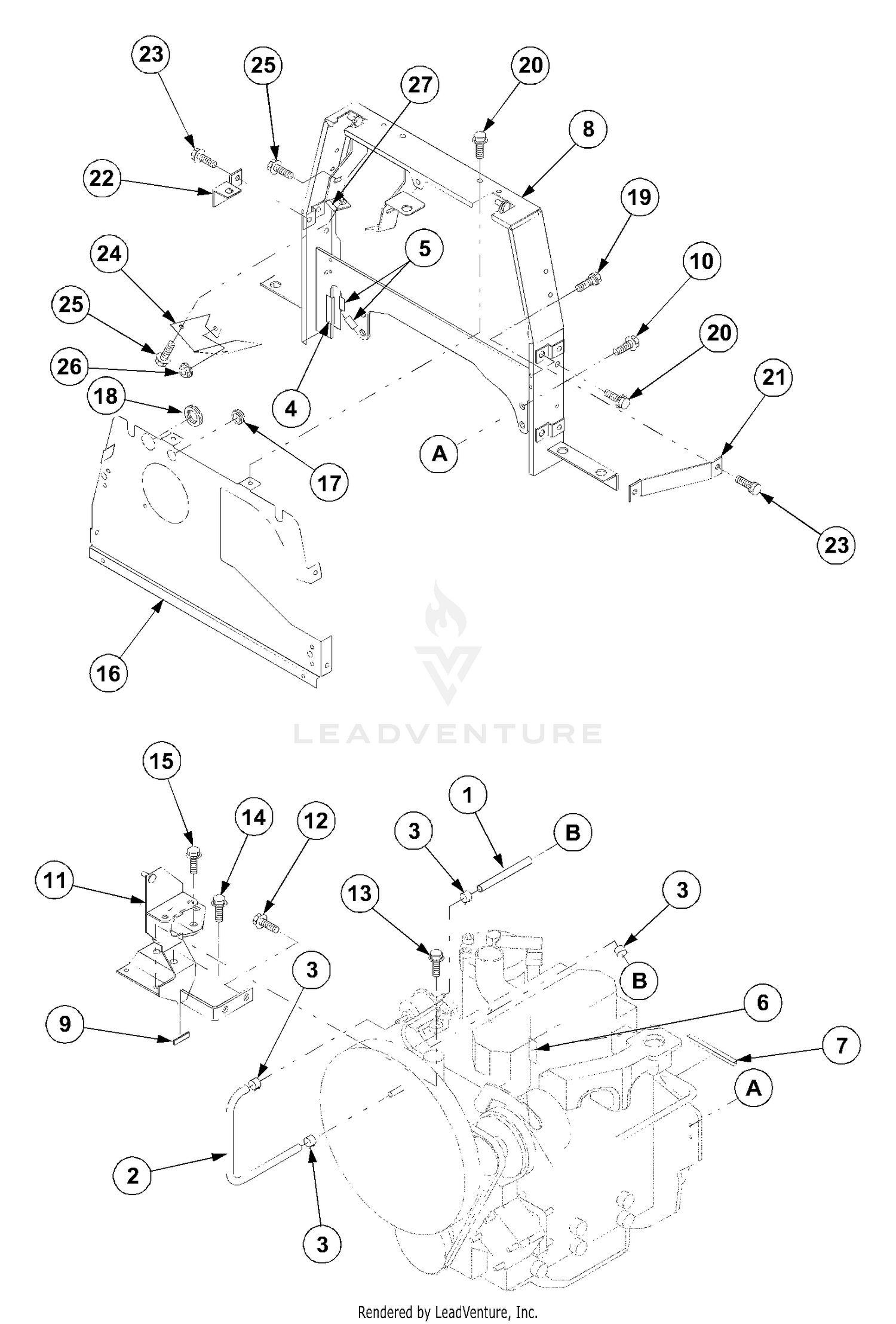

Bonnet (Part 3)
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 139037 | DECAL.PNL.CONTROL Price: Call Us |
| 1 | 99-8301 | NUT Price: $8.64 |
| 1 | MA-09810060225 | FUEL HOSE Not Available Price: |
| 2 | 139035 | DECAL.GD.BELT.5HP Price: Call Us |
| 2 | 99-8307 | WASHER-PLAIN Price: $8.84 |
| 2 | MA-09810060225 | FUEL HOSE Not Available Price: |
| 3 | 139039 | DECAL.SHLD.TINE Price: Call Us |
| 3 | 99-8302 | WASHER-ADJUSTING Price: $7.16 |
| 3 | MA-00504112005 | CLAMP 21 Not Available Price: |
| 4 | 136943 | DECAL.INSTRUCTION Price: Call Us |
| 4 | 99-8303 | SPRING-NOZZLE Price: $11.49 |
| 4 | MA-35449448000 | CUSHION-RUBBER Not Available Price: |
| 5 | 120431X | DECAL TI Price: Call Us |
| 5 | 99-8305 | ROD-PUSH Price: $60.67 |
| 5 | MA-10253429000 | BAND-RUBBE Not Available Price: |
| 6 | 102180X | DECAL CRT Price: Call Us |
| 6 | 99-8304 | SPACER-DISTANCE Price: $29.26 |
| 6 | MA-10440135000 | CUSION-RUBBER Not Available Price: |
| 7 | 110593X | SUB= 121858X Price: Call Us |
| 7 | 99-8308 | PIECE-NOZZLE Price: $90.57 |
| 7 | MA-60211728000 | CUSHION-RUBBER Not Available Price: |
| 8 | 271948 | DECAL, BRIGGS & STRATTON Price: Call Us |
| 8 | 99-8306 | NUT-NOZZLE Price: $34.65 |
| 8 | MA-19560115AG0 | FRAME-HOOD Not Available Price: |
| 9 | 120075X | DECAL TI Price: Call Us |
| 9 | 99-8309 | ADJUSTING WASHER ASM Price: $56.19 |
| 9 | 99-8310 | WASHER-ADJUST (0.10MM) Price: $2.74 |
| 9 | 99-8311 | WASHER-ADJUST (0.20MM) Price: $3.56 |
| 9 | 99-8313 | WASHER-ADJUST (0.40MM) Price: $2.74 |
| 9 | 99-8314 | WASHER-ADJUST (0.50MM) Price: $1.91 |
| 9 | 99-8315 | WASHER-ADJUST (0.52MM) Price: $1.91 |
| 9 | 99-8316 | WASHER-ADJUST (0.54MM) Price: $1.91 |
| 9 | 99-8317 | WASHER-ADJUST (0.56MM) Price: $1.91 |
| 9 | 99-8318 | WASHER-ADJUST (0.58MM) Price: $1.91 |
| 9 | 99-8319 | WASHER-ADJUST (0.80MM) Price: $1.91 |
| 9 | MA-10250136000 | CUSHION Not Available Price: |
| 10 | MA-F1540110016 | BOLT W/WASHER Not Available Price: |
| 11 | MA-19560121001 | BRACKET Not Available Price: |
| 12 | MA-H1740108016 | BOLT W/WASHER Not Available Price: |
| 13 | MA-H1940106025 | BOLT Not Available This part replaces MA-H1640106025. Price: |
| 14 | MA-H1550110020 | BOLT,W/WASHER Not Available Price: |
| 15 | MA-H1540110025 | BOLT W/WASHER Not Available Price: |
| 16 | MA-19560131001 | COVER Not Available Price: |
| 17 | MA-00401001600 | GROMMET-FIREWALL Not Available Price: |
| 18 | MA-00401002500 | GROMMET Not Available Price: |
| 19 | MA-H1440106012 | BOLT,W/WASHER Not Available Price: |
| 20 | MA-H1440106012 | BOLT,W/WASHER Not Available Price: |
| 21 | MA-19560143AG0 | BRACKET-HOOD FRAME Not Available Price: |
| 22 | MA-19560144AG0 | BRACKET-HOOD FRAME Not Available Price: |
| 23 | MA-A0500108020 | BOLT-FLANG Not Available Price: |
| 24 | MA-19560135000 | PLATE Not Available Price: |
| 25 | MA-H1440106016 | Bolt,w/Washer Price: $2.83 |
| 26 | MA-F3000106000 | NUT Not Available Price: |
