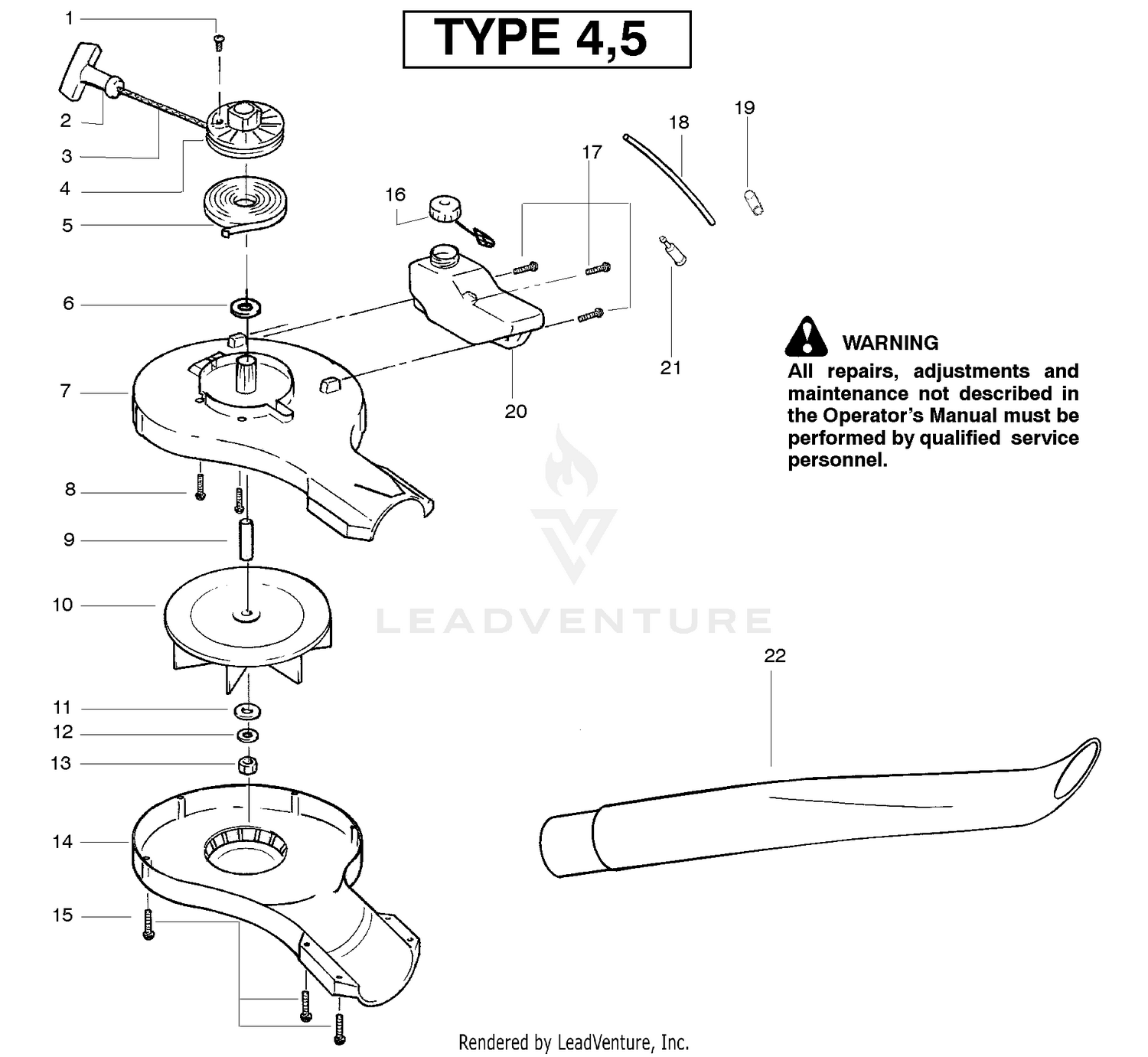

Housing - Type 4-5
Parts (20)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530016392 | Screw Price: $1.99 |
| 2 | 530049488 | Handle-Starter Price: $1.99 |
| 3 | 530069907 | Kit-Rope Price: $3.99 |
| 5 | 545008011 | KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 6 | 530015149 | Washer Price: $1.99 |
| 7 | 530058713 | Housing-Impeller (Upper) Price: $7.99 |
| 8 | 530015814 | Screw Price: $1.49 |
| 9 | 530052434 | Spacer-Flywheel Price: $1.99 |
| 10 | 530053237 | Assy-Impeller Price: $5.99 |
| 11 | 530016260 | Washer-Flat Price: $0.99 |
| 12 | 530092322 | Lockwasher Price: $1.99 |
| 13 | 530626605 | Nut Price: $1.99 |
| 14 | 530054181 | Assy-Impeller Housing (Lower) Price: $6.99 |
| 15 | 530015886 | Screw Price: $1.99 |
| 16 | 530014347 | Assy-Fuel Cap Price: $4.49 |
| 17 | 530016349 | Screw Price: $1.99 |
| 18 | 530069599 | Kit-Fuel Line Price: $4.69 |
| 19 | 530053314 | Grommet-Fuel Line Price: $1.99 |
| 21 | 530095646 | Assy-Fuel Pick-up This part replaces 530014362. Price: $2.69 |
| 22 | 530052337 | Tube-Blower Price: $5.99 |
