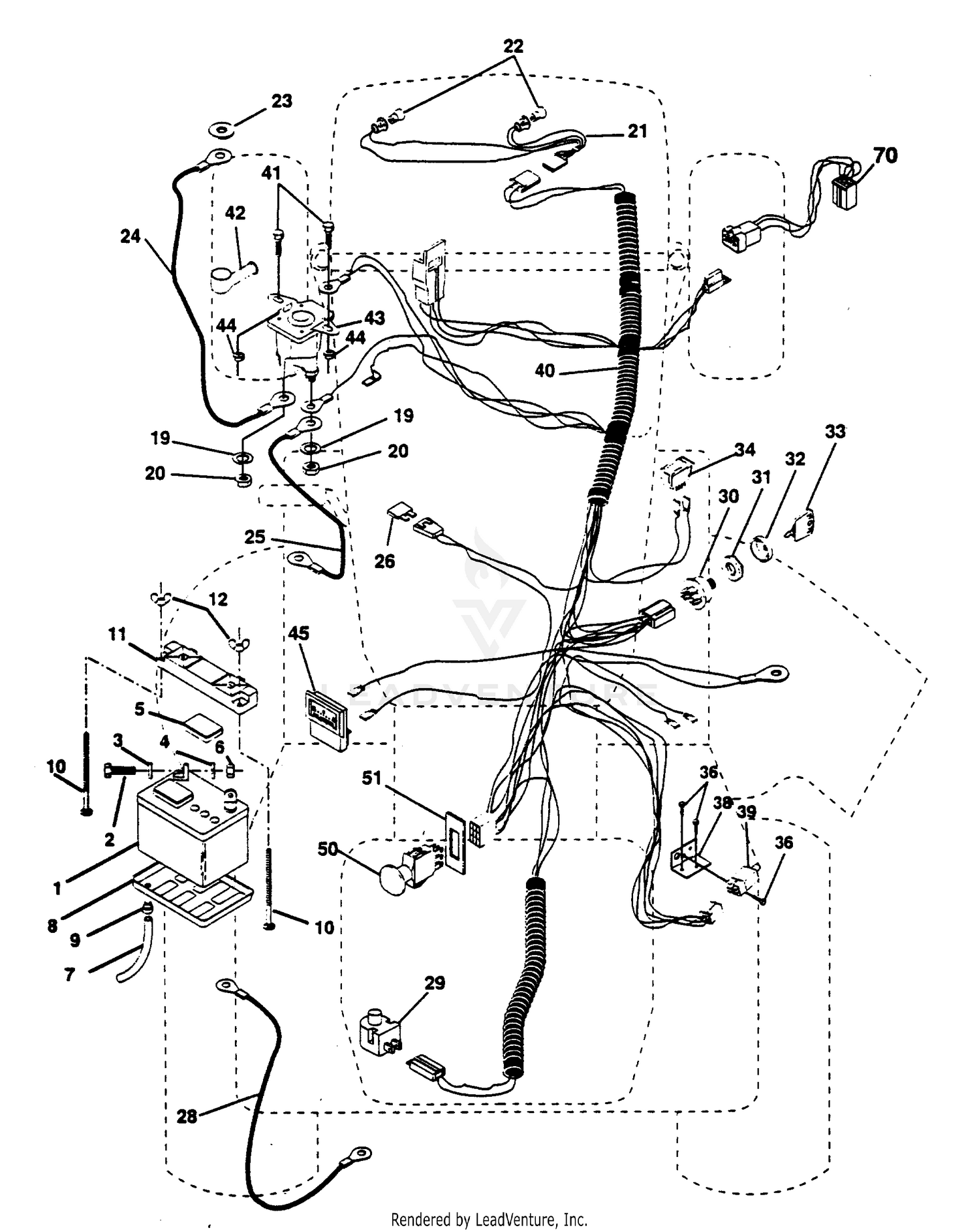

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532121537. Price: $139.99 |
| 1 |
92-8863 |
REPAIR KIT This part replaces 353-469. Price: $53.91 |
| 2 |
874760412 |
Bolt, Hex Head 1/4-20 x 3/4 (AYP part number) Price: $3.99 |
| 3 |
819091016 |
Washer 9/32 x 5/8 x 16 Gauge (AYP part number) Price: $2.99 |
| 4 |
810040400 |
Washer, Lock 1/4 (AYP part number) Price: $3.99 |
| 5 |
532121264 |
Caps, Battery (AYP part number) Price: $10.91 |
| 6 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 7 |
532007697 |
Tube, Tray, Battery (AYP part number) Price: $6.23 |
| 8 |
532007603 |
TRAY.BATTERY This part replaces 532124886. Price: $3.99 |
| 9 |
532109596 |
Clamp, Hose (AYP part number) Price: $2.99 |
| 10 |
872240460 |
Bolt, Carriage 1/4-20 x 7-1/2 (AYP part number) Price: $3.99 |
| 11 |
532150109 |
BATTERY HOLDDOWN This part replaces 532102476. Price: $4.99 |
| 12 |
532146525 |
This part replaces 532123198. Price: $3.99 |
| 19 |
810040400 |
LOCKWASHER This part replaces 810090400. Price: $3.99 |
| 20 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $3.99 |
| 21 |
532136850 |
Harness, Socket, Light (Inc.11) (AYP part number) Price: $15.99 |
| 22 |
532004152 |
Bulb, Light (AYP part number) Price: $2.99 |
| 23 |
811150400 |
Washer, Lock, Internal Tooth 1/4 (AYP part number) Price: $2.99 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $6.99 |
| 25 |
532124770 |
Cable, Battery (AYP part number) Price: $8.99 |
| 26 |
532108824 |
Fuse (AYP part number) Price: $3.99 |
| 28 |
532124773 |
Cable, Battery (AYP part number) Price: $4.99 |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $7.99 |
| 30 |
532144921 |
Switch, Ignition (AYP part number) This part replaces 532140399. Price: $11.99 |
| 31 |
532145774 |
KIT-WASHER/NUT This part replaces 532140400. Price: $3.99 |
| 32 |
532141226 |
Cover, Switch, Ignition (AYP part number) Price: $3.99 |
| 33 |
532140401 |
Key, Molded (AYP part number) Price: $3.99 |
| 34 |
532110712 |
Switch, Light (AYP part number) Price: $4.99 |
| 36 |
817021008 |
Screw, Hex Tap #10-24 UNC (AYP part number) Price: $1.99 |
| 38 |
532108236 |
Bracket Switch Interlock (AYP part number) Price: $2.99 |
| 39 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $4.99 |
| 40 |
532140421 |
Harness, Ignition (AYP part number) Price: $79.99 |
| 41 |
539990071 |
HCS 1/4-20. This part replaces 871110408. Price: $1.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532138406 |
Solenoid (AYP part number) Price: $19.99 |
| 44 |
873640400 |
Nut, Hex, Keps 1/4-20 (AYP part number) Price: $2.99 |
| 45 |
532122822 |
Ammeter rectangular 15 AMP (AYP part number) Price: $11.99 |
| 50 |
532154959 |
SWITCH PTO 3 PDT This part replaces 532140404. Price: $39.99 |
| 51 |
532140405 |
Ring, Retainer, Pto (AYP part number) Price: $3.99 |
