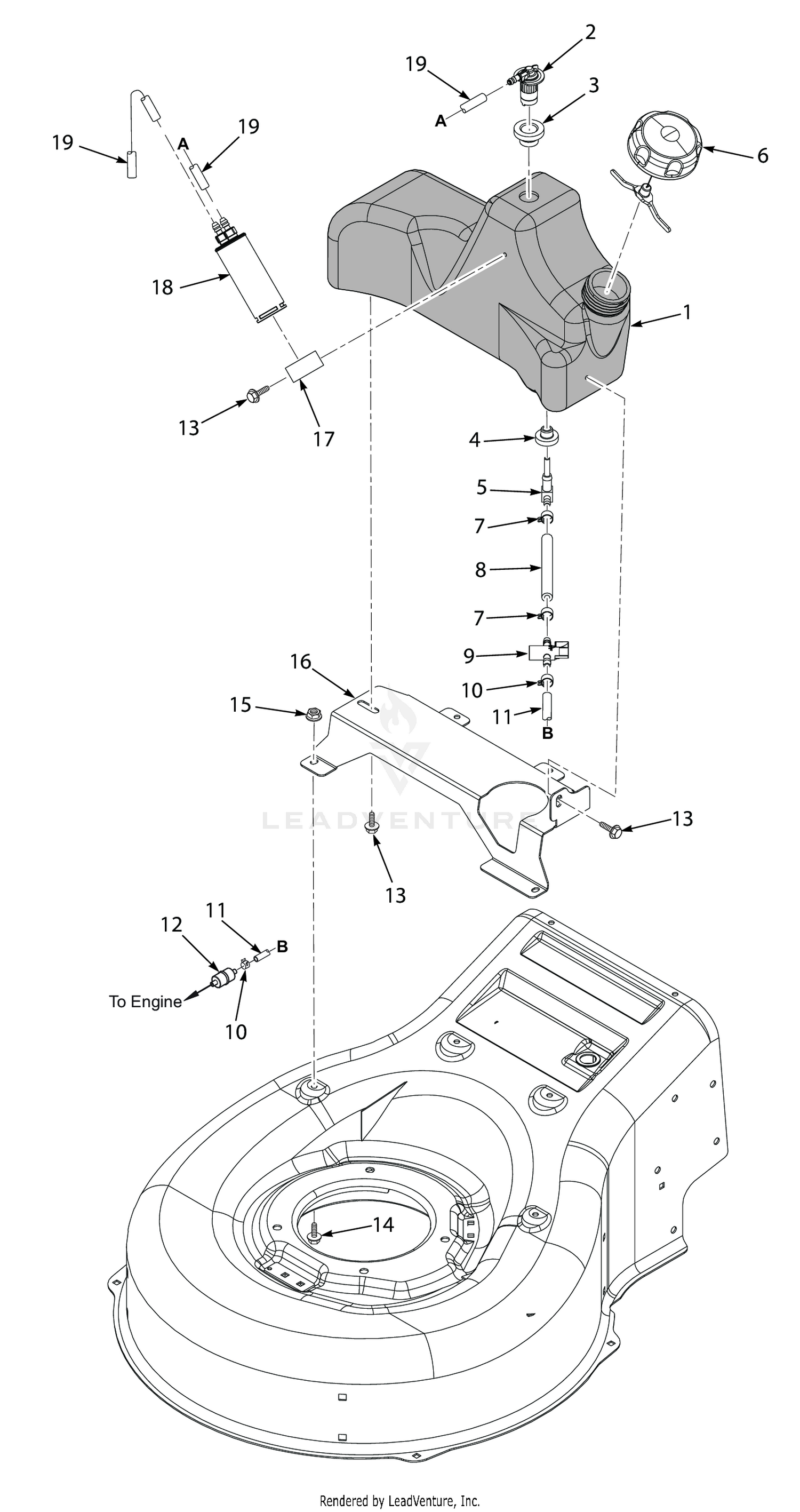

| Ref | Part Number | Description |
|---|
| 1 |
463366 |
Fuel Tank Assembly w/Decal Price: Call Us |
| 1 |
6-1120 |
DISCONTINUED Price: Call Us |
| 2 |
2-2139 |
DISCONTINUED Price: Call Us |
| 2 |
486939 |
Valve Price: Call Us |
| 3 |
34010 |
Bushing Price: Call Us |
| 3 |
486940 |
Grommet, Valve Price: Call Us |
| 4 |
482571 |
Bushing, 0.56" Dia. Viton Price: Call Us |
| 4 |
54527 |
Thrust Washer Price: Call Us |
| 5 |
3296-15 |
NUT-LOCK, NI Price: $1.75 |
| 5 |
483748 |
Elbow, 90 Degree w/Screen Price: Call Us |
| 6 |
486967 |
Cap, Fuel Tank Price: Call Us |
| 6 |
8-3990 |
REAR ROLLER ASM This part replaces 5-3939. Price: $352.13 |
| 7 |
4-5189-01 |
ROLLER AND END CAP ASM This part replaces 4-5659. Price: $216.78 |
| 7 |
48059-01 |
Clamp, Fuel Hose 1/4" Hose I.D. Price: Call Us |
| 8 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 8 |
483617 |
Fuel Hose, 1/4" I.D. Non-Perm (791DFI Fuel Return) Price: Call Us |
| 9 |
253-122 |
SEAL-OIL Price: $6.83 |
| 9 |
486938 |
Valve, Fuel Shutoff Price: Call Us |
| 10 |
254-79 |
BEARING-ROLLER, CUP Price: $6.39 |
| 11 |
254-78 |
BEARING-CONE Price: $12.22 |
| 12 |
54523 |
Sleeve Price: Call Us |
| 13 |
04017-04 |
CAP SCREW, 1/4-20 X 1/2" SERRATED FLANGE HEX Price: Call Us |
| 13 |
253-117 |
SEAL-OIL Price: $5.72 |
| 14 |
04003-07 |
Bolt, Carriage 1/4-20 x 1/2" Price: Call Us |
| 14 |
8-3980 |
SHAFT-ROLLER Price: $76.62 |
| 15 |
04117-03 |
Nut, Flanged Elastic Stop 1/4-20 Price: Call Us |
| 15 |
3220-7 |
NUT-JAM Price: $4.09 |
| 16 |
2-2149 |
LH ROLLER BRKT & BSHG Price: $71.47 |
| 16 |
428991 |
Bracket, Fuel Tank Mounting Price: Call Us |
| 17 |
48030-26 |
Clamp, 1-1/2" Cable Price: Call Us |
| 18 |
486925 |
Canister, Carbon 1.28 Gal. Price: Call Us |
