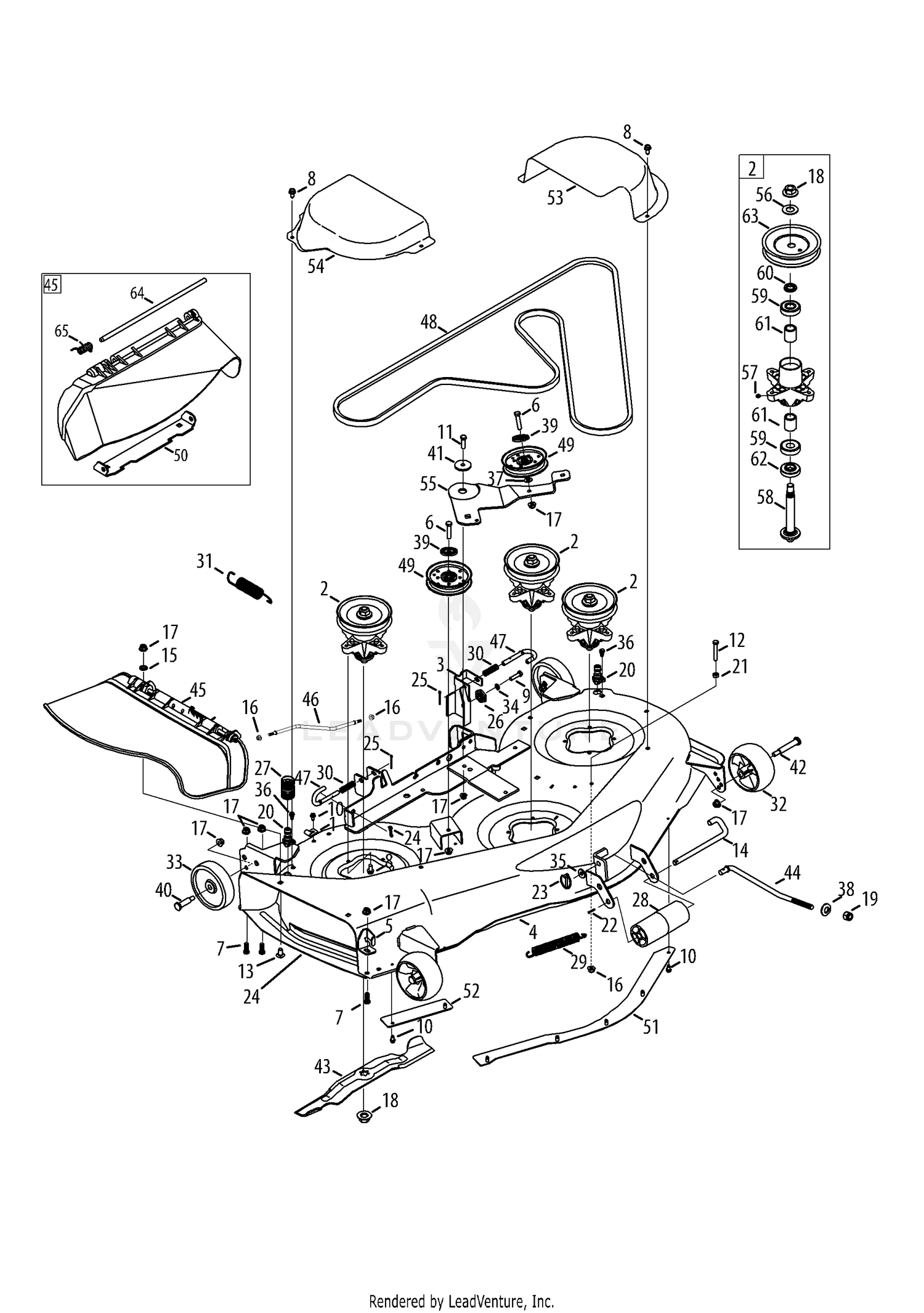

| Ref | Part Number | Description |
|---|
| 1 |
96606 |
Hook Retainer Bracket Price: $6.71 |
| 2 |
918-04125C |
PULLEY & SPINDLE ASSEMBLY 5.39" W/O FTG This part replaces 918-04125B. Price: $123.95 |
| 3 |
683-0254B |
Bracket Assembly, Deck, Hanger LH Not Available This part replaces 683-0254B-0637. Price: |
| 4 |
983-04645A-0637 |
Deck 50" Price: $983.12 |
| 5 |
703-3279 |
Chute Deflector Stop Price: $35.25 |
| 6 |
710-0347 |
Hex Screw, 3/8-16:1.75 Price: $4.39 |
| 7 |
710-04095 |
Hex Screw, 3/8-16:1.00 Price: $4.39 |
| 8 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 9 |
710-0528 |
Hex Screw, 5/16-18:1.25 Price: $3.90 |
| 10 |
710-0599 |
Taptite Screw, 1/4-20:0.500 Price: $3.86 |
| 11 |
710-3005 |
Hex Screw, 3/8-16:1.25 Price: $3.61 |
| 12 |
710-3103 |
Hex Screw, 5/16-18:2.0 Price: $4.02 |
| 13 |
710-3178 |
CARRIAGE BOLT 3/8-16 x .75 Price: $3.93 |
| 14 |
711-3314A |
Roller Pin, 1/2" x 7.31 Lg This part replaces 911-3314. Price: $22.55 |
| 15 |
712-0229 |
Push Nut, 3/8 Price: $3.14 |
| 16 |
712-04063 |
Flangelock Nut, 5/16-18 Price: $3.56 |
| 17 |
712-04065 |
Flangelock Nut, 3/8-16 Price: $3.68 |
| 18 |
712-0417A |
HEX NUT Price: $6.50 |
| 19 |
712-04243 |
Flexlock Nut, 1/2-13 Price: $3.52 |
| 20 |
731-07487 |
Deck Wash Nozzle Price: $3.86 |
| 21 |
712-3010 |
HEX NUT 5/16-18 This part replaces 912-3010. Price: $3.89 |
| 22 |
714-0111 |
Cotter Pin This part replaces 914-0111. Price: $4.20 |
| 23 |
753-04070 |
Lynch Pin, .1875 Price: $8.64 |
| 24 |
703-3511B-0637 |
Finger Guard Price: $61.47 |
| 25 |
714-0470 |
Cotter Pin, 1/8 x 1.25 This part replaces 914-0470. Price: $3.90 |
| 26 |
917-04074 |
Deck Adjustment Gear Price: $11.45 |
| 27 |
921-04041 |
Water Nozzle Adaptor Price: $20.19 |
| 28 |
731-05679B |
ROLLER This part replaces 731-05679A. Price: $15.80 |
| 29 |
732-0459C |
Extension Spring, .94 DIA. x 6.74 LG Price: $16.05 |
| 30 |
732-04652 |
Compression Spring, .535 OD x 1.751 LG Price: $5.88 |
| 31 |
732-0934 |
Extension Spring, 1.15 OD x 5.99 LG Price: $10.43 |
| 32 |
734-04155 |
Front Deck Wheel Price: $19.04 |
| 33 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 34 |
936-0119 |
Lock Washer, 5/16 Price: $4.29 |
| 35 |
736-0179 |
Fl-Wash. 17/32" I.D. This part replaces 936-0179. Price: $4.02 |
| 36 |
738-04278 |
Shoulder Screw, 1/4-20 x 0.50 Price: $5.99 |
| 37 |
736-0300 |
Fl-Wash. .385" I.D. This part replaces 936-0300. Price: $3.93 |
| 38 |
736-0317 |
Bell Washer, .63 x 1.25 x .18 Price: $6.99 |
| 39 |
783-07236 |
Pulley Cap Price: $4.64 |
| 40 |
938-0373 |
Shoulder Bolt, .496 x 1.525:3/8-16 Price: $8.45 |
| 41 |
738-04162C |
Shoulder Spacer, .8840 x .190 Price: $12.76 |
| 42 |
938-3056 |
Shoulder Bolt, .496 x 2.50:3/8-16 Price: $8.53 |
| 43 |
942-04053C |
Blade Price: $26.85 |
| 44 |
747-05067A |
Front Deck Lift Rod Price: $18.67 |
| 45 |
631-04070C |
Chute Assembly Price: $107.73 |
| 46 |
747-05462 |
Deck Sway Rod Price: $29.83 |
| 47 |
747-1116 |
Deck Release H&le Rod Price: $11.17 |
| 48 |
954-04077A |
V-BELT B SEC x 134 This part replaces 954-04077. Price: $76.31 |
| 49 |
753-08171 |
Idler Pulley, 4.25"DIA Price: $33.06 |
| 50 |
783-05030 |
Chute Bracket Price: $25.57 |
| 51 |
783-04414A-0637 |
Center Skirt Price: $30.88 |
| 52 |
783-04415-0637 |
RH Skirt Price: $26.98 |
| 53 |
783-05280-0637 |
LH Belt Cover Price: Call Us |
| 54 |
783-05281-0637 |
COVER BELT (RH) (POWDER BLACK) Not Available Price: |
| 55 |
783-08615 |
IDLER PIVOT BRACKET Price: $69.85 |
| 56 |
736-0315 |
Flat Washer, .760 x 1.50 x .120 Price: $5.94 |
| 57 |
937-3000 |
Lube Fitting Price: $4.04 |
| 58 |
738-1010A |
Spindle Shaft Price: $43.21 |
| 59 |
741P0919B |
BALL BEARING This part replaces 941-0919B. Price: $18.90 |
| 60 |
748-0160A |
Spacer, .790 ID x 1.25 OD x .175 Price: $5.87 |
| 61 |
750-1000 |
Spacer, .80 x 1.10 x 1.322 Price: $3.90 |
| 62 |
750-1349A |
Spacer, .79 x 1.82 x .55 Price: $12.22 |
| 63 |
756-04216 |
Deck Pulley Price: $29.13 |
| 64 |
711-04565 |
Hinge Pin Price: $13.59 |
