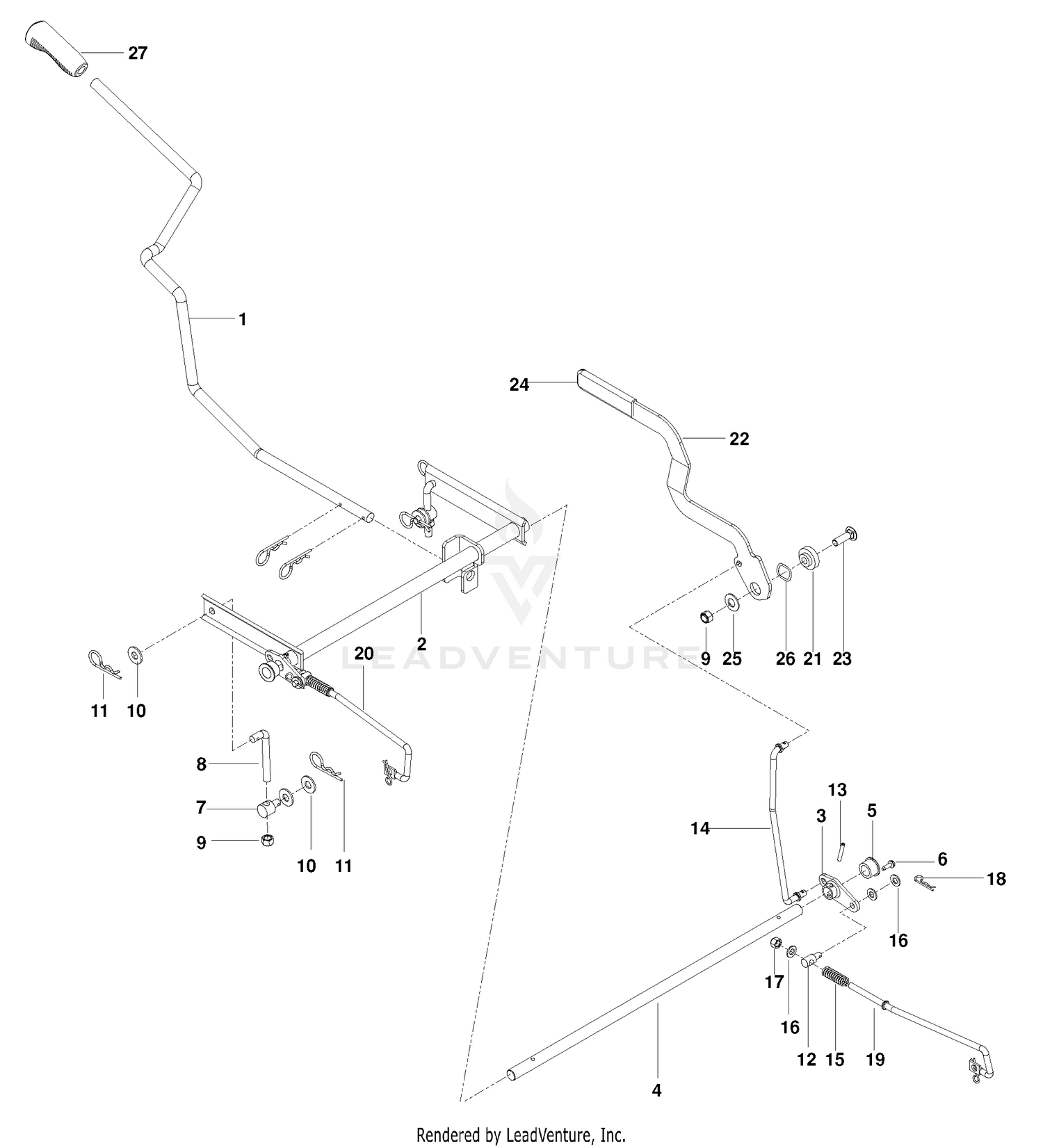

| Ref | Part Number | Description |
|---|
| 1 |
525580402 |
ARM, LIFT HANDLE, BLK Price: $37.99 |
| 1 |
63-8090-03 |
LOWER HOUSING ASM This part replaces 63-8090. Price: $1,548.75 |
| 2 |
3219-2 |
NUT-HEX Price: $0.37 |
| 2 |
574356802 |
SHAFT, LIFT WLDMT, BLACK Price: $84.99 |
| 3 |
3255-8 |
WASHER-LOCK Price: $0.31 |
| 3 |
525580201 |
BELLCRANK, BRAKE Price: $44.99 |
| 4 |
21-8270 |
PIN-DOWEL Price: $6.65 |
| 4 |
574356601 |
ROD, BRAKE Price: $24.99 |
| 5 |
21-7770 |
SCREW-GEAR, DRIVE Price: $1.97 |
| 5 |
539109368 |
PLASTIC BUSHING Price: $3.99 |
| 6 |
21-7670 |
CASE-DIFFERENTIAL Price: $687.90 |
| 6 |
596584001 |
Screws This part replaces 539991034. Price: $2.99 |
| 7 |
21-7700 |
SHAFT-MATE, PINION Price: $54.05 |
| 7 |
539118179 |
SWIVEL Price: $11.99 |
| 8 |
21-7720 |
WASHER-THRUST Price: $3.39 |
| 8 |
539115247 |
L ROD 3-1/8" Price: $7.99 |
| 9 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 24-8790. Price: $702.98 |
| 9 |
596240901 |
GSPW Nuts This part replaces 539976979. Price: $2.99 |
| 10 |
110-4143 |
KIT-REPLACEMENT, REVACYCLE GEARS This part replaces 21-7690. Price: $702.98 |
| 10 |
596433701 |
GSPW Washers This part replaces 539990517. Price: $2.99 |
| 11 |
21-7730 |
WASHER-THRUST, PINION Price: $2.65 |
| 11 |
596273101 |
Pins This part replaces 539976989. Price: $2.99 |
| 12 |
539112308 |
BRAKE SWIVEL Price: $8.99 |
| 13 |
43-6760 |
BEARING-ROLLER, CONE TAPER Price: $113.20 |
| 13 |
539101082 |
ROLL PIN 3/16 X 1-1/4 ZD Price: $2.99 |
| 14 |
525735701 |
LINKAGE, BRAKE, UPPER Price: $7.99 |
| 14 |
92-1773 |
SCREW-HHF This part replaces 324-23. Price: $3.05 |
| 15 |
12-5450 |
SCREW Price: $7.99 |
| 15 |
539101224 |
SPRING Price: $19.99 |
| 16 |
21-7830 |
COVER-GEAR Price: $26.87 |
| 16 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 17 |
596583702 |
Nuts This part replaces 539990717. Price: $2.99 |
| 17 |
86-7230 |
GEAR-INPUT, TRANSMISSION This part replaces 21-8150. Price: $610.12 |
| 18 |
43-6710 |
SHIM-PINION (.003) Price: $2.17 |
| 18 |
596580601 |
Pins This part replaces 539976988. Price: $3.99 |
| 19 |
43-6711 |
SHIM-PINION (.005) Price: $3.80 |
| 19 |
525583601 |
LINKAGE, EZT BRAKE RT Price: $22.99 |
| 20 |
43-6712 |
SHIM-PINION (.010) Price: $3.19 |
| 20 |
525583701 |
LINKAGE, EZT BRAKE LT Price: $7.99 |
| 21 |
43-6713 |
SHIM-PINION (.030) Price: $6.99 |
| 21 |
539120220 |
BRAKE ARM PIVOT Price: $19.99 |
| 22 |
525485602 |
HANDLE, BRAKE, BLK Price: $22.99 |
| 22 |
86-7190 |
UPPER HOUSING ASM This part replaces 70-2760. Price: $889.26 |
| 23 |
3210-7 |
SCREW-HH Price: $0.61 |
| 23 |
539100413 |
RHSNB 3/8-16 X 1-1/4 Price: $2.99 |
| 24 |
254-90 |
BEARING-CUP Price: $11.29 |
| 24 |
539120921 |
GRIP BRAKE HANDLE Price: $11.99 |
| 25 |
254-91 |
CONE-BEARING Price: $18.65 |
| 25 |
596581701 |
Washers This part replaces 539102843. Price: $2.99 |
| 26 |
43-6550 |
RING-SNAP Price: $0.94 |
| 26 |
539133007 |
WASHER, .825 X 1.087, WAVE Price: $2.99 |
| 27 |
21-7850 |
PLUG-CUP Price: $23.35 |
| 28 |
46-2210 |
SHIM-BEARING, FRONT Price: $6.91 |
| 29 |
21-8020 |
SPACER-BEARING Price: $28.84 |
| 30 |
354-18 |
DISCONTINUED Price: Call Us |
| 31 |
43-6750 |
BEARING-TAPER, CUP Price: $69.64 |
| 32 |
254-66 |
CUP-BEARING, ROLLER Price: $17.92 |
| 33 |
254-65 |
BEARING-ROLLER, CONE Price: $62.13 |
| 34 |
32121-15 |
PIN-ROLL This part replaces 21-7710. Price: $1.60 |
| 35 |
21-8090 |
SHIM-BEARING, DIFFERENTIAL (.003) Price: $1.09 |
| 36 |
21-8100 |
SHIM-BEARING, DIFFERENTIAL (.005) Price: $3.46 |
| 37 |
21-8110 |
SHIM-BEARING, DIFFERENTIAL (.010) Price: $3.73 |
| 38 |
21-8120 |
SHIM-BEARING, DIFFERENTIAL (.030) Price: $5.43 |
| 40 |
46-3330 |
DISCONTINUED Price: Call Us |
| 41 |
66-8130 |
DISCONTINUED Price: Call Us |
| 42 |
2412-34 |
CLAMP-HOSE Price: $2.14 |
| 43 |
354-71 |
DISCONTINUED Price: Call Us |
| 44 |
77-0550 |
DISCONTINUED Price: Call Us |
| 45 |
289-6 |
NIPPLE-PIPE Price: $6.96 |
