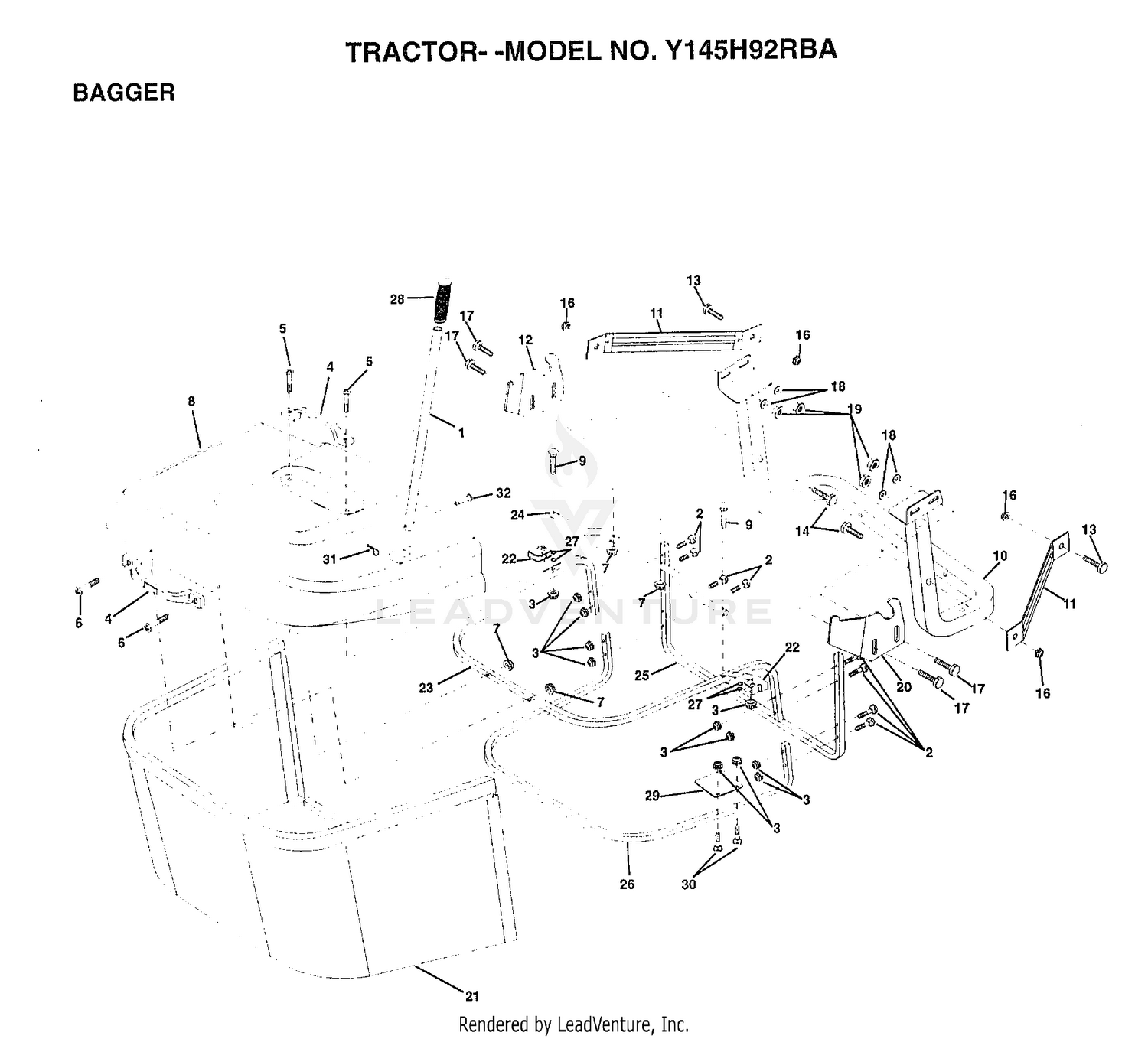

| Ref | Part Number | Description |
|---|
| 1 |
165249 |
TUBE.HDLE.BAG.CRD Price: Call Us |
| 1 |
74-5950 |
LATCH-SWELL Price: $21.28 |
| 2 |
106-4256-03 |
COVER-OUTER, WING Price: $106.34 |
| 2 |
72140416 |
BOLT.CARRIAGE.1/4-20X2.0 Price: Call Us |
| 3 |
106-4258-03 |
COVER-INNER, LH Price: $79.62 |
| 3 |
123976X |
SUB= 73900400 Price: Call Us |
| 4 |
106-4260 |
COVER-MOUNT, LH Price: $165.69 |
| 4 |
165693 |
HANDLE.GRAB.BLACK. Price: Call Us |
| 5 |
106-4252-03 |
COVER-OUTER, CENTER Price: $64.56 |
| 6 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 6 |
74981032 |
SCREW Price: Call Us |
| 7 |
106-4255-03 |
COVER-INNER, CENTER Price: $53.76 |
| 7 |
59931 |
NUT LOCK Price: Call Us |
| 8 |
106-4253-03 |
COVER-REAR, CENTER Price: $45.75 |
| 8 |
165715X505 |
COVER.BAG.CRD Price: Call Us |
| 9 |
106-4254 |
COVER-FRONT, CENTER Price: $152.14 |
| 9 |
72140418 |
BOLT CARRIAGE Price: Call Us |
| 10 |
106-4259 |
COVER-MOUNT, RH Price: $165.69 |
| 10 |
165716 |
SUPT.ASM.WLDMNT.BAG.CRD Price: Call Us |
| 11 |
106-4257-03 |
COVER-INNER, RH Price: $78.46 |
| 11 |
165719 |
BRKT.SUPT.UPPER.BAG.CRD Price: Call Us |
| 12 |
106-7173-01 |
SHIELD-RH Price: $27.73 |
| 12 |
165735 |
BRKT.PIVOT.BAG.LH.CRD Price: Call Us |
| 13 |
32104-95 |
SCREW-HWH Price: $0.41 |
| 13 |
72110606 |
BOLT Price: Call Us |
| 14 |
106-7174-01 |
SHIELD-LH Price: $27.73 |
| 14 |
74520640 |
BOLT.HEX.3/8-16X2-1/2 Price: Call Us |
| 16 |
73900600 |
SUB= 83923 Price: Call Us |
| 17 |
72140506 |
BOLT Price: Call Us |
| 18 |
19112016 |
WASHER Price: Call Us |
| 19 |
73800500 |
NUT Price: Call Us |
| 21 |
165780 |
BAG.ASM.CRD Price: Call Us |
| 22 |
165781 |
BRKT.SIDE.BAG.CRD Price: Call Us |
| 23 |
165782 |
TUBE.UPPER.BAG.CRD Price: Call Us |
| 24 |
165783 |
TUBE.PIVOT.BAG.CRD Price: Call Us |
| 25 |
165784 |
TUBE.FT.BAG.CRD Price: Call Us |
| 26 |
165785 |
TUBE.LOWER.BAG.CRD. Price: Call Us |
| 27 |
165786 |
GROMMET.EXTRUDED Price: Call Us |
| 28 |
165787 |
GRIP.HANDLE.BLACK Price: Call Us |
| 29 |
165839 |
PLATE.STOP.BAG.HDLE.CRD Price: Call Us |
| 30 |
72140410 |
BOLT.CARRIAGE Price: Call Us |
| 31 |
4497H |
RETAINER M Price: Call Us |
