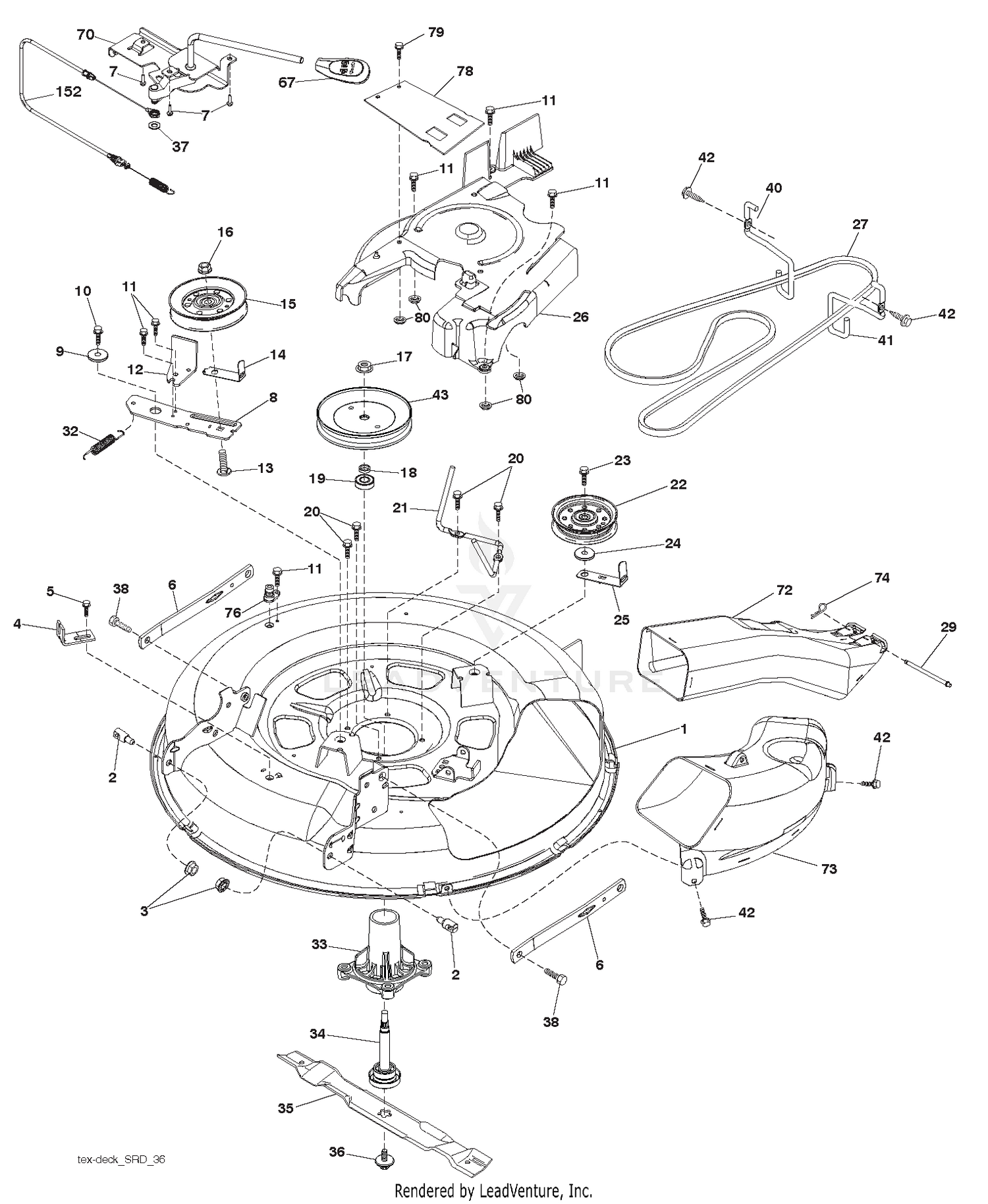

| Ref | Part Number | Description |
|---|
| 1 |
532434487 |
DECK.SVC.WELDMNT.30"419272X418 This part replaces 532442048. Price: $219.99 |
| 1 |
82-8170 |
CLAMP Price: $17.27 |
| 2 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 2 |
93-7960 |
SPACER Price: $5.67 |
| 3 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 3 |
93-7961 |
CLAMP-DRAIN, CASE Price: $12.42 |
| 4 |
532417645 |
BRACKET.CLUTCH.CABLE Price: $4.99 |
| 4 |
60-6700 |
BOLT-HH Price: $1.29 |
| 5 |
817000510 |
BOLT.5/16HEX.WHS.HD Price: $4.99 |
| 5 |
84-2780 |
DECAL - NO STEP Price: $11.39 |
| 5 |
93-6687 |
DECAL-NO STEP This part replaces 36-3400. Price: $14.45 |
| 6 |
532418863 |
ARMS.SUSP.MOWER.REAR.SRD Price: $17.99 |
| 6 |
93-9194 |
LIFT ARM WA - #5 *B Price: $897.89 |
| 7 |
340-92 |
FITTING-STRAIGHT Price: $12.29 |
| 7 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 8 |
237-21 |
O-RING Price: $0.70 |
| 8 |
583379801 |
ARM.IDLER.30"SRD This part replaces 532420252. Price: $7.99 |
| 9 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 9 |
75-5890 |
HOSE Price: $75.32 |
| 10 |
237-78 |
O-RING Price: $3.85 |
| 10 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 11 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 11 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 12 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 532199470. Price: $14.99 |
| 12 |
92-7564 |
HOSE-HYD Price: $84.98 |
| 13 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 13 |
98-8069 |
CYLINDER - HYD 1-5/8 This part replaces 93-7551. Price: $778.75 |
| 14 |
256-172 |
BUSHING Price: $4.57 |
| 14 |
597024901 |
Keepers This part replaces 532156085. Price: $3.99 |
| 15 |
593787801 |
PULLEYS This part replaces 532146763. Price: $27.99 |
| 15 |
94-1430 |
DISCONTINUED Price: Call Us |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 16 |
93-4224 |
SHOCK ABSORBER Price: $143.44 |
| 17 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 17 |
69-8980 |
WASHER Price: $0.58 |
| 18 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 18 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 19 |
3296-51 |
NUT-LOCK, NI Price: $3.23 |
| 19 |
532110485 |
BEARING Price: $11.99 |
| 20 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 20 |
98-3708 |
DISCONTINUED Price: Call Us |
| 21 |
532416910 |
KEEPER.BELT.MANDREL.30" Price: $12.99 |
| 21 |
88-0440 |
DISCONTINUED Price: Call Us |
| 21 |
88-1900 |
DISCONTINUED Price: Call Us |
| 21 |
93-6693 |
DECAL-PLATE, FLOOR Price: $10.84 |
| 22 |
596481401 |
Pulleys This part replaces 532175820. Price: $22.99 |
| 22 |
98-2437-03 |
CARRIER FRAME, WELDED-PAINT This part replaces 98-2437. Price: $1,764.41 |
| 23 |
599972501 |
BOLT This part replaces 817490628. Price: $2.99 |
| 23 |
83-6780 |
PIN-CYLINDER Price: $130.51 |
| 24 |
328-7 |
SCREW-HH Price: $4.00 |
| 24 |
596134901 |
GSPH This part replaces 819132012. Price: $2.99 |
| 25 |
529311701 |
KEEPER, BELT, BLACK This part replaces 532420253. Price: $4.99 |
| 25 |
94-8949 |
BUSHING-FLANGE Price: $2.51 |
| 27 |
532419271 |
V-BELT.DRIVE.MOWER.30" Price: $49.99 |
| 27 |
94-1425 |
BAR - LIFT CENTER WA Price: $214.36 |
| 28 |
82-6490 |
HOSE Price: $83.18 |
| 29 |
593885101 |
Rods This part replaces 532420895. Price: $5.99 |
| 29 |
94-9974 |
RING-RETAINING Price: $0.70 |
| 30 |
94-9998 |
WASHER-THRUST Price: $11.60 |
| 31 |
75-5350 |
PIN-SLIDE, CYLINDER Price: $41.31 |
| 32 |
532401872 |
SPRING RETURN Price: $4.99 |
| 32 |
93-9193 |
DISCONTINUED Price: Call Us |
| 33 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 34 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 34 |
92-8754 |
DISCONTINUED Price: Call Us |
| 35 |
532419274 |
BLADE.MOWER.BAGGING.30" Price: $29.99 |
| 35 |
92-8002 |
SWITCH-LIFT, BACK BIASED Price: $105.67 |
| 36 |
32104-76 |
SCREW-HWHTF Price: $2.29 |
| 36 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 37 |
75-6370 |
CAP-SENSOR Price: $8.87 |
| 38 |
138-6951 |
CYLINDER ASM-HYDRAULIC This part replaces 93-2650. Price: $664.52 |
| 38 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 39 |
106-9208 |
SHORT CYLINDER PIN ASM This part replaces 83-6790. Price: $83.12 |
| 40 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 40 |
532419270 |
KEEPER.BELT.ENGINE.LH.LT.SRD Price: $14.99 |
| 41 |
532419265 |
KEEPER.BELT.ENGINE.RH.LT.SRD Price: $11.99 |
| 41 |
98-3720 |
DISCONTINUED Price: Call Us |
| 42 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 42 |
93-4234 |
SCREW-HSH Price: $6.08 |
| 43 |
525568002 |
PULLEY.MANDREL 6.5" PULLEY This part replaces 532416877. Price: $24.99 |
| 44 |
93-9181 |
KNUCKLE - PIVOT *B Price: $573.32 |
| 45 |
94-8946 |
WASHER-THRUST Price: $1.96 |
| 46 |
99-5610 |
PIN This part replaces 93-9161. Price: $40.16 |
| 47 |
93-7524 |
DISCONTINUED Price: Call Us |
| 48 |
94-8947 |
BUSHING-FLANGE Price: $4.54 |
| 49 |
94-8948 |
BUSHING - STRAIGHT Price: $7.56 |
| 50 |
3290-378 |
TIE-CABLE Price: $0.79 |
| 51 |
92-7565 |
HOSE ASM Price: $89.51 |
| 52 |
92-7562 |
HOSE ASM Price: $71.47 |
| 53 |
2412-96 |
CLAMP-R Price: $3.46 |
| 54 |
322-4 |
SCREW-HH Price: $0.35 |
| 55 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 56 |
33104-060 |
SCREW-HHF Price: $1.02 |
| 57 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 58 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 59 |
98-8811 |
CYLINDER - HYD This part replaces 93-7555. Price: $877.67 |
| 60 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 61 |
3256-42 |
WASHER-FLAT Price: $0.69 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $6.99 |
| 70 |
532401246 |
CLUTCH.ASM.MANUAL.LT.PRED Price: $32.99 |
| 72 |
583364501 |
CHUTE.UPPER.SRD.30R" This part replaces 532417236. Price: $59.99 |
| 73 |
532425274 |
CHUTE.LOWER.SRD.30R" Price: $69.99 |
| 74 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 76 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 78 |
583394901 |
GUARD.DECK.SRD.ARM.CLUTCH This part replaces 532422566. Price: $9.99 |
| 79 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
532423062 |
PALNUT 1/4 Price: $2.99 |
| 152 |
532435111 |
CABLE.CLUTCH.MANUAL. Price: $29.99 |
