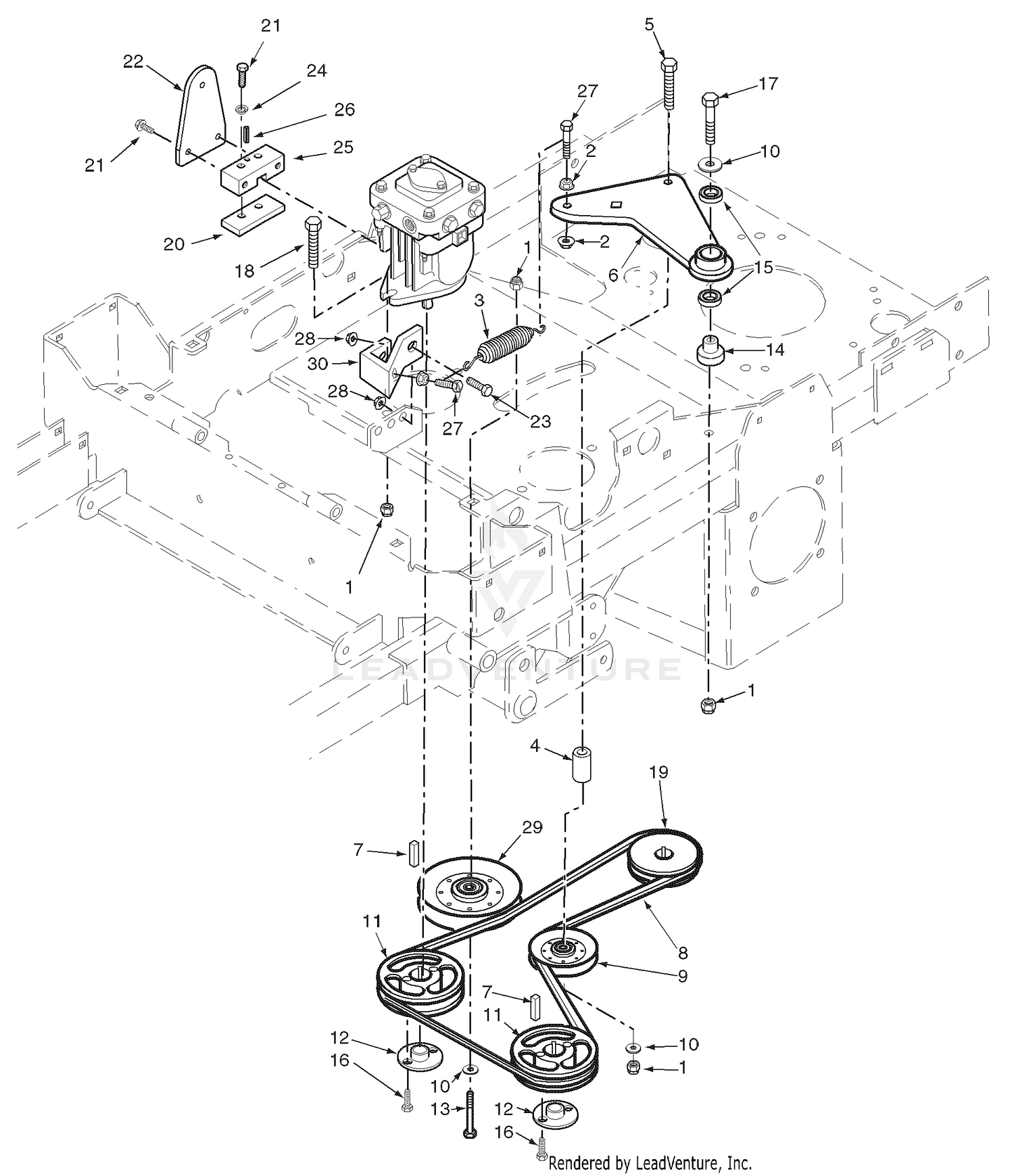

| Ref | Part Number | Description |
|---|
| 1 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 2 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 3 |
483087 |
Spring, Pump Idler Price: Call Us |
| 4 |
43286 |
Spacer Price: Call Us |
| 5 |
04001-22 |
Bolt, Hex Head 3/8-16 x 2-3/4" Price: Call Us |
| 6 |
461603 |
Idler Arm Assy., Pump Drive Price: Call Us |
| 7 |
04063-14 |
Key, 5 x 5 x 25mm Price: Call Us |
| 8 |
483172 |
Belt, Transmission Price: Call Us |
| 9 |
486045 |
Pulley, 3-1/2" Dia. This part replaces 483415. Price: Call Us |
| 10 |
04043-04 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 11 |
482744 |
Pulley, 5.75 OD Taper Bore Price: Call Us |
| 12 |
482085 |
Hub, Tapered, 15mm Bore Price: Call Us |
| 13 |
04001-45 |
Bolt, 3/8-16 x 2" Price: Call Us |
| 14 |
43503 |
Pivot, Idler Price: Call Us |
| 15 |
48224 |
Bearing Price: Call Us |
| 16 |
04001-172 |
Bolt, Hex Head 1/4-20 x 1" Grade 8 Price: Call Us |
| 17 |
04001-31 |
Bolt, Hex Head 3/8-16 x 2-1/2" Price: Call Us |
| 18 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 19 |
483081 |
Pulley, 5.75 Dia. - 1.125" Bore Price: Call Us |
| 20 |
421203 |
Clamp Plate Price: Call Us |
| 21 |
04017-05 |
Hex Head Capscrew, 1/4-20 x 3/4" Price: Call Us |
| 22 |
422969 |
Control Lever, Pump Price: Call Us |
| 23 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 24 |
04030-02 |
Lockwasher, 1/4" Price: Call Us |
| 25 |
48829 |
Block, Pump Control Price: Call Us |
| 26 |
04060-06 |
Roll Pin Price: Call Us |
| 27 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Price: Call Us |
| 28 |
04019-04 |
Nut, Serr. Flange 3/8-16 Price: Call Us |
| 29 |
483215 |
Pulley, 5" Dia. Idler Price: Call Us |
