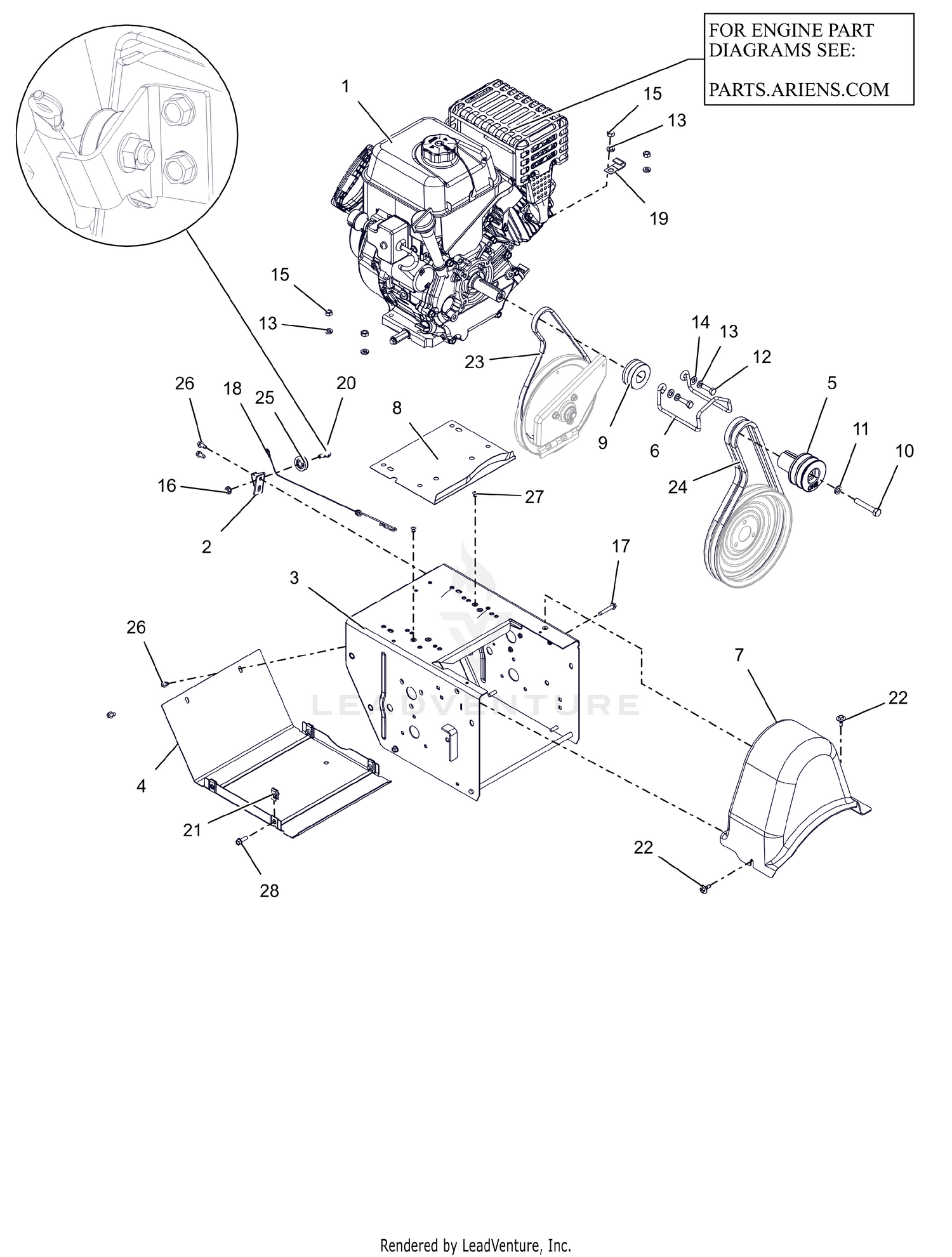

| Ref | Part Number | Description |
|---|
| 1 |
08201337 |
ENGINE, ARIENS AX291 240V/60W Price: Call Us |
| 2 |
00373000 |
BRKT, CABLE PULLEY This part replaces 00373051. Price: $4.45 |
| 3 |
05250559 |
FRAME, MAIN - 14GA DELUXE (ORANGE) Price: $141.95 |
| 4 |
00375159 |
COVER, BOTTOM Price: $74.45 |
| 5 |
04957500 |
SHEAVE,ATTACHMENT-SHO 2 GRV Price: $25.45 |
| 6 |
05273200 |
FINGER, BELT Price: $16.45 |
| 7 |
04989100 |
COVER, BELT-LARGE Price: $19.45 |
| 8 |
04990851 |
BAFFLE, WATER - LARGE BLOCK Price: $14.95 |
| 9 |
07348500 |
SHEAVE, TRACTION (KEYLESS) Price: $22.45 |
| 10 |
05902006 |
BLT, HEX .38-24X2.25 G5 ZCC Price: $3.95 |
| 11 |
06300116 |
WSHR,LK-REG .375X.094 ZCC Price: $0.95 |
| 12 |
05902108 |
BLT, HEX 0.3125-24X1 G5 ZCC Price: $1.95 |
| 13 |
06300123 |
WSHR, LK-HVY .312X.097 ZCC Price: $0.45 |
| 14 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC Price: $0.45 |
| 15 |
06500938 |
NUT, HEX .312-18 ZCC Price: $0.95 |
| 16 |
06500903 |
NUT-LK-TOP-FLG .250-20 GF ZCC Price: $0.95 |
| 17 |
07400140 |
SCR,TAP .25-20X1.50 HWH TR ZCC Price: $3.45 |
| 18 |
06900503 |
CABLE, LOWER TRACTION,SS & PRO Price: $16.45 |
| 19 |
06909400 |
J-CLAMP Price: $3.45 |
| 20 |
07001737 |
BOLT, SHLDR -.375 X .375 X .25-20 Price: $3.45 |
| 21 |
07009000 |
NUT-RTNR .25-20X.56 Price: $0.95 |
| 22 |
07400108 |
SCR-TAP .25-20X.5 CAPTIVE Price: $2.45 |
| 23 |
07200101 |
V-BELT, 3L-WRAPPED Price: $19.45 |
| 24 |
07200608 |
V-BELT, HA-RAW EDGE (SET) Price: $47.95 |
| 25 |
07300012 |
PULLEY, CABLE Price: $4.45 |
| 26 |
07400122 |
SCR-TAP .25-20X.50 HWH ZCC Price: $0.45 |
| 27 |
06800140 |
RVT, POP .1875 ZCC Price: $0.95 |
