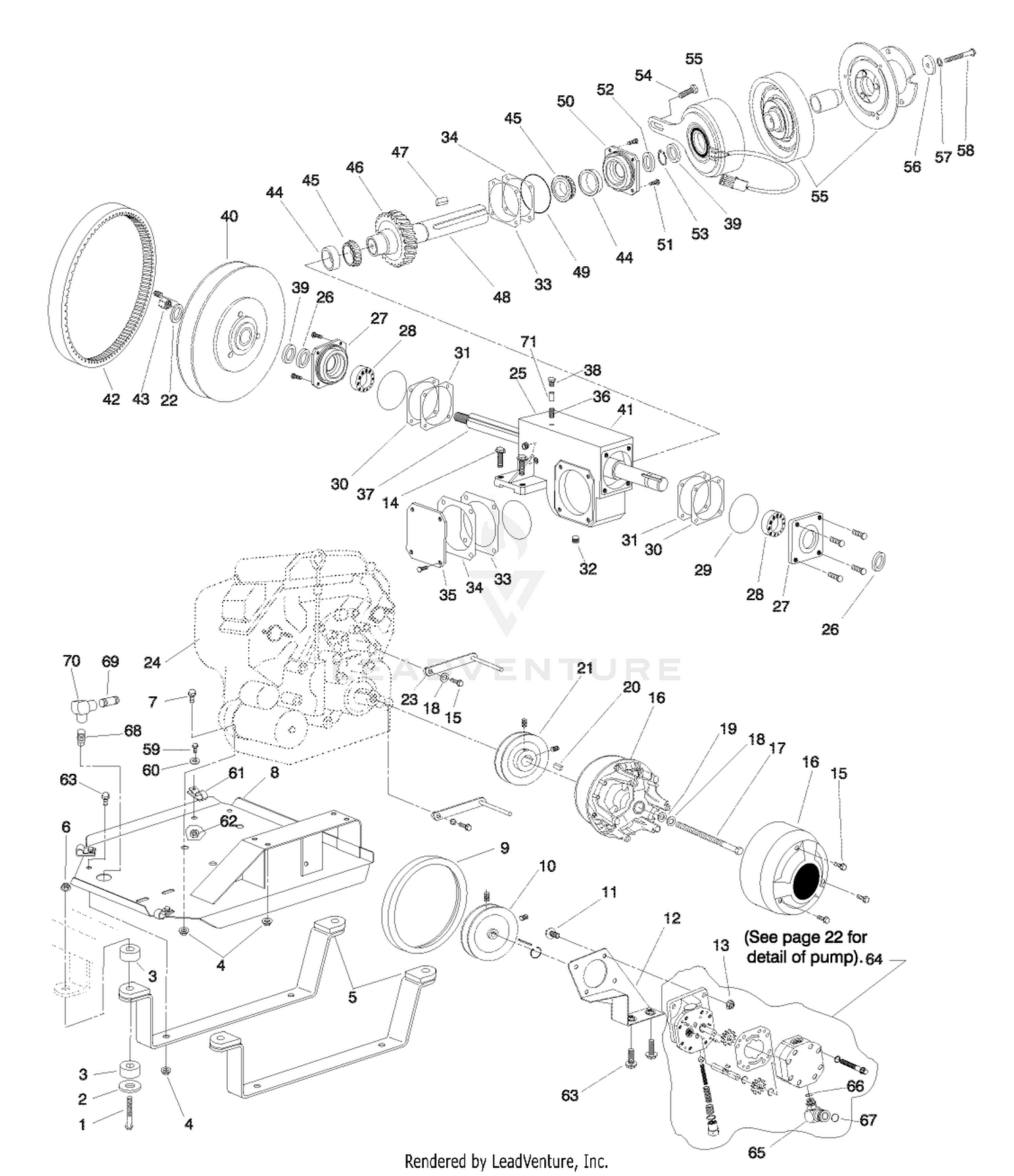

| Ref | Part Number | Description |
|---|
| 1 |
325-11 |
SCREW-HH Price: $1.93 |
| 2 |
41985 |
WASHER-SPECIAL Price: $3.39 |
| 3 |
87-4970 |
ENGINE MOUNT ASM Price: $101.69 |
| 4 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 5 |
100-8377-03 |
STRAP-SUPPORT, ENGINE This part replaces 100-8377. Price: $174.36 |
| 6 |
32128-49 |
NUT-HHF Price: $1.04 |
| 7 |
3234-19 |
SCREW-HHF Price: $1.73 |
| 8 |
100-8357-03 |
PLATE-MOUNTING, ENGINE This part replaces 100-8357. Price: $352.16 |
| 9 |
100-8372 |
BELT-STEERING Price: $37.65 |
| 10 |
100-8371 |
PULLEY-PUMP Price: $94.08 |
| 11 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 12 |
100-8368-03 |
BRACKET-PUMP, STEERING This part replaces 100-8368. Price: $143.02 |
| 13 |
32128-20 |
NUT-HF Price: $0.99 |
| 14 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 15 |
324-5 |
SCREW-HH Price: $0.54 |
| 17 |
3212-16 |
SCREW-HH Price: $1.56 |
| 18 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 19 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 20 |
100-8260 |
KEY-SHAFT Price: $19.58 |
| 21 |
117-5870 |
PULLEY This part replaces 92-0488. Price: $70.12 |
| 22 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 23 |
100-8373 |
BELT GUIDE ASM Price: $132.32 |
| 24 |
117-5807 |
ENGINE-KOHLER, CH640-3046 GAS This part replaces 99-0819. Price: $3,364.11 |
| 25 |
108-3352 |
PUMP DRIVE GEARBOX ASM This part replaces 99-0663. Price: $2,110.86 |
| 26 |
100-6929 |
SEAL Price: $91.59 |
| 27 |
100-6930 |
CAP-OPEN Price: $189.34 |
| 28 |
251-348 |
BEARING-BALL Price: $54.23 |
| 29 |
100-6932 |
O-RING Price: $7.76 |
| 30 |
100-6933 |
SHIM-RED, .002 Price: $2.58 |
| 31 |
100-6934 |
SHIM-BLUE, .005 Price: $6.65 |
| 32 |
281-10 |
PLUG Price: $14.99 |
| 33 |
100-6936 |
SHIM-BLUE, .005 Price: $39.63 |
| 34 |
100-6937 |
SHIM-RED, .002 Price: $5.50 |
| 35 |
100-6938 |
CAP-CLOSED Price: $118.60 |
| 36 |
104-8766 |
NIPPLE Price: $8.29 |
| 37 |
100-6940 |
SHAFT-WORM Price: $1,081.86 |
| 38 |
100-6931 |
BREATHER Price: $44.36 |
| 39 |
100-8390 |
SPACER Price: $8.55 |
| 41 |
108-3352 |
PUMP DRIVE GEARBOX ASM This part replaces 100-6935. Price: $2,110.86 |
| 42 |
108-3654 |
BELT SERVICE ASM This part replaces 99-0735. Price: $127.20 |
| 43 |
100-8486 |
NUT-LOCKING, LH Price: $8.96 |
| 44 |
254-72 |
BEARING-CUP, TAPERED Price: $9.67 |
| 45 |
254-94 |
BEARING-CONE, TAPERED Price: $8.48 |
| 46 |
100-6944 |
GEAR-WORM Price: $762.34 |
| 47 |
92-0049 |
KEY-SQUARE Price: $2.72 |
| 48 |
100-6946 |
SHAFT-OUTPUT Price: $377.99 |
| 49 |
237-161 |
O-RING Price: $6.06 |
| 50 |
100-6948 |
CAP-OPEN Price: $154.13 |
| 51 |
321-3 |
SCREW-HH Price: $0.28 |
| 52 |
104-8764 |
SEAL-VITON Price: $86.09 |
| 53 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 54 |
59-5400 |
BOLT-SHOULDER Price: $50.99 |
| 55 |
100-8290 |
CLUTCH-ELECTRIC, PUMP (DRIVE) Price: $996.45 |
| 56 |
100-8391 |
RETAINER-CLUTCH, ELECTRIC Price: $15.47 |
| 57 |
3253-11 |
DISCONTINUED Price: Call Us |
| 58 |
3211-10 |
SCREW-HH Price: $2.04 |
| 59 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 60 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 61 |
2412-81 |
CLAMP-R Price: $3.39 |
| 62 |
32128-33 |
NUT-HF Price: $0.25 |
| 63 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 64 |
100-8302 |
STEERING PUMP ASM Price: $795.93 |
| 65 |
340-16 |
FITTING-HYD, 90 DEG This part replaces 100-8255. Price: $54.23 |
| 66 |
237-80 |
O-RING Price: $6.10 |
| 67 |
237-177 |
O-RING Price: $2.73 |
| 68 |
42435 |
DISCONTINUED Price: Call Us |
| 69 |
92-3647 |
NIPPLE Price: $5.67 |
| 70 |
95023 |
ELBOW-90 DEG Price: $12.65 |
