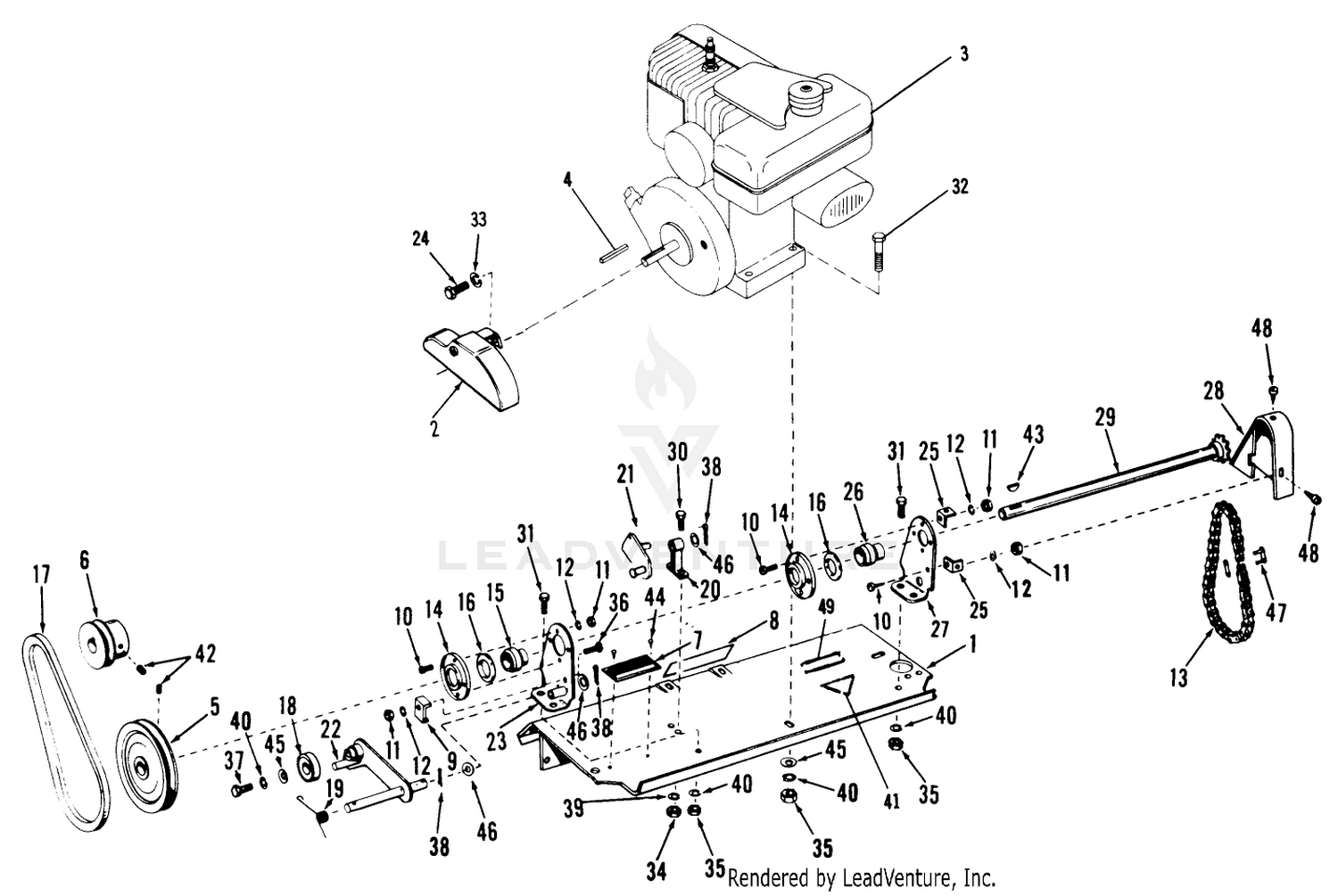

| Ref | Part Number | Description |
|---|
| 1 |
7274 |
Deck Assembly Price: Call Us |
| 2 |
7275 |
RUBBER BOOT Price: $34.71 |
| 3 |
7246 |
Engine Assembly Price: Call Us |
| 4 |
MW-8331 |
Key, Crankshaft Pulley Price: Call Us |
| 5 |
7277 |
Pulley, Cross Shaft Price: Call Us |
| 6 |
7279 |
Pulley, Crankshaft Price: Call Us |
| 8 |
7172 |
MANUAL Price: $2.00 |
| 9 |
7280 |
Clamp, Clutch Cable Price: Call Us |
| 10 |
909017-4 |
Screw-Rd. Hd. #10-24 x 3/8 Price: Call Us |
| 11 |
915538-4 |
Nut #10-24 Price: Call Us |
| 12 |
920152-4 |
Lockwasher, #10 Type 12 Price: Call Us |
| 13 |
7288 |
T96-16G MAIN DRIVE GEAR Price: $830.83 |
| 14 |
7281 |
Cover, Cross Shaft Bearing Price: Call Us |
| 15 |
7282 |
Bearing Cross Shaft, L.H. Price: Call Us |
| 16 |
7283 |
Felt, Oil Retaining Price: Call Us |
| 17 |
7236 |
DISCONTINUED Price: Call Us |
| 18 |
41068 |
COUNTERSHAFT GEAR This part replaces 7284. Price: $1,405.07 |
| 19 |
7285 |
Spring, Belt Tightener Price: Call Us |
| 20 |
7286 |
Bracket, Bell Crank Price: Call Us |
| 21 |
7287 |
Crank, Bell Price: Call Us |
| 22 |
7291 |
Shaft Arm, Clutch Price: Call Us |
| 23 |
7278 |
Cross Shaft Brkt. Assembly Price: Call Us |
| 24 |
908286-4 |
Screw 1/2 20 x 5/8 Price: Call Us |
| 25 |
7297 |
Clip, Upper Chain Guard Price: Call Us |
| 26 |
7290 |
DISCONTINUED Price: Call Us |
| 27 |
7292 |
Bracket, Bearing, Cross Shaft Price: Call Us |
| 28 |
7295 |
Guard, Chain, Upper Price: Call Us |
| 29 |
7289 |
Shaft, Cross w/Sprocket Price: Call Us |
| 30 |
908002-4 |
Bolt-1/4-20 x 5/8 Price: Call Us |
| 31 |
908016-4 |
Bolt Hex 5/16-18 Price: Call Us |
| 32 |
908021-4 |
Bolt 5/16-18 x 1/2 Price: Call Us |
| 33 |
920085-4 |
Lockwasher Price: Call Us |
| 34 |
915111-4 |
Nut 1/4-20 Price: Call Us |
| 35 |
915112-4 |
Nut, 5/16-18 Price: Call Us |
| 36 |
909022-4 |
Screw, #10-24 x 3/4 Rd. Hd. Machine Price: Call Us |
| 37 |
909068-4 |
Bolt-Round Head 5/16-18 x 1/2 Price: Call Us |
| 38 |
932001-4 |
Cotter Pin Price: Call Us |
| 39 |
920081-4 |
Lockwasher Price: Call Us |
| 40 |
920082-4 |
Lockwasher Price: Call Us |
| 41 |
7299 |
Decal, Safety, ASA Price: Call Us |
| 42 |
3246-2 |
SCREW-SET, HSH This part replaces 909862. Price: $0.54 |
| 43 |
937085-1 |
Key, #6 Woodruff Price: Call Us |
| 44 |
926408-4 |
Screw, #2 x 1/4, Type U-Drive Price: Call Us |
| 45 |
7293 |
Washer, 5/16 Burr Price: Call Us |
| 46 |
920009-4 |
Washer Price: Call Us |
| 47 |
7294 |
Link, Master-Drive Chain Price: Call Us |
| 48 |
7296 |
Screw, #10 x 1/2 Truss Hd. Price: Call Us |
