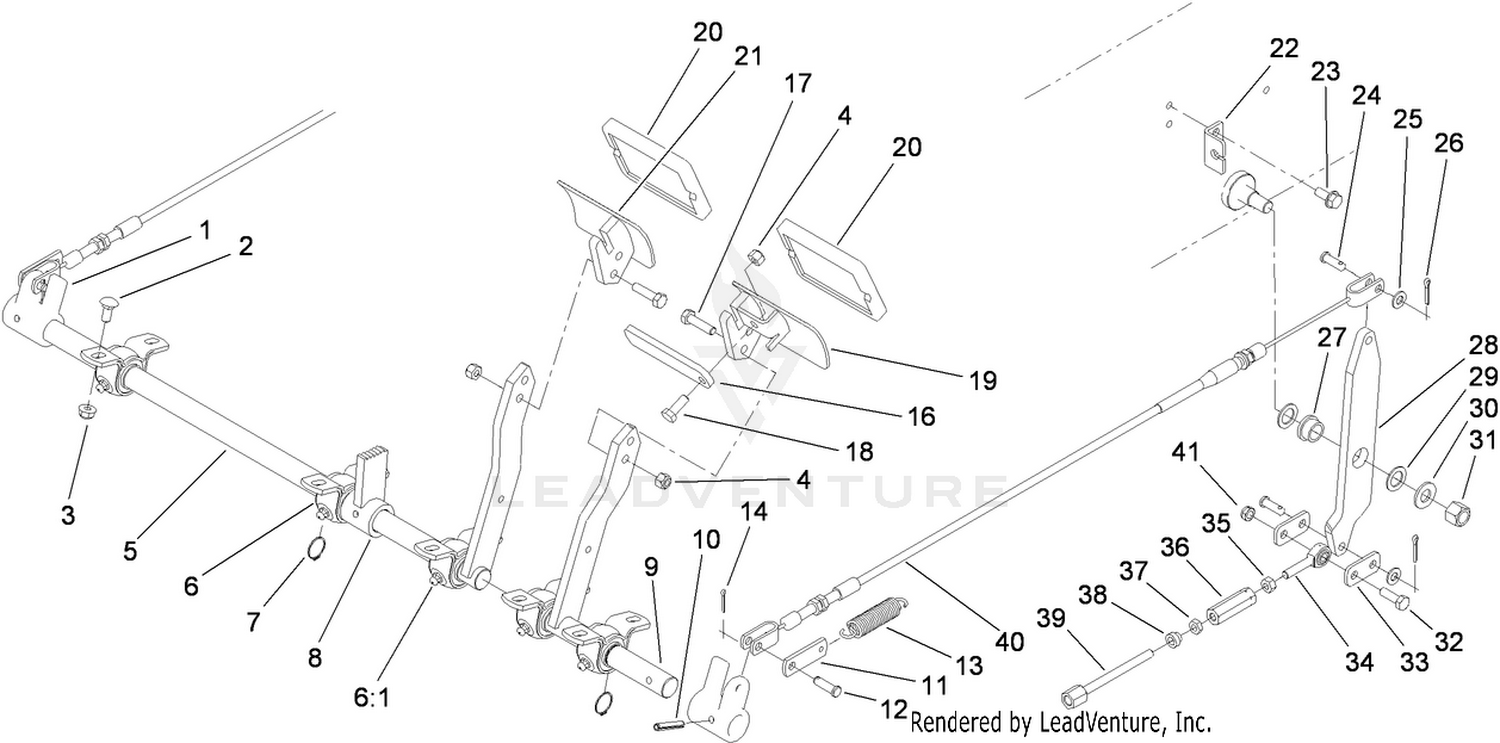

| Ref | Part Number | Description |
|---|
| 1 |
114-2714 |
LEVER-BRAKE Price: $62.42 |
| 2 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 3 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 4 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 5 |
100-3000-03 |
RH BRAKE ARM ASM Price: $158.89 |
| 6 |
93-4849 |
BEARING-BLOCK, PILLOW Price: $24.13 |
| 7 |
32151-83 |
RING-SNAP Price: $0.34 |
| 8 |
93-5475-03 |
BRAKE LATCH ASM Price: $132.94 |
| 9 |
100-2997-03 |
LH BRAKE ARM ASM Price: $166.55 |
| 10 |
32121-15 |
PIN-ROLL Price: $1.60 |
| 11 |
100-5540 |
STRAP-BRAKE Price: $32.46 |
| 12 |
283-61 |
PIN-YOKE Price: $1.56 |
| 13 |
93-5262 |
SPRING-EXTENSION Price: $10.21 |
| 14 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 16 |
93-5568 |
ARM-LOCK Price: $17.77 |
| 17 |
322-6 |
SCREW-HH Price: $0.45 |
| 18 |
322-4 |
SCREW-HH Price: $0.35 |
| 19 |
105-4553-03 |
LH PEDAL ASM Price: $71.10 |
| 20 |
93-8743 |
FOOTPAD-TURN Price: $27.95 |
| 21 |
105-4554-03 |
RH PEDAL ASM Price: $71.10 |
| 22 |
119-0109 |
BRACKET-CABLE Price: $6.63 |
| 23 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 24 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 25 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 26 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 27 |
105-3455 |
BUSHING Price: $2.89 |
| 28 |
119-0105-03 |
LEVER-BRAKE Price: $23.91 |
| 29 |
105-3481 |
WASHER-THRUST Price: $1.19 |
| 30 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 31 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 32 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 33 |
119-0110 |
LINK-BRAKE Price: $3.66 |
| 34 |
2411-53 |
BEARING-ROD END, LH Price: $35.54 |
| 35 |
3220-20 |
NUT-JAM Price: $0.92 |
| 36 |
119-0112 |
HEX-LINK Price: $87.20 |
| 37 |
3220-2 |
NUT-JAM Price: $0.50 |
| 38 |
110-2158 |
SPACER-FLANGED Price: Call Us |
| 39 |
119-0106 |
HEX-LINK Price: $28.30 |
| 40 |
119-0113 |
CABLE-BRAKE Price: $96.85 |
