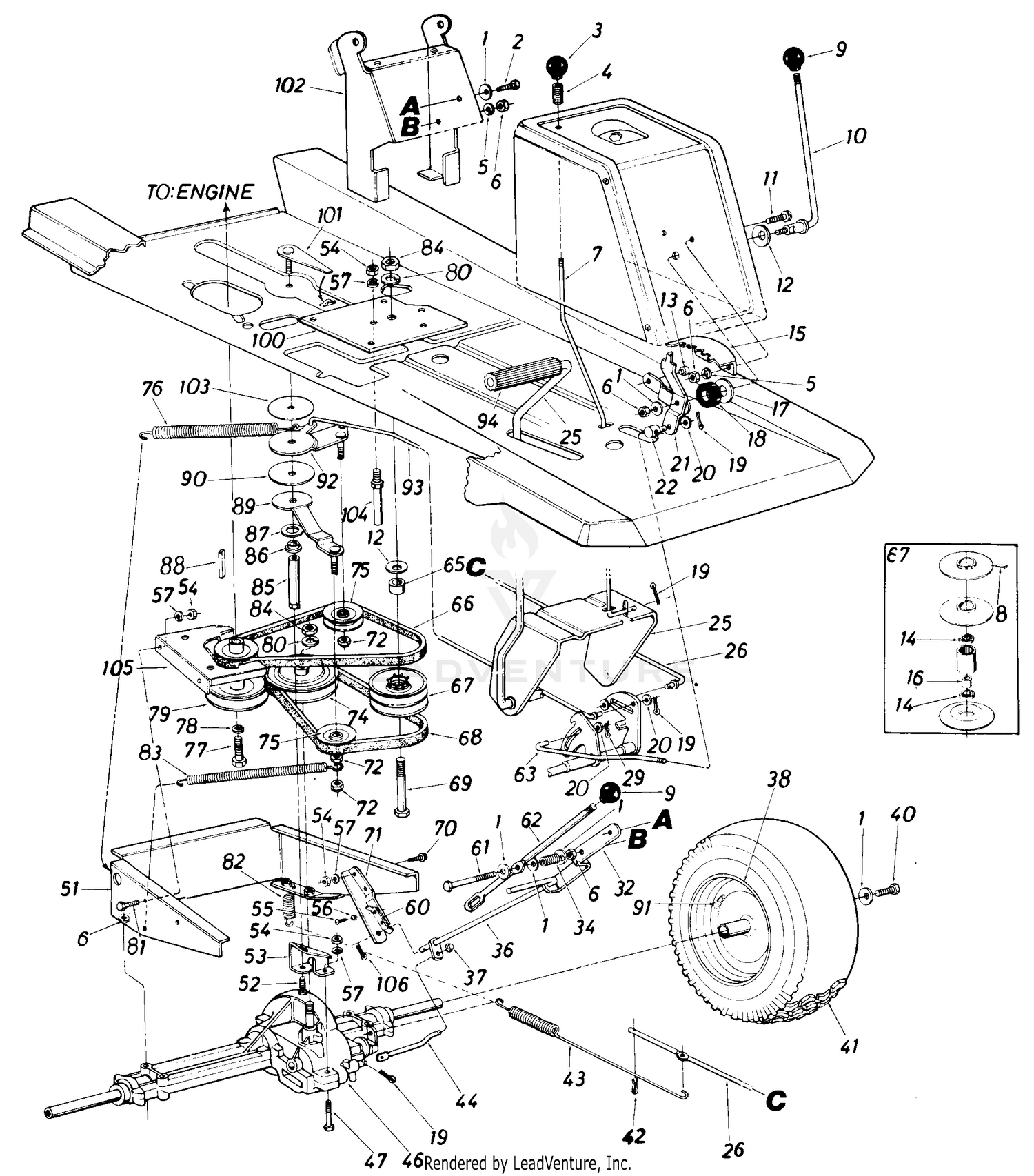

| Ref | Part Number | Description |
|---|
| 1 |
736-0242 |
Bell-Wash. .345" I.D. x .88" O.D. Price: $3.75 |
| 2 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776. Price: $3.86 |
| 3 |
720-0187 |
Ball Knob Not Available Price: |
| 4 |
732-0437 |
Compression Spring Price: $8.93 |
| 5 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 6 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 8 |
715-0124 |
SPRING PIN5/32 x .62 Not Available Price: |
| 9 |
920-0232 |
Knob This part replaces 720-0165. Price: $9.11 |
| 10 |
747-0424 |
LEVER-SPEED CONTROL Not Available Price: |
| 11 |
710-0323 |
Truss Mach. Scr. 5/16-18 x .75" Lg. Price: $4.02 |
| 12 |
736-0253 |
Bell-Wash. .505" I.D. x 1.00" Price: $3.58 |
| 13 |
731-0493 |
CAP Not Available Price: |
| 14 |
741-0139 |
BALL BEARING Not Available Price: |
| 15 |
15581 |
BRACKET-INDEX Not Available Price: |
| 16 |
750-0516 |
SPACER Not Available Price: |
| 18 |
735-0219 |
RUBBER WASH. .50" I.D. x 1.25" O.D. Not Available Price: |
| 19 |
714-0115 |
Cotter Pin 1/8 x 1.00" Lg. Price: $3.48 |
| 20 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 21 |
15582 |
Speed Control Lever Brkt. Ass'y. Price: Call Us |
| 22 |
911-0677 |
Engagement Ferru This part replaces 711-0677. Price: $15.59 |
| 25 |
15562 |
CLUTCH-BRAKE PEDAL ASS'Y. Not Available Price: |
| 26 |
747-0431 |
BRAKE ROD Not Available Price: |
| 29 |
714-0104 |
Intern. Cotter Pin 5/16" Dia. Price: $3.90 |
| 32 |
15659 |
Shift Lever Brkt. Price: Call Us |
| 34 |
932-0369 |
SPRING This part replaces 732-0369. Price: $8.84 |
| 36 |
15637 |
LEVER ASSEMBLY Not Available Price: |
| 37 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 38 |
N/A |
Rear Wheel Rim Only |
| 40 |
710-0627 |
Hex L-Bolt 5/16-24 x .75" Lg. Price: $3.68 |
| 41 |
N/A |
Rear Wheel Ass'y. Comp. |
| 42 |
714-0470 |
Cot-Pin 1/8" Dia. x 1.25 Price: $3.90 |
| 43 |
732-0389 |
EXTENSION SPRING Not Available Price: |
| 44 |
747-0421 |
Shift Rod Price: Call Us |
| 46 |
717-0775 |
KIT-TRANSAXLE Not Available Price: |
| 47 |
710-0136 |
Hex Bolt 1/4-20 x 1.75" Lg. Price: $3.66 |
| 51 |
15552 |
SUPPORT ASSY-TRANS Not Available Price: |
| 52 |
710-0180 |
HEX SCREW 3/8-24 x .75 GR5 Not Available Price: |
| 53 |
15564 |
BRACKET-TORQUE ROD Not Available Price: |
| 54 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 55 |
710-0789 |
C-Sink AB S-Tap Scr. #8 x .50" Price: Call Us |
| 56 |
726-0206 |
Push-ln Nut #10 Price: Call Us |
| 57 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 60 |
732-0420 |
SWITCH SPRING Not Available Price: |
| 61 |
710-0395 |
Hex Bolt 5/16-18 x 2.25" Lg. Price: $4.08 |
| 62 |
747-0430 |
Upper Shift Lever Price: Call Us |
| 65 |
750-0333 |
SPACER Not Available Price: |
| 66 |
954-05040 |
Belt This part replaces 754-0241. Price: $42.39 |
| 67 |
717-0473 |
PULLEY ASSEMBLY-VAR SPEED Not Available Price: |
| 68 |
954-0240 |
V-Belt 5/8 x 38.0" Lg. This part replaces 754-0240. Price: $35.27 |
| 69 |
710-0786 |
SCREW 1/2-13 X4.0 GR5 Not Available Price: |
| 70 |
710-0258 |
Hex Bolt 1/4-20 x .62" Lg. Price: $3.63 |
| 71 |
15624 |
Shift Lever Support Price: Call Us |
| 72 |
712-0116 |
Hex Ins. L-Nut 3/8-24 Thd. Price: $3.95 |
| 74 |
756-0390 |
PULLEY Not Available Price: |
| 75 |
756-04209 |
Idler Pulley This part replaces 756-0116. Price: $20.97 |
| 76 |
932-0556 |
Ext. Spring .94" O.D. x 7.58" This part replaces 732-0436. Price: $20.03 |
| 77 |
710-0314 |
Hex Bolt 7/16-20 x 1.0" Lg. Price: $3.93 |
| 78 |
736-0171 |
L-Wash. 7/16" I.D. Price: $3.86 |
| 79 |
756-0391 |
Engine Pulley Price: $138.10 |
| 80 |
736-0921 |
L-Wash. 1/2" I.D. Price: $3.90 |
| 81 |
710-0352 |
Hex Bolt 1/4-20 x .75" Lg. Price: $4.05 |
| 82 |
932-0303 |
Spring .38" O.D. x 3.18" Lg. This part replaces 732-0303. Price: $8.93 |
| 83 |
732-0308A |
Spring, Extension, .50 Dia. x 6.37 This part replaces 732-0308. Price: $10.50 |
| 84 |
712-0206 |
HEX NUT This part replaces 7120206. Price: $3.90 |
| 85 |
711-0676 |
TORQUE ROD Not Available Price: |
| 86 |
748-0294 |
FLANGE BEARING Not Available Price: |
| 87 |
736-0187 |
Fl-Wash. .640" I.D. x 1.24" Price: $4.02 |
| 88 |
914-0114 |
Sq. Key 1/4" x 1/4" x 2.00" Not Available This part replaces 714-0114. Price: |
| 89 |
15569B |
IDLER BRACKET ASSEMBLY Not Available This part replaces 15569. Price: |
| 90 |
736-0283 |
THRUST WASH. .635" I.D. Not Available Price: |
| 91 |
934-0255 |
TUBELESS VALVE This part replaces 734-0255. Price: $3.83 |
| 92 |
15585 |
BRACKET AS Not Available Price: |
| 93 |
747-0422 |
CLUTCH ROD Not Available Price: |
| 94 |
735-0239A |
FOOT PAD This part replaces 735-0196. Price: $10.76 |
| 100 |
15588 |
Mounting Bracket Variable Speed Pulley Price: Call Us |
| 101 |
15642 |
BRACKET ASSY Not Available Price: |
| 102 |
15897 |
Front Seat Bracket Price: Call Us |
| 103 |
736-0284 |
THRUST WASH. .385" I.D. Not Available Price: |
| 104 |
711-0747 |
BELT GUARD ROD Price: $8.99 |
| 105 |
15623 |
GUARD-ENG BELT-UPR Not Available Price: |
