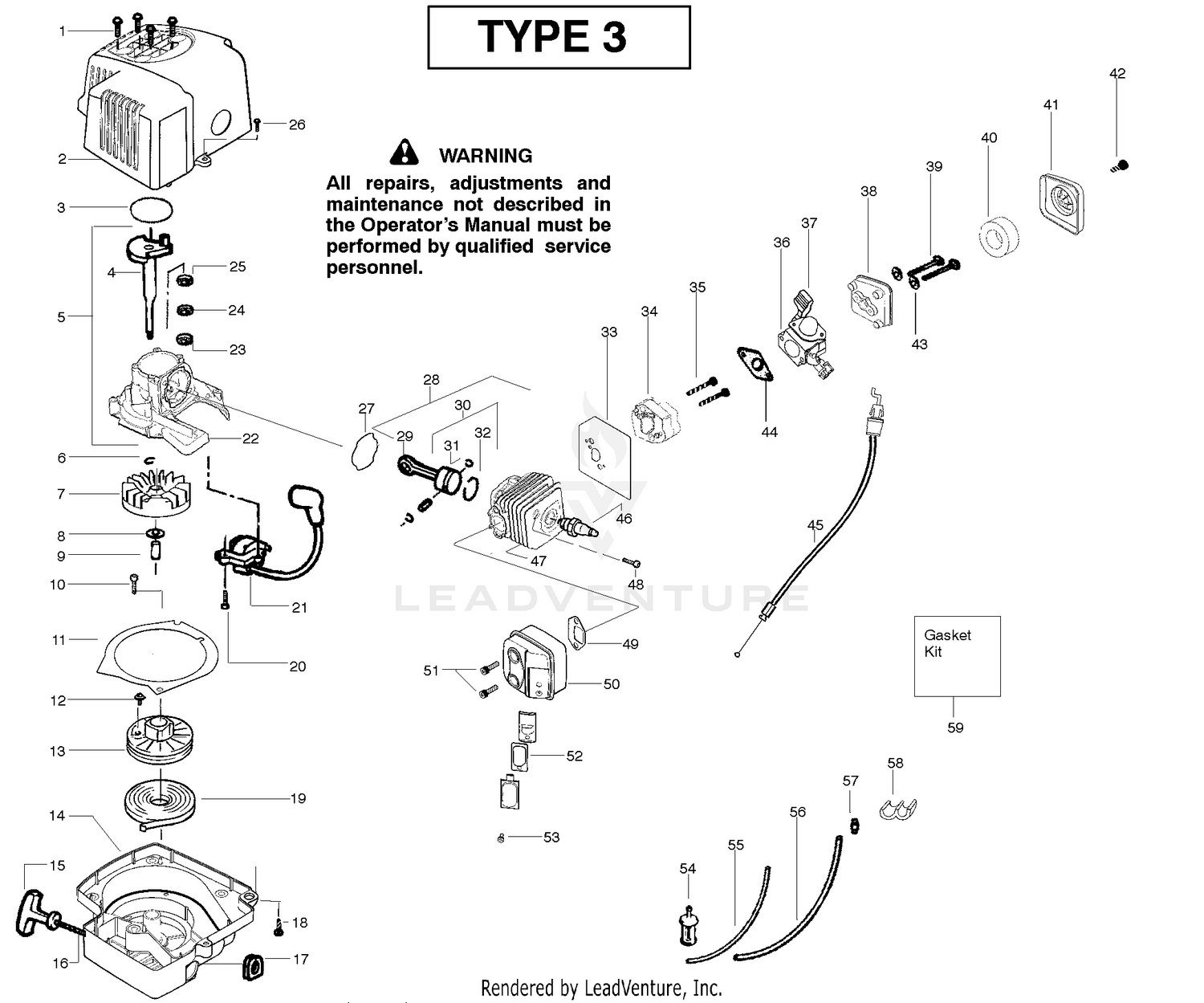

| Ref | Part Number | Description |
|---|
| 1 |
25-4110 |
DISCONTINUED Price: Call Us |
| 1 |
530016386 |
Screw Price: $5.99 |
| 2 |
21-0960 |
DISCONTINUED Price: Call Us |
| 2 |
530058573 |
Assy-Shroud/H'shield Price: $14.99 |
| 3 |
3241-7 |
SCREW-SQH This part replaces 324-12. Price: $3.39 |
| 3 |
530071486 |
O-Ring-C'case (kit) Price: $5.99 |
| 4 |
545145801 |
CRANKSHAFT ASSY This part replaces 530012571. Price: $17.99 |
| 5 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 6 |
5-2942 |
SHACKLE Price: $16.99 |
| 6 |
530015941 |
Ring-Retainer-C'shaft Price: $1.99 |
| 7 |
283-10 |
PIN-CLEVIS Price: $7.43 |
| 7 |
545221701 |
FLYWHEEL ASSY This part replaces 530071487. Price: $8.99 |
| 8 |
32104-82 |
SCREW-HHF Price: $0.95 |
| 8 |
530015828 |
Washer-Flat Price: $1.99 |
| 9 |
3-1365 |
CHAIN This part replaces 21-3160. Price: $72.97 |
| 9 |
530055729 |
Spacer-Flywheel Price: $7.99 |
| 10 |
21-9960 |
DISCONTINUED Price: Call Us |
| 10 |
530015496 |
Screw Price: $1.99 |
| 11 |
3217-7 |
NUT-HEX Price: $0.28 |
| 11 |
530055681 |
Plate-Baffle Price: $2.99 |
| 12 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 12 |
530015882 |
Screw Price: $1.99 |
| 13 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 14 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 14 |
530055762 |
Assy-Fan Housing Price: $14.99 |
| 15 |
3217-8 |
NUT-HEX Price: $1.34 |
| 15 |
530027569 |
Handle-Starter Price: $1.99 |
| 16 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 16 |
530069232 |
Kit-Rope Price: $3.99 |
| 17 |
21-1040 |
DISCONTINUED Price: Call Us |
| 17 |
530019182 |
Grommet-Ignition Module Price: $1.99 |
| 18 |
323-18 |
SCREW-HH Price: $0.82 |
| 18 |
530016386 |
Screw-(f/hsg to shrd) Price: $5.99 |
| 19 |
27-3240 |
DISCONTINUED Price: Call Us |
| 19 |
545008010 |
STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 20 |
3217-9 |
NUT-HH Price: $0.37 |
| 20 |
530016357 |
Screw Price: $1.99 |
| 21 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 21 |
530054137 |
Ignition Module Price: $32.99 |
| 22 |
25-4100 |
DISCONTINUED Price: $73.80 |
| 22 |
530012510 |
Assy-Crankcase Price: $11.99 |
| 23 |
21-0480 |
DISCONTINUED Price: Call Us |
| 23 |
530055728 |
Bearing-Outer Price: $6.99 |
| 24 |
323-7 |
SCREW-HH Price: $0.65 |
| 24 |
530019264 |
Seal-Crankcase Price: $2.99 |
| 25 |
3290-384 |
PIN-LYNCH Price: $18.43 |
| 25 |
530032125 |
Bearing-Inner Price: $11.99 |
| 26 |
3-6783 |
SPACER Price: $41.02 |
| 26 |
530015934 |
Screw Price: $1.99 |
| 27 |
3-6782 |
CASTOR SLINGER Price: $18.91 |
| 27 |
530071486 |
Seal-Cylinder (kit) Price: $5.99 |
| 28 |
94-1291 |
BUSHING This part replaces 28-9290. Price: $10.99 |
| 29 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 29 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 30 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 31 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 31 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 32 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 32 |
75-9680-01 |
FORK-CASTOR This part replaces 29-6260. Price: $151.01 |
| 33 |
3256-44 |
WASHER-FLAT Price: $4.21 |
| 33 |
530071486 |
Gasket-Carb. Adapt.(kit) Price: $5.99 |
| 34 |
21-3850 |
ROLLER BRG W/46-8960 Price: $15.21 |
| 34 |
530057634 |
Adapter-Carburetor Price: $8.99 |
| 35 |
21-3860 |
WHEEL Price: $85.23 |
| 35 |
530016309 |
Screw Price: $1.99 |
| 36 |
21-1030 |
SPANNER BUSHING Price: $17.87 |
| 36 |
530071633 |
Kit-Carburetor Ass'y. (C1U-W13A) Price: $32.99 |
| 37 |
21-3840 |
DISCONTINUED X-REF Price: Call Us |
| 37 |
530071718 |
Kit-Choke Lever Price: $8.99 |
| 38 |
21-3870 |
AXLE ASM Price: $14.07 |
| 38 |
530055680 |
Air Box Price: $2.99 |
| 39 |
3217-5 |
NUT-HEX Price: $0.25 |
| 39 |
530016429 |
Screw Price: $1.99 |
| 40 |
21-3790 |
DISCONTINUE Price: Call Us |
| 40 |
530047932 |
Air Filter Foam Price: $1.99 |
| 41 |
3254-4 |
WASHER-LOCK/INT Price: $0.34 |
| 41 |
530055679 |
Air Filter Cover Price: $1.99 |
| 42 |
3220-5 |
NUT-JAM Price: $0.65 |
| 42 |
530015957 |
Screw Price: $1.99 |
| 43 |
321-3 |
SCREW-HH Price: $0.28 |
| 43 |
530015123 |
Washer This part replaces 530015158. Price: $1.99 |
| 44 |
21-3820 |
DISCONTINUED Price: Call Us |
| 44 |
530071486 |
Gasket-Carburetor(kit) Price: $5.99 |
| 45 |
21-3730 |
DISCONTINUED Price: Call Us |
| 45 |
530058756 |
Assy-Throttle Cable Price: $7.99 |
| 46 |
3233-12 |
DISCONTINUED Price: Call Us |
| 46 |
952030249 |
Spark Plug(RCJ-6Y) Price: $3.99 |
| 47 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 47 |
530012500 |
Cylinder Price: $12.99 |
| 48 |
21-3830 |
DISCONTINUED Price: Call Us |
| 48 |
530015953 |
Screw Price: $1.99 |
| 49 |
21-0970 |
DISCONTINUED Price: Call Us |
| 49 |
530071486 |
Gasket-Muffler (kit) Price: $5.99 |
| 50 |
21-1080 |
DISCONTINUED Price: Call Us |
| 51 |
3231-29 |
SCREW-CARR Price: $0.68 |
| 51 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 52 |
3231-28 |
SCREW-CARR Price: $1.92 |
| 52 |
530071544 |
Kit-Spark Arrestor Price: $6.99 |
| 53 |
21-1070 |
DISCONTINUED Price: Call Us |
| 53 |
530015241 |
Screw Price: $1.99 |
| 54 |
3296-45 |
NUT-HEX Price: $3.79 |
| 54 |
530095992 |
Assy-Pick-up Price: $5.99 |
| 55 |
325-22 |
SCREW-HH This part replaces 325-21. Price: $4.26 |
| 55 |
530069247 |
Kit-Fuel Line(small) Price: $3.99 |
| 56 |
3-0139 |
DISCONTINUED X-REF Price: Call Us |
| 56 |
530069216 |
Kit-Fuel Line(large) Price: $3.99 |
| 57 |
46-6230 |
DISCONTINUED This part replaces 3-6774. Price: Call Us |
| 57 |
530023877 |
Fitting-Fuel Line Price: $1.99 |
| 58 |
3-6776 |
SPACER Price: $9.65 |
| 58 |
530016103 |
Clip-Retainer Price: $1.99 |
| 59 |
3-6775 |
WASHER Price: $1.21 |
| 61 |
3-6777 |
WASHER Price: $1.98 |
| 62 |
3-6778 |
AXLE SLINGER Price: $1.98 |
| 63 |
29-6230 |
DISCONTINUED Price: Call Us |
| 64 |
AU411-864 |
BOLT-CARR This part replaces 3233-15. Price: $4.46 |
| 65 |
27-3160 |
DISCONTINUED Price: Call Us |
| 66 |
3217-6 |
NUT-HEX Price: $1.19 |
| 67 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 68 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 69 |
27-3170 |
DISCONTINUED Price: Call Us |
| 70 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 71 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 72 |
27-3230 |
DISCONTINUED Price: Call Us |
| 73 |
27-3150 |
RH FRONT SHIELD Price: $295.94 |
