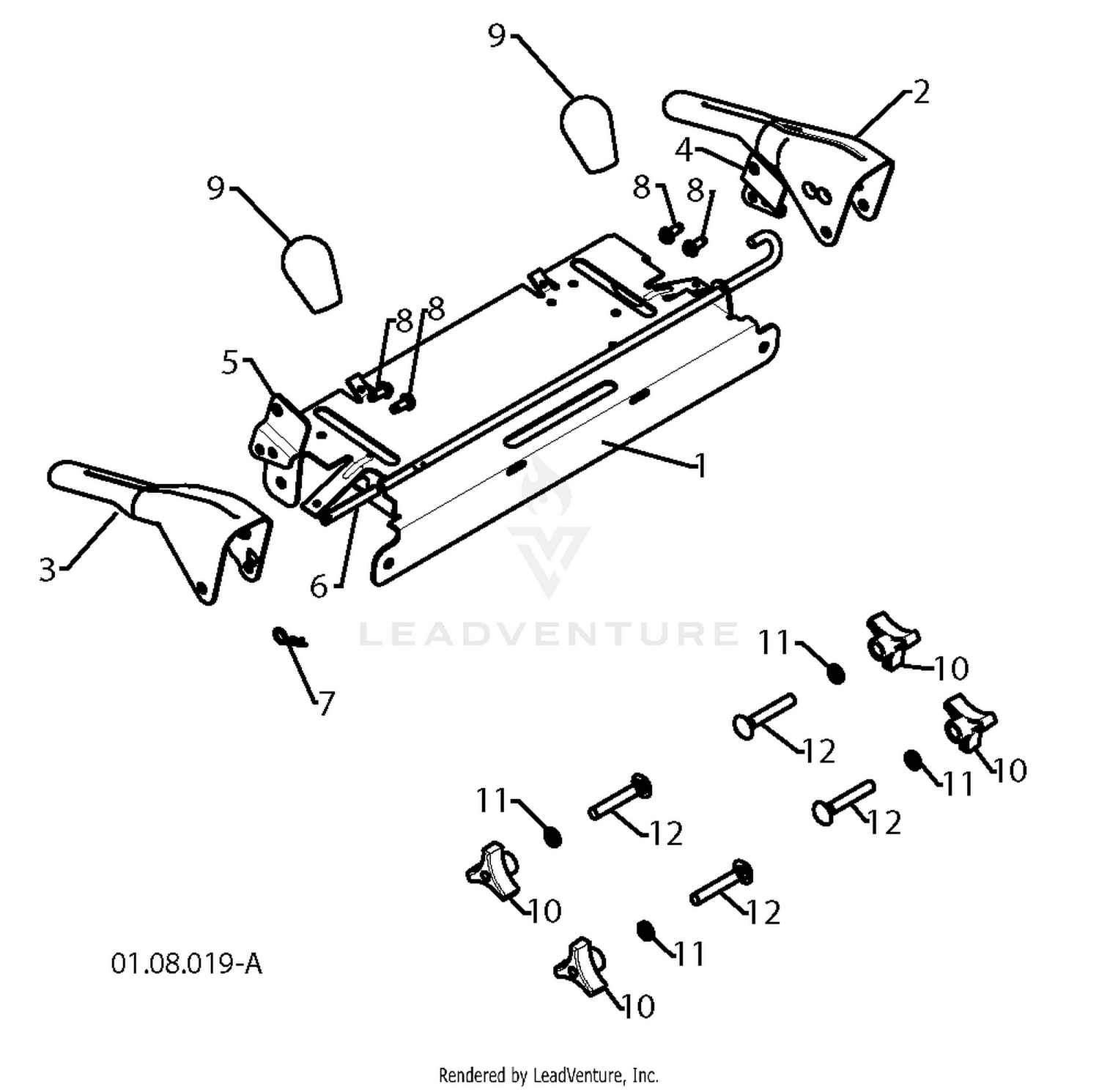

| Ref | Part Number | Description |
|---|
| 1 |
580796702 |
PANEL.CONTROL.SNOW.BLACK Price: $30.99 |
| 1 |
76-6930 |
SHAFT-DRIVE Price: $1,328.23 |
| 2 |
100-2551 |
BACKPLATE This part replaces 94-3000. Price: $842.23 |
| 3 |
94-3001 |
HOUSING ASM Price: $694.21 |
| 4 |
580359002 |
BRACKET.ROD.TRACT.LH.ZINC Price: $2.99 |
| 4 |
76-6910 |
ROTATING KIT Price: $2,143.15 |
| 5 |
580358902 |
BRACKET.ROD.IMP.RH.ZINC Price: $3.99 |
| 5 |
76-6970 |
INSERT-PLATE, CAM Price: $140.84 |
| 6 |
532412677 |
BAIL.CONTROL.INTERLOCK This part replaces 580796801. Price: $12.99 |
| 6 |
76-7010 |
RING-RETAINING Price: $3.66 |
| 7 |
532169675 |
SPRING RETAINER Price: $4.99 |
| 7 |
94-3002 |
SCREW-CAP Price: $7.19 |
| 8 |
76-7020 |
SPACER Price: $23.61 |
| 8 |
817060410 |
SCREW 14-20 X 5/8 Price: $3.99 |
| 9 |
580673201 |
KNOB.OVERMOLD.DS.HUSQVARNA/BLK Price: $19.99 |
| 9 |
76-7000 |
RING-RETAINING Price: $7.46 |
| 10 |
532178899 |
KNOB.HANDLE.3/8.TRI-POINT.BLAC Price: $4.99 |
| 10 |
76-6950 |
RACE-THRUST Price: $25.65 |
| 11 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 11 |
76-6980 |
O-RING Price: $11.28 |
| 12 |
94-3003 |
PLATE-VALVE Price: $515.64 |
