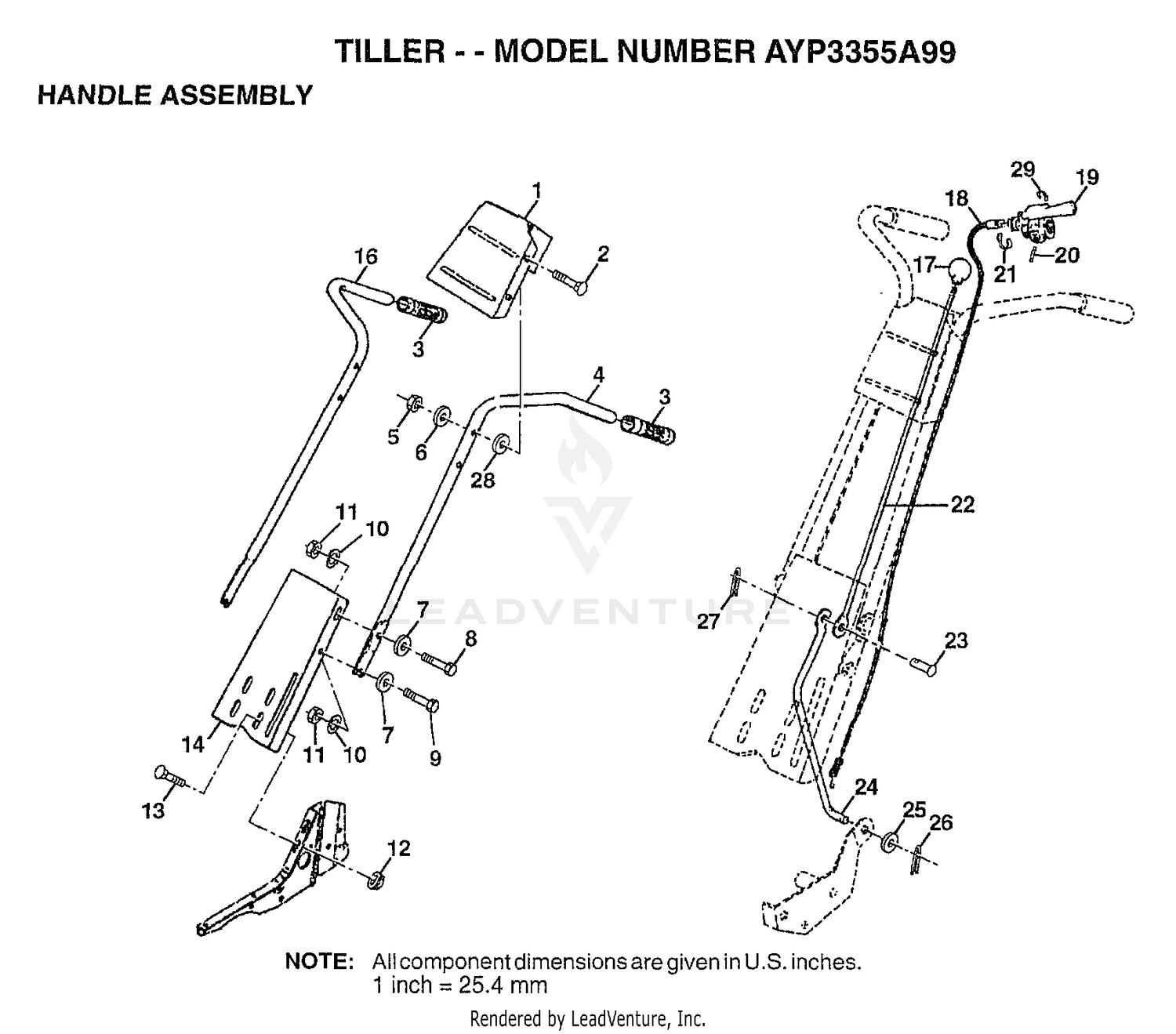

HANDLE ASSEMBLY

HANDLE ASSEMBLY

Parts (35)

RefPart NumberDescription
1 131268X505 HANDLE BRKT Price: Call Us
1 95-7508 SUPPORT-AXLE Price: $931.33
2 72140512 BOLT Price: Call Us
2 95-7506 SUPPORT-AXLE Price: $360.26
3 106-1067 O-RING This part replaces 95-7507. Price: $18.12
3 9266R SUB= 624A78 Price: Call Us
4 166376 HANDLE.LH Price: Call Us
4 95-7537 BUSHING-FLANGED Price: $64.20
5 73680500 SUB= 73690500 Price: Call Us
5 99-7589 PLUG Price: $3.73
6 19111116 WASHER Price: Call Us
6 99-7590 WASHER-SEAL Price: $2.94
7 110-4812 AXLE VENT ASM This part replaces 99-7591. Price: $11.06
7 19121414 WASHER Price: Call Us
8 74760516 SUB= 77394 Price: Call Us
8 99-7592 BOLT Price: $1.44
9 106-1068 O-RING This part replaces 99-7593. Price: $7.27
9 74760512 BOLT Price: Call Us
10 10040500 LOCKWASHER Price: Call Us
11 73220500 NUT.HEX.5/16-18 Price: Call Us
12 98000129 NUT Price: Call Us
13 72140506 BOLT Price: Call Us
14 674A150505 HANDLE PANEL Price: Call Us
16 166377 HANDLE.RH Price: Call Us
17 106932X KNOB T(3/8 HOLE) Price: Call Us
18 166868 CABL.CLUTCH.49.88 Price: Call Us
19 151229 LEVER CONTRL TINE Price: Call Us
21 12000027 E-RING Price: Call Us
22 167692 ROD.REVERSE.UPPER.22 Price: Call Us
23 1778E RIVET.RD.HD.DRILL Price: Call Us
24 2613J REVERSE ROD TI Price: Call Us
25 19131316 WASHER Price: Call Us
26 76020412 COTTER PIN Price: Call Us
27 76020308 SUB= 3145 Price: Call Us
28 19131312 WASHER Price: Call Us
